Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

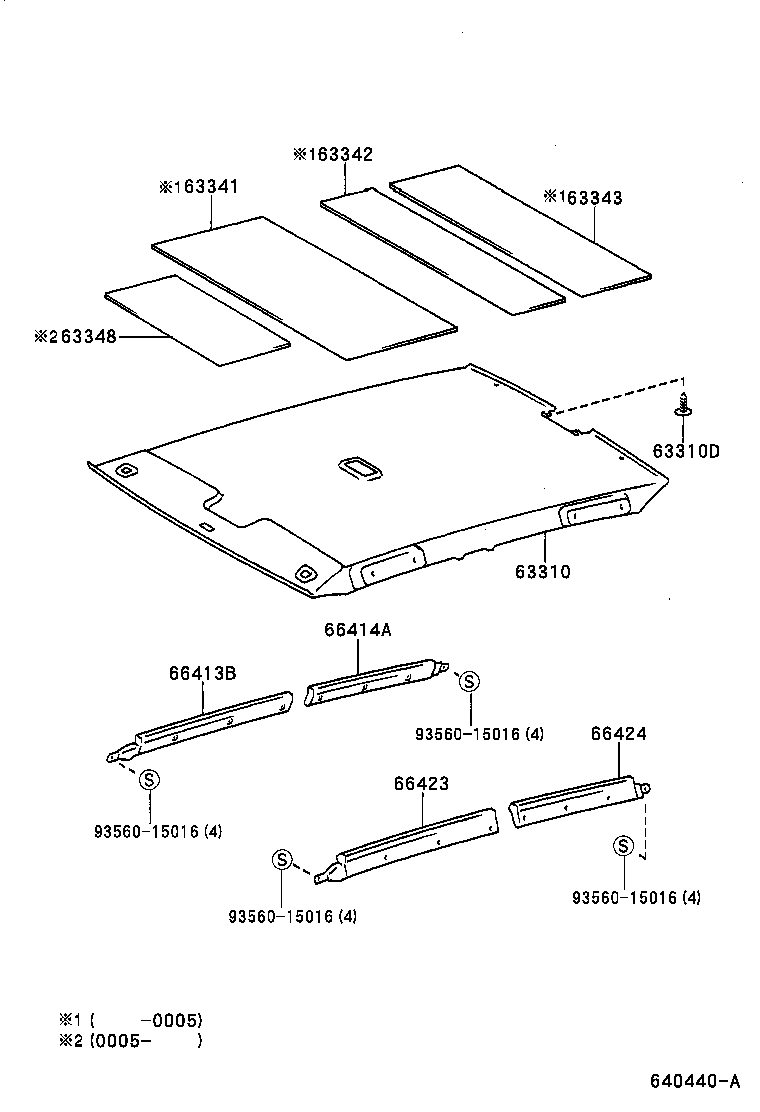

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63310 — Headlining Assy, Roof | ||||
| 63310-47010-B0 note |
Headlining Assy, Roof
1997-12 → 1998-11
ended
|
NHW10 | ¥49,000 | |
| 63310-47010-B0 note |
Headlining Assy, Roof
1998-11 → 2000-05
ended
|
NHW10 | ¥49,000 | |
| 63310-47020-B0 note |
Headlining Assy, Roof
2000-05 → —
|
NHW11 | ¥49,000 | |
| 63310D — Clip, Roof Headlining | ||||
| 90467-05021-B6 note |
Clip, Roof Headlining
2000-05 → —
|
NHW11 | ¥160 | |
| 90467-05021-P3 note |
Clip, Roof Headlining
1997-12 → 1998-11
ended
|
NHW10 | ¥140 | |
| 90467-05021-P3 note |
Clip, Roof Headlining
1998-11 → 2000-05
ended
|
NHW10 | ¥140 | |
| 63341 — Pad, Roof Silencer, NO.1 | ||||
| 63341-47010 |
Pad, Roof Silencer, NO.1
1997-12 → 2000-05
ended
|
NHW10 | ¥4,770 | |
| 63342 — Pad, Roof Silencer, NO.2 | ||||
| 63342-47010 |
Pad, Roof Silencer, NO.2
1997-12 → 2000-05
ended
|
NHW10 | ¥2,920 | |
| 63343 — Pad, Roof Silencer, NO.3 | ||||
| 63343-47010 |
Pad, Roof Silencer, NO.3
1997-12 → 2000-05
ended
|
NHW10 | ¥3,600 | |
| 63348 — Pad, Roof Silencer, NO.8 | ||||
| 63348-47010 |
Pad, Roof Silencer, NO.8
2000-05 → —
|
NHW11 | ¥5,800 | |
| 66413B — Spacer, Side Rail, Front RH | ||||
| 66413-47010 |
Spacer, Side Rail, Front RH
1997-12 → —
|
NHW1# | ¥2,060 | |
| 66414A — Spacer, Side Rail, Rear RH | ||||
| 66414-47010 |
Spacer, Side Rail, Rear RH
1997-12 → —
|
NHW1# | ¥1,750 | |
| 66423 — Spacer, Side Rail, Front LH | ||||
| 66423-47010 |
Spacer, Side Rail, Front LH
1997-12 → —
|
NHW1# | ¥2,060 | |
| 66424 — Spacer, Side Rail, Rear LH | ||||
| 66424-47010 |
Spacer, Side Rail, Rear LH
1997-12 → —
|
NHW1# | ¥1,750 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
