Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

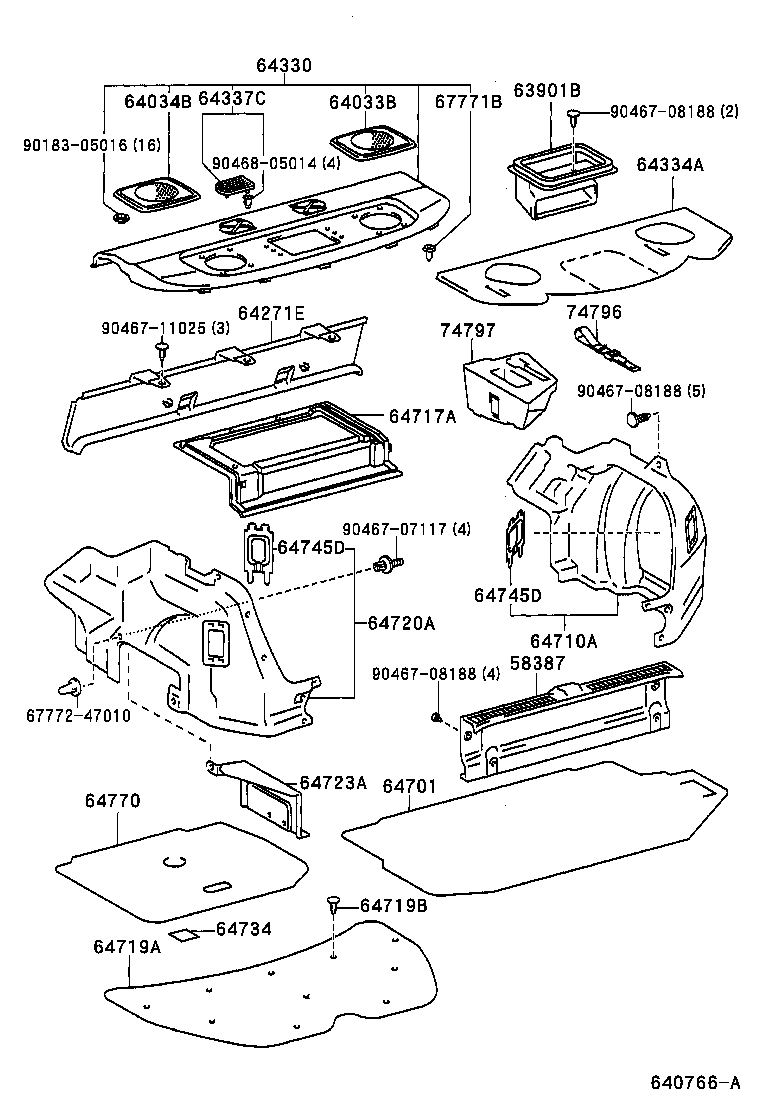

Exploded illustration 640766A 64330 — PANEL ASSY, PACKAGE TRAY TRIM (4 parts) 63901B — DUCT, VENTILATOR (2 parts) 64337C — GARNISH, PACKAGE TRAY TRIM (4 parts) 64034B — GRILLE SUB-ASSY, REAR SPEAKER, LH (3 parts) 64033B — GRILLE SUB-ASSY, REAR SPEAKER, RH (3 parts) 67771B — RETAINER, PACKAGE TRAY TRIM (1 parts) 9046708188 — not listed in this catalogue 9018305016 — not listed in this catalogue 9046805014 — not listed in this catalogue 64334A — PAD, PACKAGE TRAY TRIM (1 parts) 74796 — HOLDER, WARNING REFLECTOR (1 parts) 64271E — PANEL, ROOM PARTITION (1 parts) 9046711025 — not listed in this catalogue 74797 — BOX, WARNING REFLECTOR (1 parts) 9046708188 — not listed in this catalogue 64717A — COVER, LUGGAGE COMPARTMENT TRIM, FRONT (2 parts) 9046707117 — not listed in this catalogue 64745D — COVER, REAR COMBINATION LAMP SERVICE, RH (3 parts) 64745D — COVER, REAR COMBINATION LAMP SERVICE, RH (3 parts) 64720A — COVER ASSY, LUGGAGE COMPARTMENT TRIM, LH (3 parts) 64710A — COVER ASSY, LUGGAGE COMPARTMENT TRIM, RH (3 parts) 58387 — PLATE, REAR FLOOR FINISH (3 parts) 9046708188 — not listed in this catalogue 6777247010 — not listed in this catalogue 64723A — COVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER (3 parts) 64701 — MAT SUB-ASSY, LUGGAGE COMPARTMENT (3 parts) 64770 — COVER ASSY, SPARE WHEEL (4 parts) 64719B — CLIP(FOR LUGGAGE COMPARTMENT DOOR) (1 parts) 64734 — INSULATOR, LUGGAGE COMPARTMENT FLOOR, NO.2 (1 parts) 64719A — COVER, LUGGAGE COMPARTMENT DOOR (3 parts)
640766A · 22 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
58387 — Plate, Rear Floor Finish
58387-47010-B0 note Plate, Rear Floor Finish
1998-11 → 2000-05 ended
NHW10 ¥6,100
58387-47010-B0 note Plate, Rear Floor Finish
1997-12 → 1998-11 ended
NHW10 ¥6,100
58387-47010-B0 note Plate, Rear Floor Finish
2000-05 → —
NHW11 ¥6,100
63901B — Duct, Ventilator
63901-47010 Duct, Ventilator
1997-12 → 2000-05 ended
NHW10 ¥2,460
63901-47020 Duct, Ventilator
2000-05 → —
NHW11 ¥2,460
64033B — Grille Sub-assy, Rear Speaker, RH
64383-16040-B2 note Grille Sub-assy, Rear Speaker, RH
1997-12 → 1998-11 ended
NHW10 ¥1,140
64383-16040-B2 note Grille Sub-assy, Rear Speaker, RH
1998-11 → 2000-05 ended
NHW10 ¥1,140
64383-16040-B2 note Grille Sub-assy, Rear Speaker, RH
2000-05 → —
NHW11 ¥1,140
64034B — Grille Sub-assy, Rear Speaker, LH
64383-16040-B2 note Grille Sub-assy, Rear Speaker, LH
1997-12 → 1998-11 ended
NHW10 ¥1,140
64383-16040-B2 note Grille Sub-assy, Rear Speaker, LH
1998-11 → 2000-05 ended
NHW10 ¥1,140
64383-16040-B2 note Grille Sub-assy, Rear Speaker, LH
2000-05 → —
NHW11 ¥1,140
64271E — Panel, Room Partition
64271-47010-B0 note Panel, Room Partition
2000-05 → —
NHW11 ¥6,100
64330 — Panel Assy, Package Tray Trim
64330-47010-B0 note Panel Assy, Package Tray Trim
1997-12 → 1998-11 ended
NHW10 ¥12,100
64330-47011-B0 note Panel Assy, Package Tray Trim
1998-11 → 2000-01 ended
NHW10 ¥12,100
64330-47012-B0 note Panel Assy, Package Tray Trim
2000-01 → 2000-05 ended
NHW10 ¥12,100
64330-47020-B0 note Panel Assy, Package Tray Trim
2000-05 → —
NHW11 ¥12,100
64334A — Pad, Package Tray Trim
64334-47010 Pad, Package Tray Trim
1997-12 → —
NHW1# ¥990
64337C — Garnish, Package Tray Trim
64337-47010-B0 note Garnish, Package Tray Trim
1997-12 → 1998-11 ended
NHW10 ¥1,160
64337-47011-B0 note Garnish, Package Tray Trim
1998-11 → 2000-01 ended
NHW10 ¥1,160
64337-47012-B0 note Garnish, Package Tray Trim
2000-01 → 2000-05 ended
NHW10 ¥1,180
64337-47012-B0 note Garnish, Package Tray Trim
2000-05 → —
NHW11 ¥1,180
64701 — Mat Sub-assy, Luggage Compartment
64711-47010-B0 note Mat Sub-assy, Luggage Compartment
1997-12 → 1998-11 ended
NHW10 ¥7,800
64711-47010-B0 note Mat Sub-assy, Luggage Compartment
1998-11 → 2000-05 ended
NHW10 ¥7,800
64711-47020-B0 note Mat Sub-assy, Luggage Compartment
2000-05 → —
NHW11 ¥9,900
64710A — Cover Assy, Luggage Compartment Trim, RH
64710-47010-B0 note Cover Assy, Luggage Compartment Trim, RH
1998-11 → 2000-05 ended
NHW10 ¥4,130
64710-47010-B0 note Cover Assy, Luggage Compartment Trim, RH
1997-12 → 1998-11 ended
NHW10 ¥4,130
64710-47020-B0 note Cover Assy, Luggage Compartment Trim, RH
2000-05 → —
NHW11 ¥5,200
64717A — Cover, Luggage Compartment Trim, Front
64717-47010 Cover, Luggage Compartment Trim, Front
1997-12 → 2000-05 ended
NHW10 ¥12,600
64717-47020-B0 note Cover, Luggage Compartment Trim, Front
2000-05 → —
NHW11 ¥4,130
64719A — Cover, Luggage Compartment Door
64719-47010-B0 note Cover, Luggage Compartment Door
1997-12 → 1998-11 ended
NHW10 ¥8,100
64719-47010-B0 note Cover, Luggage Compartment Door
1998-11 → 2000-05 ended
NHW10 ¥8,100
64719-47010-B0 note Cover, Luggage Compartment Door
2000-05 → —
NHW11 ¥8,100
64719B — Clip(FOR LUGGAGE COMPARTMENT DOOR)
90467-08188 Clip(FOR LUGGAGE COMPARTMENT DOOR)
1997-12 → —
NHW1# ¥80
64720A — Cover Assy, Luggage Compartment Trim, LH
64720-47010-B0 note Cover Assy, Luggage Compartment Trim, LH
1997-12 → 1998-11 ended
NHW10 ¥4,130
64720-47010-B0 note Cover Assy, Luggage Compartment Trim, LH
1998-11 → 2000-05 ended
NHW10 ¥4,130
64720-47020-B0 note Cover Assy, Luggage Compartment Trim, LH
2000-05 → —
NHW11 ¥5,200
64723A — Cover, Luggage Compartment Trim, Inner Lower
64723-47010-B0 note Cover, Luggage Compartment Trim, Inner Lower
1998-11 → 2000-05 ended
NHW10 ¥4,810
64723-47010-B0 note Cover, Luggage Compartment Trim, Inner Lower
2000-05 → —
NHW11 ¥4,810
64723-47010-B0 note Cover, Luggage Compartment Trim, Inner Lower
1997-12 → 1998-11 ended
NHW10 ¥4,810
64734 — Insulator, Luggage Compartment Floor, NO.2
64734-47010 Insulator, Luggage Compartment Floor, NO.2
1997-12 → —
NHW1# ¥370
64745D — Cover, Rear Combination Lamp Service, RH
64745-47010-B0 note Cover, Rear Combination Lamp Service, RH
1997-12 → 1998-11 ended
NHW10 ¥760
64745-47010-B0 note Cover, Rear Combination Lamp Service, RH
1998-11 → 2000-05 ended
NHW10 ¥760
64745-47010-B0 note Cover, Rear Combination Lamp Service, RH
2000-05 → —
NHW11 ¥760
64770 — Cover Assy, Spare Wheel
64770-47010 note Cover Assy, Spare Wheel
1997-12 → 2000-05 ended
NHW10 ¥7,800
64770-47020 note Cover Assy, Spare Wheel
1997-12 → 2000-05 ended
NHW10 ¥3,440
64770-47030 note Cover Assy, Spare Wheel
2000-05 → —
NHW11 ¥7,900
64770-47040 note Cover Assy, Spare Wheel
2000-05 → —
NHW11 ¥3,440
67771B — Retainer, Package Tray Trim
67771-16080 Retainer, Package Tray Trim
1997-12 → —
NHW1# ¥160
74796 — Holder, Warning Reflector
74796-47010 Holder, Warning Reflector
2000-05 → —
NHW11 ¥1,200
74797 — Box, Warning Reflector
74797-47010 Box, Warning Reflector
2000-05 → —
NHW11 ¥3,480
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
