Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

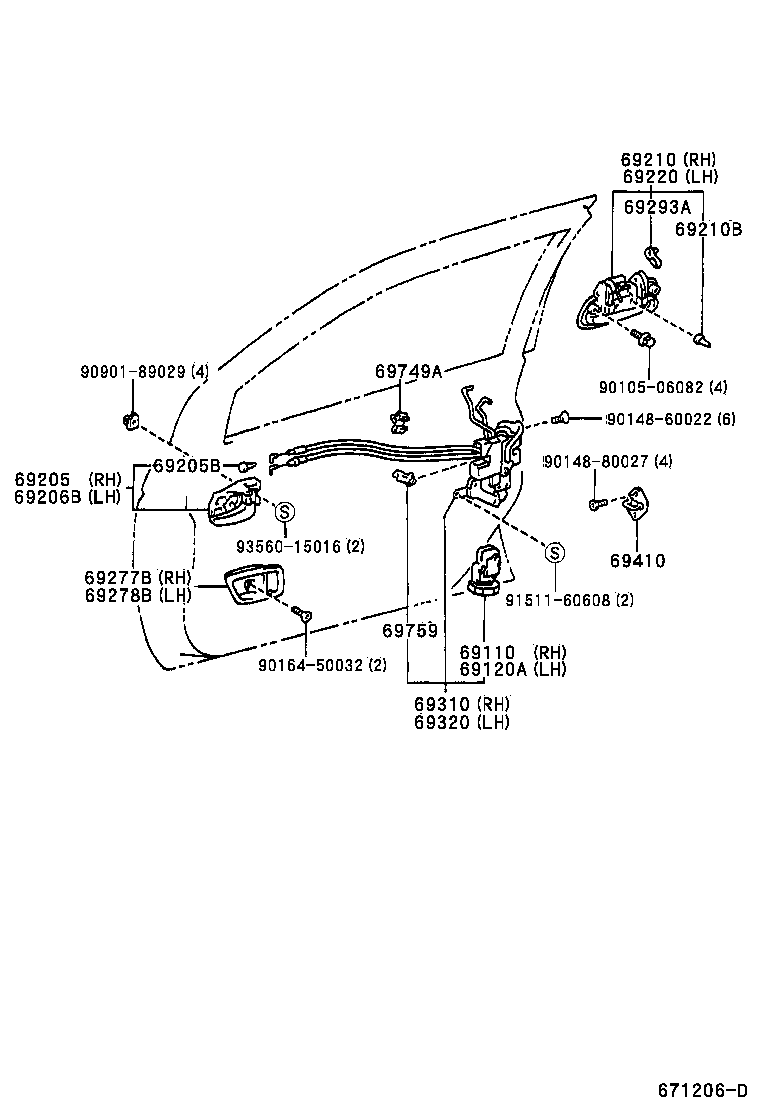

Exploded illustration 671206D 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (18 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (18 parts) 69293A — SNAP, FRONT DOOR OUTSIDE HANDLE (2 parts) 69210B — CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) (1 parts) 69749A — CLAMP, FRONT DOOR LOCK LINK, NO.1 (1 parts) 9090189029 — not listed in this catalogue 9010506082 — not listed in this catalogue 9014860022 — not listed in this catalogue 9014880027 — not listed in this catalogue 69205B — CUSHION(FOR FRONT DOOR INSIDE HANDLE) (1 parts) 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (3 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (3 parts) 9356015016 — not listed in this catalogue 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (1 parts) 69277B — BEZEL, FRONT DOOR INSIDE HANDLE, RH (3 parts) 69278B — BEZEL, FRONT DOOR INSIDE HANDLE, LH (3 parts) 9151160608 — not listed in this catalogue 69759 — SNAP, DOOR LOCK CONTROL LINK, NO.1 (2 parts) 69110 — ACTUATOR ASSY, FRONT DOOR LOCK, RH (1 parts) 9016450032 — not listed in this catalogue 69120A — ACTUATOR ASSY, FRONT DOOR LOCK, LH (1 parts) 69310 — LOCK ASSY, FRONT DOOR, RH (2 parts) 69320 — LOCK ASSY, FRONT DOOR, LH (2 parts)
671206D · 16 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
69110 — Actuator Assy, Front Door Lock, RH
69110-30010 Actuator Assy, Front Door Lock, RH
1997-12 → —
NHW1# ¥9,000
69120A — Actuator Assy, Front Door Lock, LH
69120-47010 Actuator Assy, Front Door Lock, LH
1997-12 → —
NHW1# ¥9,100
69205 — Handle Sub-assy, Front Door Inside, RH
69205-47010-B0 note Handle Sub-assy, Front Door Inside, RH
1997-12 → 1998-11 ended
NHW10 ¥3,040
69205-47010-B0 note Handle Sub-assy, Front Door Inside, RH
1998-11 → 2000-05 ended
NHW10 ¥3,040
69205-47010-B0 note Handle Sub-assy, Front Door Inside, RH
2000-05 → —
NHW11 ¥3,040
69205B — Cushion(FOR FRONT DOOR INSIDE HANDLE)
90541-04014 Cushion(FOR FRONT DOOR INSIDE HANDLE)
1997-12 → —
NHW1# ¥100
69206B — Handle Sub-assy, Front Door Inside, LH
69206-47010-B0 note Handle Sub-assy, Front Door Inside, LH
1997-12 → 1998-11 ended
NHW10 ¥3,040
69206-47010-B0 note Handle Sub-assy, Front Door Inside, LH
1998-11 → 2000-05 ended
NHW10 ¥3,040
69206-47010-B0 note Handle Sub-assy, Front Door Inside, LH
2000-05 → —
NHW11 ¥3,040
69210 — Handle Assy, Front Door, Outside RH
69210-47010-A0 note Handle Assy, Front Door, Outside RH
1997-12 → 2000-05 ended
NHW10 ¥6,600
69210-47010-A1 note Handle Assy, Front Door, Outside RH
1998-11 → 2000-05 ended
NHW10 ¥6,600
69210-47010-B0 note Handle Assy, Front Door, Outside RH
1999-11 → 2000-05 ended
NHW10 ¥6,600
69210-47010-D0 note Handle Assy, Front Door, Outside RH
1997-12 → 1999-01 ended
NHW10 ¥6,600
69210-47010-G1 note Handle Assy, Front Door, Outside RH
1997-12 → 2000-05 ended
NHW10 ¥6,600
69210-47010-H0 note Handle Assy, Front Door, Outside RH
1997-12 → 2000-05 ended
NHW10 ¥6,600
69210-47010-J0 note Handle Assy, Front Door, Outside RH
1997-12 → 2000-05 ended
NHW10 ¥6,600
69210-47010-K0 note Handle Assy, Front Door, Outside RH
1997-12 → 2000-05 ended
NHW10 ¥6,600
69210-47020-A0 note Handle Assy, Front Door, Outside RH
2000-05 → —
NHW11 ¥6,600
69210-47020-A1 note Handle Assy, Front Door, Outside RH
2000-05 → —
NHW11 ¥6,600
69210-47020-B0 note Handle Assy, Front Door, Outside RH
2000-05 → —
NHW11 ¥6,600
69210-47020-C0 note Handle Assy, Front Door, Outside RH
2001-09 → —
NHW11 ¥6,600
69210-47020-D0 note Handle Assy, Front Door, Outside RH
2000-12 → 2001-12 ended
NHW11 S ¥6,600
69210-47020-D0 note Handle Assy, Front Door, Outside RH
2001-08 → —
NHW11 ¥6,600
69210-47020-G0 note Handle Assy, Front Door, Outside RH
2000-05 → —
NHW11 ¥6,600
69210-47020-H0 note Handle Assy, Front Door, Outside RH
2000-05 → —
NHW11 ¥6,600
69210-47020-J0 note Handle Assy, Front Door, Outside RH
2000-05 → —
NHW11 ¥6,600
69210-47020-J1 note Handle Assy, Front Door, Outside RH
2000-05 → —
NHW11 ¥6,600
69210B — Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04018 Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
1997-12 → —
NHW1# ¥160
69220 — Handle Assy, Front Door Outside, LH
69220-47010-A0 note Handle Assy, Front Door Outside, LH
1997-12 → 2000-05 ended
NHW10 ¥6,600
69220-47010-A1 note Handle Assy, Front Door Outside, LH
1998-11 → 2000-05 ended
NHW10 ¥6,600
69220-47010-B0 note Handle Assy, Front Door Outside, LH
1999-11 → 2000-05 ended
NHW10 ¥6,600
69220-47010-D0 note Handle Assy, Front Door Outside, LH
1997-12 → 1999-01 ended
NHW10 ¥6,600
69220-47010-G1 note Handle Assy, Front Door Outside, LH
1997-12 → 2000-05 ended
NHW10 ¥6,600
69220-47010-H0 note Handle Assy, Front Door Outside, LH
1997-12 → 2000-05 ended
NHW10 ¥6,600
69220-47010-J0 note Handle Assy, Front Door Outside, LH
1997-12 → 2000-05 ended
NHW10 ¥6,600
69220-47010-K0 note Handle Assy, Front Door Outside, LH
1997-12 → 2000-05 ended
NHW10 ¥6,600
69220-47020-A0 note Handle Assy, Front Door Outside, LH
2000-05 → —
NHW11 ¥6,600
69220-47020-A1 note Handle Assy, Front Door Outside, LH
2000-05 → —
NHW11 ¥6,600
69220-47020-B0 note Handle Assy, Front Door Outside, LH
2000-05 → —
NHW11 ¥6,600
69220-47020-C0 note Handle Assy, Front Door Outside, LH
2001-09 → —
NHW11 ¥6,600
69220-47020-D0 note Handle Assy, Front Door Outside, LH
2000-12 → 2001-12 ended
NHW11 S ¥6,600
69220-47020-D0 note Handle Assy, Front Door Outside, LH
2001-08 → —
NHW11 ¥6,600
69220-47020-G0 note Handle Assy, Front Door Outside, LH
2000-05 → —
NHW11 ¥6,600
69220-47020-H0 note Handle Assy, Front Door Outside, LH
2000-05 → —
NHW11 ¥6,600
69220-47020-J0 note Handle Assy, Front Door Outside, LH
2000-05 → —
NHW11 ¥6,600
69220-47020-J1 note Handle Assy, Front Door Outside, LH
2000-05 → —
NHW11 ¥6,600
69277B — Bezel, Front Door Inside Handle, RH
69277-47010-B0 note Bezel, Front Door Inside Handle, RH
2000-05 → —
NHW11 ¥990
69277-47010-B0 note Bezel, Front Door Inside Handle, RH
1998-11 → 2000-05 ended
NHW10 ¥990
69277-47010-B0 note Bezel, Front Door Inside Handle, RH
1997-12 → 1998-11 ended
NHW10 ¥990
69278B — Bezel, Front Door Inside Handle, LH
69278-47010-B0 note Bezel, Front Door Inside Handle, LH
1997-12 → 1998-11 ended
NHW10 ¥990
69278-47010-B0 note Bezel, Front Door Inside Handle, LH
1998-11 → 2000-05 ended
NHW10 ¥990
69278-47010-B0 note Bezel, Front Door Inside Handle, LH
2000-05 → —
NHW11 ¥990
69293A — Snap, Front Door Outside Handle
69293-12030 note Snap, Front Door Outside Handle
1997-12 → —
NHW1# ¥160
69293-12040 note Snap, Front Door Outside Handle
1997-12 → —
NHW1# ¥160
69310 — Lock Assy, Front Door, RH
69030-47010 Lock Assy, Front Door, RH
1997-12 → 2000-05 ended
NHW10 ¥16,000
69030-47011 Lock Assy, Front Door, RH
2000-05 → —
NHW11 ¥16,000
69320 — Lock Assy, Front Door, LH
69040-47010 Lock Assy, Front Door, LH
1997-12 → 2000-05 ended
NHW10 ¥16,000
69040-47011 Lock Assy, Front Door, LH
2000-05 → —
NHW11 ¥16,000
69410 — Plate Assy, Front Door Lock Striker
69410-47010 Plate Assy, Front Door Lock Striker
1997-12 → —
NHW1# ¥1,060
69749A — Clamp, Front Door Lock Link, NO.1
69749-12030 Clamp, Front Door Lock Link, NO.1
1997-12 → —
NHW1# ¥180
69759 — Snap, Door Lock Control Link, NO.1
69759-24050 note Snap, Door Lock Control Link, NO.1
2000-05 → —
NHW11 ¥240
69759-24060 note Snap, Door Lock Control Link, NO.1
2000-05 → —
NHW11 ¥290
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
