Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

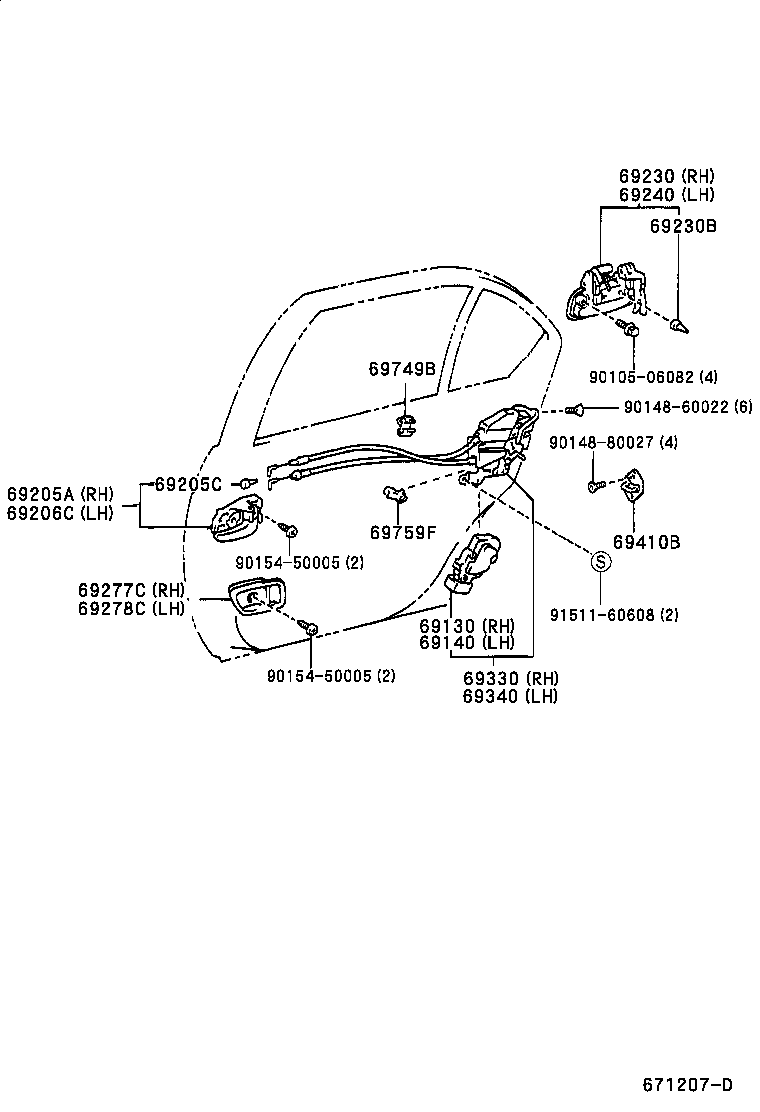

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

60 parts on this figure

Part number	Description	Fitment	Price
69130 — Actuator Assy, Rear Door Lock, RH
69130-47010	Actuator Assy, Rear Door Lock, RH 1997-12 → —	NHW1#	¥9,100
69140 — Actuator Assy, Rear Door Lock, LH
69140-47010	Actuator Assy, Rear Door Lock, LH 1997-12 → —	NHW1#	¥9,100
69205A — Handle Sub-assy, Rear Door Inside, RH
69205-47010-B0 note	Handle Sub-assy, Rear Door Inside, RH 1997-12 → 1998-11 ended	NHW10	¥3,040
69205-47010-B0 note	Handle Sub-assy, Rear Door Inside, RH 1998-11 → 2000-05 ended	NHW10	¥3,040
69205-47010-B0 note	Handle Sub-assy, Rear Door Inside, RH 2000-05 → —	NHW11	¥3,040
69205C — Cushion(FOR REAR DOOR INSIDE HANDLE)
90541-04014	Cushion(FOR REAR DOOR INSIDE HANDLE) 1997-12 → —	NHW1#	¥100
69206C — Handle Sub-assy, Rear Door Inside, LH
69206-47010-B0 note	Handle Sub-assy, Rear Door Inside, LH 1997-12 → 1998-11 ended	NHW10	¥3,040
69206-47010-B0 note	Handle Sub-assy, Rear Door Inside, LH 1998-11 → 2000-05 ended	NHW10	¥3,040
69206-47010-B0 note	Handle Sub-assy, Rear Door Inside, LH 2000-05 → —	NHW11	¥3,040
69230 — Handle Assy, Rear Door Outside, RH
69230-47010-A0 note	Handle Assy, Rear Door Outside, RH 1997-12 → 2000-05 ended	NHW10	¥6,600
69230-47010-A1 note	Handle Assy, Rear Door Outside, RH 1998-11 → 2000-05 ended	NHW10	¥6,600
69230-47010-B0 note	Handle Assy, Rear Door Outside, RH 1999-11 → 2000-05 ended	NHW10	¥6,600
69230-47010-D0 note	Handle Assy, Rear Door Outside, RH 1997-12 → 1999-01 ended	NHW10	¥6,600
69230-47010-G1 note	Handle Assy, Rear Door Outside, RH 1997-12 → 2000-05 ended	NHW10	¥6,600
69230-47010-H0 note	Handle Assy, Rear Door Outside, RH 1997-12 → 2000-05 ended	NHW10	¥6,600
69230-47010-J0 note	Handle Assy, Rear Door Outside, RH 1997-12 → 2000-05 ended	NHW10	¥6,600
69230-47010-K0 note	Handle Assy, Rear Door Outside, RH 1997-12 → 2000-05 ended	NHW10	¥6,600
69230-47020-A0 note	Handle Assy, Rear Door Outside, RH 2000-05 → —	NHW11	¥6,600
69230-47020-A1 note	Handle Assy, Rear Door Outside, RH 2000-05 → —	NHW11	¥6,600
69230-47020-B0 note	Handle Assy, Rear Door Outside, RH 2000-05 → —	NHW11	¥6,600
69230-47020-C0 note	Handle Assy, Rear Door Outside, RH 2001-09 → —	NHW11	¥6,600
69230-47020-D0 note	Handle Assy, Rear Door Outside, RH 2000-12 → 2001-12 ended	NHW11 S	¥6,600
69230-47020-D0 note	Handle Assy, Rear Door Outside, RH 2001-08 → —	NHW11	¥6,600
69230-47020-G0 note	Handle Assy, Rear Door Outside, RH 2000-05 → —	NHW11	¥6,600
69230-47020-H0 note	Handle Assy, Rear Door Outside, RH 2000-05 → —	NHW11	¥6,600
69230-47020-J0 note	Handle Assy, Rear Door Outside, RH 2000-05 → —	NHW11	¥6,600
69230-47020-J1 note	Handle Assy, Rear Door Outside, RH 2000-05 → —	NHW11	¥6,600
69230B — Cushion(FOR REAR DOOR OUTSIDE HANDLE)
90541-04018	Cushion(FOR REAR DOOR OUTSIDE HANDLE) 1997-12 → —	NHW1#	¥160
69240 — Handle Assy, Rear Door Outside, LH
69240-47010-A0 note	Handle Assy, Rear Door Outside, LH 1997-12 → 2000-05 ended	NHW10	¥6,600
69240-47010-A1 note	Handle Assy, Rear Door Outside, LH 1998-11 → 2000-05 ended	NHW10	¥6,600
69240-47010-B0 note	Handle Assy, Rear Door Outside, LH 1999-11 → 2000-05 ended	NHW10	¥6,600
69240-47010-D0 note	Handle Assy, Rear Door Outside, LH 1997-12 → 1999-01 ended	NHW10	¥6,600
69240-47010-G1 note	Handle Assy, Rear Door Outside, LH 1997-12 → 2000-05 ended	NHW10	¥6,600
69240-47010-H0 note	Handle Assy, Rear Door Outside, LH 1997-12 → 2000-05 ended	NHW10	¥6,600
69240-47010-J0 note	Handle Assy, Rear Door Outside, LH 1997-12 → 2000-05 ended	NHW10	¥6,600
69240-47010-K0 note	Handle Assy, Rear Door Outside, LH 1997-12 → 2000-05 ended	NHW10	¥6,600
69240-47020-A0 note	Handle Assy, Rear Door Outside, LH 2000-05 → —	NHW11	¥6,600
69240-47020-A1 note	Handle Assy, Rear Door Outside, LH 2000-05 → —	NHW11	¥6,600
69240-47020-B0 note	Handle Assy, Rear Door Outside, LH 2000-05 → —	NHW11	¥6,600
69240-47020-C0 note	Handle Assy, Rear Door Outside, LH 2001-09 → —	NHW11	¥6,600
69240-47020-D0 note	Handle Assy, Rear Door Outside, LH 2000-12 → 2001-12 ended	NHW11 S	¥6,600
69240-47020-D0 note	Handle Assy, Rear Door Outside, LH 2001-08 → —	NHW11	¥6,600
69240-47020-G0 note	Handle Assy, Rear Door Outside, LH 2000-05 → —	NHW11	¥6,600
69240-47020-H0 note	Handle Assy, Rear Door Outside, LH 2000-05 → —	NHW11	¥6,600
69240-47020-J0 note	Handle Assy, Rear Door Outside, LH 2000-05 → —	NHW11	¥6,600
69240-47020-J1 note	Handle Assy, Rear Door Outside, LH 2000-05 → —	NHW11	¥6,600
69277C — Bezel, Rear Door Inside Handle, RH
69277-47010-B0 note	Bezel, Rear Door Inside Handle, RH 1997-12 → 1998-11 ended	NHW10	¥990
69277-47010-B0 note	Bezel, Rear Door Inside Handle, RH 2000-05 → —	NHW11	¥990
69277-47010-B0 note	Bezel, Rear Door Inside Handle, RH 1998-11 → 2000-05 ended	NHW10	¥990
69278C — Bezel, Rear Door Inside Handle, LH
69278-47010-B0 note	Bezel, Rear Door Inside Handle, LH 1997-12 → 1998-11 ended	NHW10	¥990
69278-47010-B0 note	Bezel, Rear Door Inside Handle, LH 1998-11 → 2000-05 ended	NHW10	¥990
69278-47010-B0 note	Bezel, Rear Door Inside Handle, LH 2000-05 → —	NHW11	¥990
69330 — Lock Assy, Rear Door, RH
69050-47010	Lock Assy, Rear Door, RH 1997-12 → 2000-05 ended	NHW10	¥14,100
69050-47011	Lock Assy, Rear Door, RH 2000-05 → —	NHW11	¥14,100
69340 — Lock Assy, Rear Door, LH
69060-47010	Lock Assy, Rear Door, LH 1997-12 → 2000-05 ended	NHW10	¥14,100
69060-47011	Lock Assy, Rear Door, LH 2000-05 → —	NHW11	¥14,100
69410B — Plate Assy, Rear Door Lock Striker
69410-47010	Plate Assy, Rear Door Lock Striker 1997-12 → —	NHW1#	¥1,060
69749B — Clamp, Rear Door Lock Link
69749-12030	Clamp, Rear Door Lock Link 1997-12 → —	NHW1#	¥180
69759F — Snap, Rear Door Lock Control Link
69759-24050 note	Snap, Rear Door Lock Control Link 2000-05 → —	NHW11	¥240
69759-24060 note	Snap, Rear Door Lock Control Link 2000-05 → —	NHW11	¥290

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
