Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

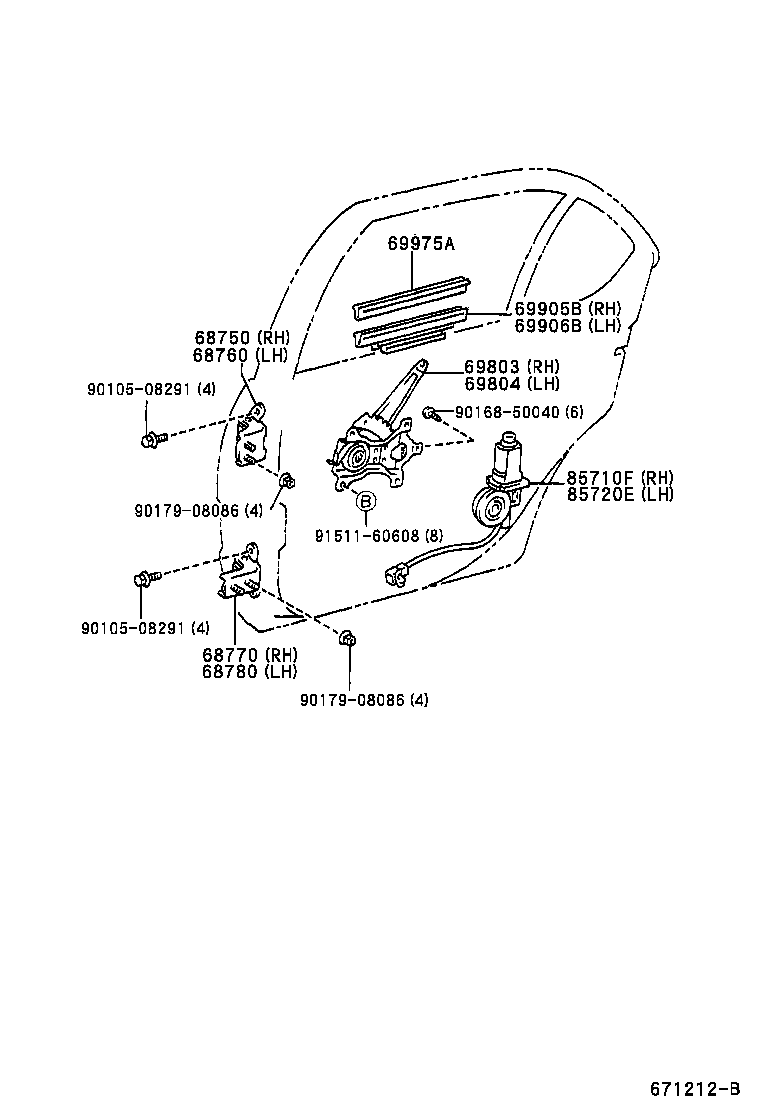

Exploded illustration 671212B 69975A — FILLER, REAR DOOR GLASS CHANNEL (1 parts) 69905B — CHANNEL SUB-ASSY, REAR DOOR GLASS, RH (1 parts) 69906B — CHANNEL SUB-ASSY, REAR DOOR GLASS, LH (1 parts) 68750 — HINGE ASSY, REAR DOOR, UPPER RH (1 parts) 68760 — HINGE ASSY, REAR DOOR, UPPER LH (1 parts) 69803 — REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH (1 parts) 69804 — REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH (1 parts) 9010508291 — not listed in this catalogue 9016850040 — not listed in this catalogue 85710F — MOTOR ASSY, POWER WINDOW REGULATOR, RH (2 parts) 85720E — MOTOR ASSY, POWER WINDOW REGULATOR, LH (2 parts) 9017908086 — not listed in this catalogue 9151160608 — not listed in this catalogue 9010508291 — not listed in this catalogue 68770 — HINGE ASSY, REAR DOOR, LOWER RH (2 parts) 68780 — HINGE ASSY, REAR DOOR, LOWER LH (2 parts) 9017908086 — not listed in this catalogue
671212B · 11 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
15 parts on this figure
Part number Description Fitment Price
68750 — Hinge Assy, Rear Door, Upper RH
68750-42010 Hinge Assy, Rear Door, Upper RH
1997-12 → —
NHW1# ¥3,270
68760 — Hinge Assy, Rear Door, Upper LH
68760-42010 Hinge Assy, Rear Door, Upper LH
1997-12 → —
NHW1# ¥3,270
68770 — Hinge Assy, Rear Door, Lower RH
68770-12100 Hinge Assy, Rear Door, Lower RH
1997-12 → 1999-05 ended
NHW10 ¥3,570
68770-47010 Hinge Assy, Rear Door, Lower RH
1999-05 → —
NHW1# ¥3,260
68780 — Hinge Assy, Rear Door, Lower LH
68780-12090 Hinge Assy, Rear Door, Lower LH
1997-12 → 1999-05 ended
NHW10 ¥3,570
68780-47010 Hinge Assy, Rear Door, Lower LH
1999-05 → —
NHW1# ¥3,260
69803 — Regulator Sub-assy, Rear Door Window, RH
69803-47010 Regulator Sub-assy, Rear Door Window, RH
1997-12 → —
NHW1# ¥5,500
69804 — Regulator Sub-assy, Rear Door Window, LH
69804-47010 Regulator Sub-assy, Rear Door Window, LH
1997-12 → —
NHW1# ¥5,500
69905B — Channel Sub-assy, Rear Door Glass, RH
69905-47010 Channel Sub-assy, Rear Door Glass, RH
1997-12 → —
NHW1# ¥660
69906B — Channel Sub-assy, Rear Door Glass, LH
69906-47010 Channel Sub-assy, Rear Door Glass, LH
1997-12 → —
NHW1# ¥660
69975A — Filler, Rear Door Glass Channel
69975-12010 Filler, Rear Door Glass Channel
1997-12 → —
NHW1# ¥310
85710F — Motor Assy, Power Window Regulator, RH
85720-47010 Motor Assy, Power Window Regulator, RH
1997-12 → 2000-05 ended
NHW10 ¥25,300
85720-47011 Motor Assy, Power Window Regulator, RH
2000-05 → —
NHW11 ¥25,300
85720E — Motor Assy, Power Window Regulator, LH
85710-47010 Motor Assy, Power Window Regulator, LH
1997-12 → 2000-05 ended
NHW10 ¥25,300
85710-47011 Motor Assy, Power Window Regulator, LH
2000-05 → —
NHW11 ¥25,300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
