Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

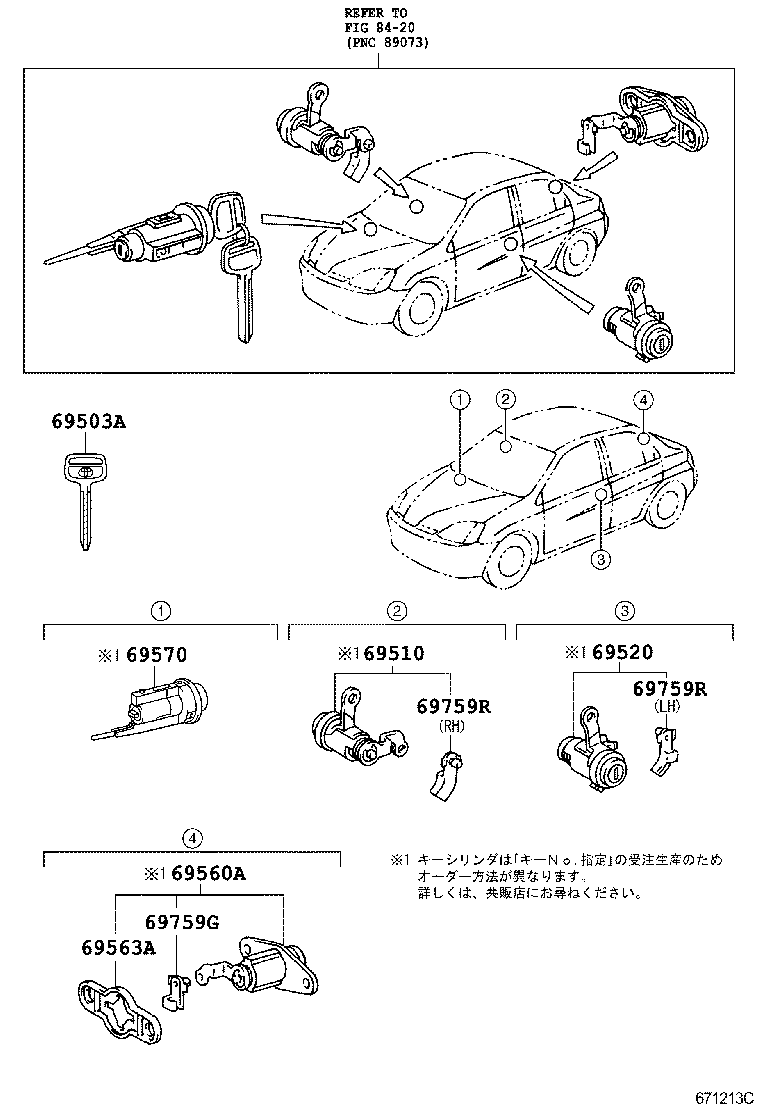

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

14 parts on this figure

Part number	Description	Fitment	Price
69503A — Key, Blank
90999-00186 note	Key, Blank 1997-12 → 2000-05 ended	NHW10	¥1,430
90999-00186 note	Key, Blank 2000-05 → —	NHW11	¥1,430
69510 — Cylinder Assy, Front Door Lock, RH
69510-47010	Cylinder Assy, Front Door Lock, RH 1997-12 → 2000-05 ended	NHW10	¥9,100
69510-47011	Cylinder Assy, Front Door Lock, RH 2000-05 → —	NHW11	¥9,100
69520 — Cylinder Assy, Front Door Lock, LH
69520-47010	Cylinder Assy, Front Door Lock, LH 1997-12 → 2000-05 ended	NHW10	¥9,100
69520-47011	Cylinder Assy, Front Door Lock, LH 2000-05 → —	NHW11	¥9,100
69560A — Cylinder Assy, Luggage Compartment Door Lock
69560-47010	Cylinder Assy, Luggage Compartment Door Lock 1997-12 → 2000-05 ended	NHW10	¥9,100
69560-47010	Cylinder Assy, Luggage Compartment Door Lock 2000-05 → —	NHW11	¥9,100
69563A — Pad, Luggage Compartment Door Lock Cylinder
69563-12100	Pad, Luggage Compartment Door Lock Cylinder 1997-12 → —	NHW1#	¥90
69570 — Cylinder Assy, Ignition Switch Lock
69570-20220	Cylinder Assy, Ignition Switch Lock 1997-12 → 2000-05 ended	NHW10	¥12,000
69570-20220	Cylinder Assy, Ignition Switch Lock 2000-05 → —	NHW11	¥12,000
69759G — Snap, Luggage Door Lock Cylinder
69759-20090	Snap, Luggage Door Lock Cylinder 1997-12 → —	NHW1#	¥280
69759R — Snap, Front Door Lock Cylinder
69759-12080 note	Snap, Front Door Lock Cylinder 1997-12 → —	NHW1#	¥240
69759-12090 note	Snap, Front Door Lock Cylinder 1997-12 → —	NHW1#	¥240

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
