Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

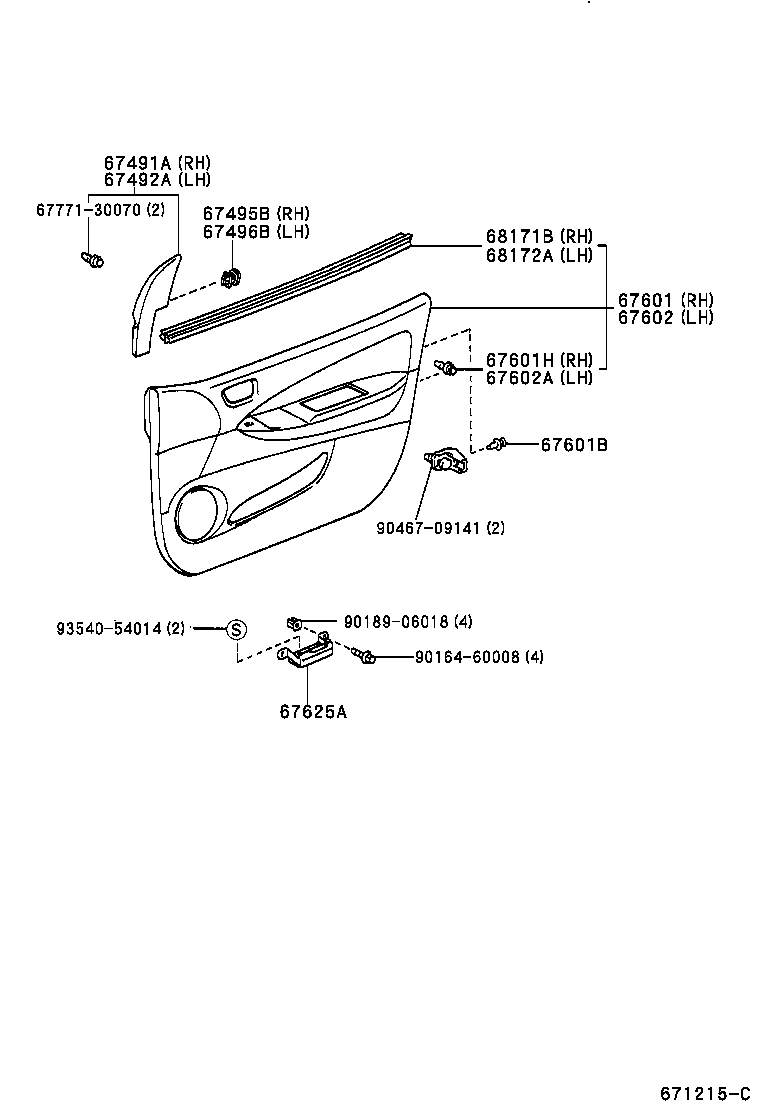

34 parts on this figure

Part number	Description	Fitment	Price
67491A — Garnish, Front Door Lower Frame Bracket, RH
67491-47010	Garnish, Front Door Lower Frame Bracket, RH 1997-12 → —	NHW1#	¥2,380
67492A — Garnish, Front Door Lower Frame Bracket, LH
67492-47010	Garnish, Front Door Lower Frame Bracket, LH 1997-12 → —	NHW1#	¥2,380
67495B — Cover, Front Door Front Lower Frame, Upper RH
67495-47010	Cover, Front Door Front Lower Frame, Upper RH 1997-12 → —	NHW1#	¥120
67496B — Cover, Front Door Front Lower Frame, Upper LH
67496-47010	Cover, Front Door Front Lower Frame, Upper LH 1997-12 → —	NHW1#	¥120
67601 — Board Sub-assy, Front Door Trim, RH
67610-47010-B0 note	Board Sub-assy, Front Door Trim, RH 1997-12 → 2000-05 ended	NHW10	¥41,500
67610-47010-B1 note	Board Sub-assy, Front Door Trim, RH 1997-12 → 2000-05 ended	NHW10	¥41,500
67610-47020-B0 note	Board Sub-assy, Front Door Trim, RH 1998-11 → 2000-05 ended	NHW10	¥54,500
67610-47030-K0 note	Board Sub-assy, Front Door Trim, RH 2000-05 → 2002-08 ended	NHW11 G	¥43,900
67610-47050-K0 note	Board Sub-assy, Front Door Trim, RH 2000-05 → —	NHW11 S	¥41,500
67610-47060-K0 note	Board Sub-assy, Front Door Trim, RH 2002-01 → 2002-12 ended	NHW11 S	¥54,500
67610-47060-K0 note	Board Sub-assy, Front Door Trim, RH 2002-08 → —	NHW11 G	¥54,500
67610-47060-K0 note	Board Sub-assy, Front Door Trim, RH 2000-12 → 2001-12 ended	NHW11 S	¥54,500
67601B — Clip(FOR FRONT DOOR TRIM BOARD)
90467-07066-P3 note	Clip(FOR FRONT DOOR TRIM BOARD) 1997-12 → 1998-11 ended	NHW10	¥120
90467-07066-P3 note	Clip(FOR FRONT DOOR TRIM BOARD) 1998-11 → 2000-05 ended	NHW10	¥120
90467-07066-P3 note	Clip(FOR FRONT DOOR TRIM BOARD) 2000-05 → —	NHW11	¥120
67601H — Retainer, Door Trim, RH
67771-12030 note	Retainer, Door Trim, RH 1997-12 → 1998-12 ended	NHW10	¥190
67771-12050 note	Retainer, Door Trim, RH 1997-12 → —	NHW1# G,N	¥160
67771-12050	Retainer, Door Trim, RH 2000-05 → —	NHW11 S	¥160
67771-32120 note	Retainer, Door Trim, RH 1998-12 → —	NHW1#	¥180
67602 — Board Sub-assy, Front Door Trim, LH
67620-47010-B0 note	Board Sub-assy, Front Door Trim, LH 1997-12 → 2000-05 ended	NHW10	¥41,500
67620-47010-B1 note	Board Sub-assy, Front Door Trim, LH 1997-12 → 2000-05 ended	NHW10	¥41,500
67620-47020-B0 note	Board Sub-assy, Front Door Trim, LH 1998-11 → 2000-05 ended	NHW10	¥54,500
67620-47030-K0 note	Board Sub-assy, Front Door Trim, LH 2000-05 → 2002-08 ended	NHW11 G	¥43,900
67620-47050-K0 note	Board Sub-assy, Front Door Trim, LH 2000-05 → —	NHW11 S	¥41,500
67620-47060-K0 note	Board Sub-assy, Front Door Trim, LH 2000-12 → 2001-12 ended	NHW11 S	¥54,500
67620-47060-K0 note	Board Sub-assy, Front Door Trim, LH 2002-01 → 2002-12 ended	NHW11 S	¥54,500
67620-47060-K0 note	Board Sub-assy, Front Door Trim, LH 2002-08 → —	NHW11 G	¥54,500
67602A — Retainer, Door Trim, LH
67771-12030 note	Retainer, Door Trim, LH 1997-12 → 1998-12 ended	NHW10	¥190
67771-12050 note	Retainer, Door Trim, LH 1997-12 → —	NHW1#	¥160
67771-32120 note	Retainer, Door Trim, LH 1998-12 → —	NHW1#	¥180
67625A — Bracket, Front Door Trim, NO.1
67625-44010	Bracket, Front Door Trim, NO.1 1997-12 → 2000-05 ended	NHW10	¥1,430
67625-44010	Bracket, Front Door Trim, NO.1 2000-05 → —	NHW11	¥1,430
68171B — Weatherstrip, Front Door Glass, Inner RH
68171-47010	Weatherstrip, Front Door Glass, Inner RH 1997-12 → —	NHW1#	¥6,700
68172A — Weatherstrip, Front Door Glass, Inner LH
68172-47010	Weatherstrip, Front Door Glass, Inner LH 1997-12 → —	NHW1#	¥6,700

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
