Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

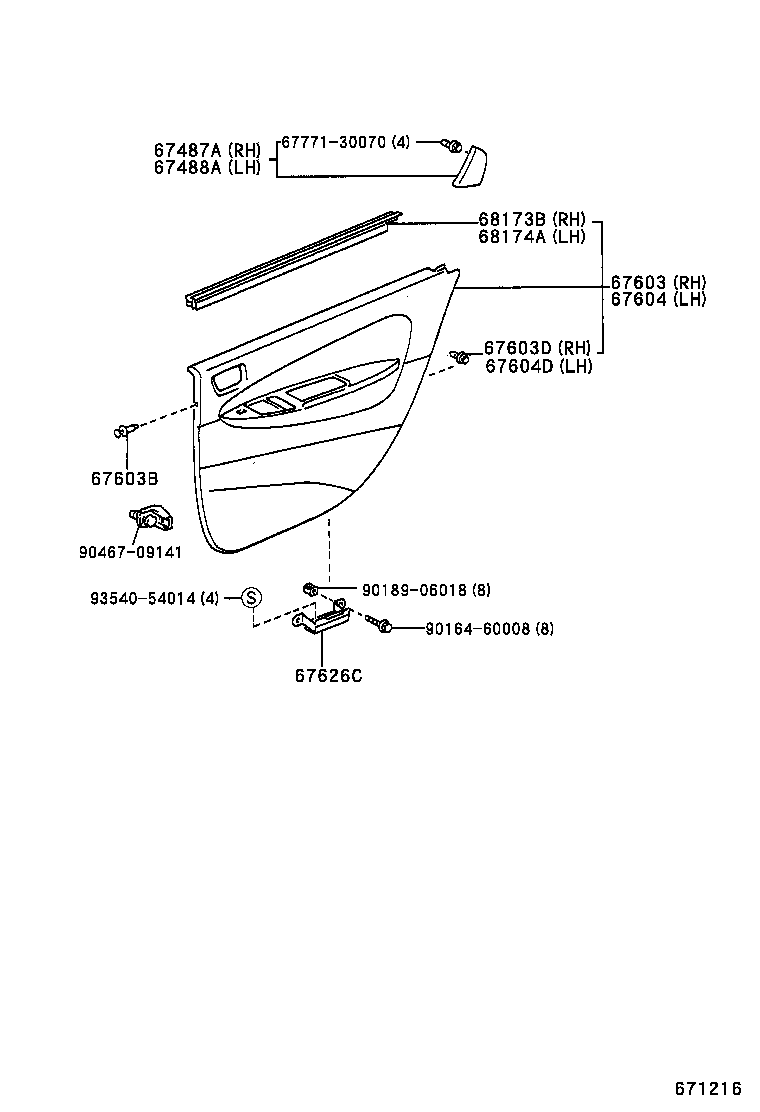

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67487A — Garnish, Rear Door Rear Guide Bracket, RH | ||||
| 67487-47020-B0 note |
Garnish, Rear Door Rear Guide Bracket, RH
1998-11 → 2000-05
ended
|
NHW10 | ¥1,180 | |
| 67487-47020-B0 note |
Garnish, Rear Door Rear Guide Bracket, RH
2000-05 → —
|
NHW11 | ¥1,180 | |
| 67487-47020-B0 note |
Garnish, Rear Door Rear Guide Bracket, RH
1997-12 → 1998-11
ended
|
NHW10 | ¥1,180 | |
| 67488A — Garnish, Rear Door Rear Guide Bracket, LH | ||||
| 67488-47020-B0 note |
Garnish, Rear Door Rear Guide Bracket, LH
1997-12 → 1998-11
ended
|
NHW10 | ¥1,180 | |
| 67488-47020-B0 note |
Garnish, Rear Door Rear Guide Bracket, LH
1998-11 → 2000-05
ended
|
NHW10 | ¥1,180 | |
| 67488-47020-B0 note |
Garnish, Rear Door Rear Guide Bracket, LH
2000-05 → —
|
NHW11 | ¥1,180 | |
| 67603 — Board Sub-assy, Rear Door Trim, RH | ||||
| 67630-47010-B0 note |
Board Sub-assy, Rear Door Trim, RH
1997-12 → 2000-05
ended
|
NHW10 | ¥33,400 | |
| 67630-47010-B1 note |
Board Sub-assy, Rear Door Trim, RH
1997-12 → 2000-05
ended
|
NHW10 | ¥33,400 | |
| 67630-47020-B0 note |
Board Sub-assy, Rear Door Trim, RH
1998-11 → 2000-05
ended
|
NHW10 | ¥45,600 | |
| 67630-47030-K0 note |
Board Sub-assy, Rear Door Trim, RH
2000-05 → 2002-08
ended
|
NHW11 G | ¥35,800 | |
| 67630-47050-K0 note |
Board Sub-assy, Rear Door Trim, RH
2000-05 → —
|
NHW11 S | ¥33,400 | |
| 67630-47060-K0 note |
Board Sub-assy, Rear Door Trim, RH
2000-12 → 2001-12
ended
|
NHW11 S | ¥45,600 | |
| 67630-47060-K0 note |
Board Sub-assy, Rear Door Trim, RH
2002-01 → 2002-12
ended
|
NHW11 S | ¥45,600 | |
| 67630-47060-K0 note |
Board Sub-assy, Rear Door Trim, RH
2002-08 → —
|
NHW11 G | ¥45,600 | |
| 67603B — Clip(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066-P3 note |
Clip(FOR REAR DOOR TRIM BOARD)
2000-05 → —
|
NHW11 | ¥120 | |
| 90467-07066-P3 note |
Clip(FOR REAR DOOR TRIM BOARD)
1997-12 → 1998-11
ended
|
NHW10 | ¥120 | |
| 90467-07066-P3 note |
Clip(FOR REAR DOOR TRIM BOARD)
1998-11 → 2000-05
ended
|
NHW10 | ¥120 | |
| 67603D — Retainer, Rear Door Trim, RH | ||||
| 67771-12030 note |
Retainer, Rear Door Trim, RH
1997-12 → —
|
NHW1# | ¥190 | |
| 67771-12050 note |
Retainer, Rear Door Trim, RH
1997-12 → —
|
NHW1# | ¥160 | |
| 67604 — Board Sub-assy, Rear Door Trim, LH | ||||
| 67640-47010-B0 note |
Board Sub-assy, Rear Door Trim, LH
1997-12 → 2000-05
ended
|
NHW10 | ¥33,400 | |
| 67640-47010-B1 note |
Board Sub-assy, Rear Door Trim, LH
1997-12 → 2000-05
ended
|
NHW10 | ¥33,400 | |
| 67640-47020-B0 note |
Board Sub-assy, Rear Door Trim, LH
1998-11 → 2000-05
ended
|
NHW10 | ¥45,600 | |
| 67640-47030-K0 note |
Board Sub-assy, Rear Door Trim, LH
2000-05 → 2002-08
ended
|
NHW11 G | ¥35,800 | |
| 67640-47050-K0 note |
Board Sub-assy, Rear Door Trim, LH
2000-05 → —
|
NHW11 S | ¥33,400 | |
| 67640-47060-K0 note |
Board Sub-assy, Rear Door Trim, LH
2002-01 → 2002-12
ended
|
NHW11 S | ¥45,600 | |
| 67640-47060-K0 note |
Board Sub-assy, Rear Door Trim, LH
2002-08 → —
|
NHW11 G | ¥45,600 | |
| 67640-47060-K0 note |
Board Sub-assy, Rear Door Trim, LH
2000-12 → 2001-12
ended
|
NHW11 S | ¥45,600 | |
| 67604D — Retainer, Rear Door Trim, LH | ||||
| 67771-12030 note |
Retainer, Rear Door Trim, LH
1997-12 → —
|
NHW1# | ¥190 | |
| 67771-12050 note |
Retainer, Rear Door Trim, LH
1997-12 → —
|
NHW1# | ¥160 | |
| 67626C — Bracket, Rear Door Trim, NO.2 | ||||
| 67625-44010 |
Bracket, Rear Door Trim, NO.2
1997-12 → 2000-05
ended
|
NHW10 | ¥1,430 | |
| 67625-44010 |
Bracket, Rear Door Trim, NO.2
2000-05 → —
|
NHW11 | ¥1,430 | |
| 68173B — Weatherstrip, Rear Door Glass, Inner RH | ||||
| 68173-47010 |
Weatherstrip, Rear Door Glass, Inner RH
1997-12 → —
|
NHW1# | ¥5,300 | |
| 68174A — Weatherstrip, Rear Door Glass, Inner LH | ||||
| 68174-47010 |
Weatherstrip, Rear Door Glass, Inner LH
1997-12 → —
|
NHW1# | ¥5,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
