Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

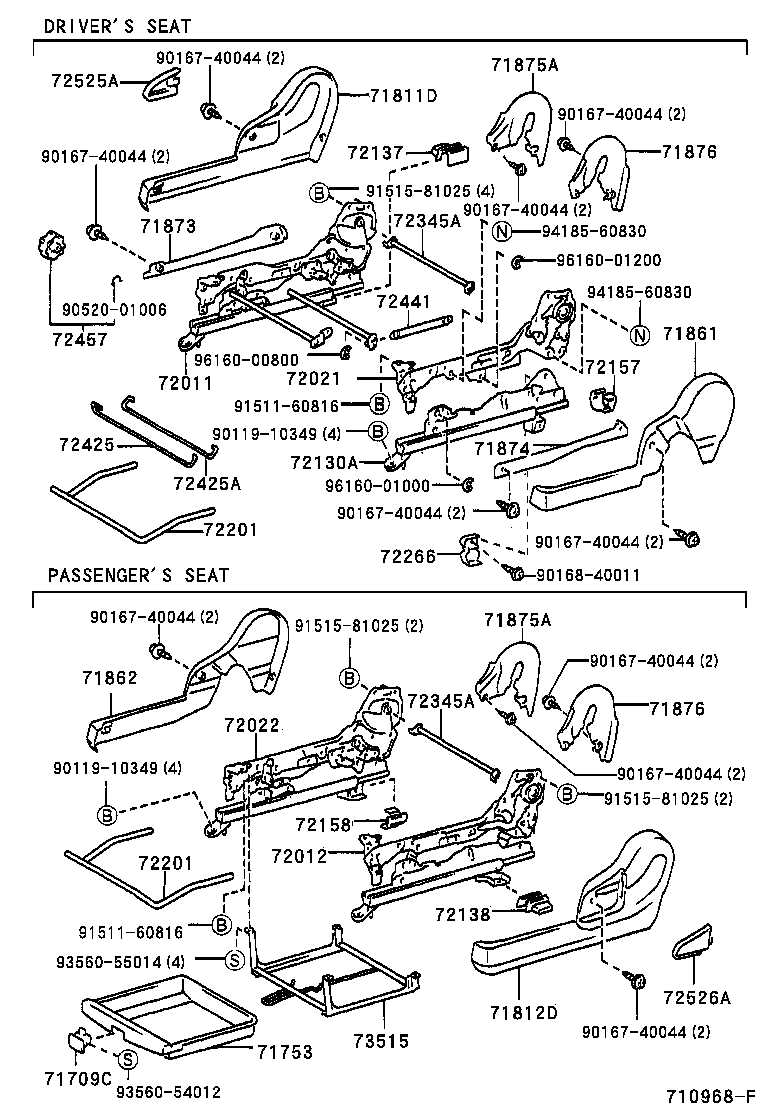

Exploded illustration 710968F 9016740044 — not listed in this catalogue 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (9 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (5 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (5 parts) 9016740044 — not listed in this catalogue 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (9 parts) 72137 — COVER, SEAT TRACK, OUTER RH (3 parts) 9016740044 — not listed in this catalogue 9151581025 — not listed in this catalogue 9016740044 — not listed in this catalogue 72345A — PIPE, RECLINING CONNECTING (2 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (5 parts) 9418560830 — not listed in this catalogue 9616001200 — not listed in this catalogue 9418560830 — not listed in this catalogue 72441 — LINK, VERTICAL TRAVEL (1 parts) 9052001006 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (5 parts) 72457 — KNOB, VERTICAL SEAT ADJUSTER (5 parts) 9616000800 — not listed in this catalogue 72157 — COVER, SEAT TRACK BRACKET, INNER (3 parts) 72021 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH (1 parts) 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (1 parts) 9151160816 — not listed in this catalogue 9011910349 — not listed in this catalogue 72425 — BAR, VERTICAL ADJUSTER TORSION, NO.1 (1 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (5 parts) 72130A — TRACK ASSY, FRONT SEAT, INNER RH (1 parts) 72425A — BAR, VERTICAL ADJUSTER TORSION NO.2 (1 parts) 9616001000 — not listed in this catalogue 9016740044 — not listed in this catalogue 72201 — HANDLE SUB-ASSY, SEAT TRACK (2 parts) 9016740044 — not listed in this catalogue 72266 — COVER, SEAT TRACK UPPER RAIL, LH (1 parts) 9016840011 — not listed in this catalogue 9016740044 — not listed in this catalogue 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (9 parts) 9151581025 — not listed in this catalogue 9016740044 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (5 parts) 72345A — PIPE, RECLINING CONNECTING (2 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (9 parts) 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (1 parts) 9011910349 — not listed in this catalogue 9016740044 — not listed in this catalogue 9151581025 — not listed in this catalogue 72158 — COVER, SEAT TRACK BRACKET, INNER LH (3 parts) 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (1 parts) 72201 — HANDLE SUB-ASSY, SEAT TRACK (2 parts) 72138 — COVER, SEAT TRACK, OUTER LH (3 parts) 9151160816 — not listed in this catalogue 9356055014 — not listed in this catalogue 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (5 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (5 parts) 9016740044 — not listed in this catalogue 73515 — RAIL, FRONT SEAT UNDER TRAY, NO.1 (1 parts) 71753 — TRAY, FRONT SEAT UNDER (3 parts) 71709C — LOCK SUB-ASSY, SEAT UNDER TRAY (2 parts) 9356054012 — not listed in this catalogue
710968F · 33 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
94 parts on this figure
Part number Description Fitment Price
71709C — Lock Sub-assy, Seat Under Tray
55560-95J00-C0 note Lock Sub-assy, Seat Under Tray
1998-11 → 2000-05 ended
NHW10 ¥2,210
55560-95J00-C0 note Lock Sub-assy, Seat Under Tray
1997-12 → 1998-11 ended
NHW10 ¥2,210
71753 — Tray, Front Seat Under
71753-13020-C0 note Tray, Front Seat Under
1998-11 → 2000-05 ended
NHW10 ¥9,100
71753-13020-C0 note Tray, Front Seat Under
1997-12 → 1998-11 ended
NHW10 ¥9,100
71753-52010 Tray, Front Seat Under
2000-05 → —
NHW11 ¥3,760
71811D — Shield, Front Seat Cushion, RH
71811-47020-B0 note Shield, Front Seat Cushion, RH
1997-12 → 2000-05 ended
NHW10 ¥3,910
71811-47020-B0 note Shield, Front Seat Cushion, RH
1998-11 → 2000-05 ended
NHW10 ¥3,910
71811-47020-B1 note Shield, Front Seat Cushion, RH
1997-12 → 2000-05 ended
NHW10 ¥3,910
71811-47030-B2 note Shield, Front Seat Cushion, RH
2000-05 → —
NHW11 G ¥3,890
71811-47030-B3 note Shield, Front Seat Cushion, RH
2000-05 → —
NHW11 S ¥3,890
71812D — Shield, Front Seat Cushion, LH
71812-47020-B0 note Shield, Front Seat Cushion, LH
1997-12 → 2000-05 ended
NHW10 ¥4,130
71812-47020-B0 note Shield, Front Seat Cushion, LH
1998-11 → 2000-05 ended
NHW10 ¥4,130
71812-47020-B1 note Shield, Front Seat Cushion, LH
1997-12 → 2000-05 ended
NHW10 ¥4,130
71812-47030-B2 note Shield, Front Seat Cushion, LH
2000-05 → —
NHW11 G ¥3,890
71812-47030-B3 note Shield, Front Seat Cushion, LH
2000-05 → —
NHW11 S ¥3,890
71861 — Shield, Front Seat Cushion, Inner RH
71861-47010-B0 note Shield, Front Seat Cushion, Inner RH
1997-12 → 2000-05 ended
NHW10 ¥3,150
71861-47010-B0 note Shield, Front Seat Cushion, Inner RH
1998-11 → 2000-05 ended
NHW10 ¥3,150
71861-47010-B1 note Shield, Front Seat Cushion, Inner RH
1997-12 → 2000-05 ended
NHW10 ¥3,150
71861-47030-B0 note Shield, Front Seat Cushion, Inner RH
2000-05 → —
NHW11 G ¥3,710
71861-47030-B1 note Shield, Front Seat Cushion, Inner RH
2000-05 → —
NHW11 S ¥3,710
71862 — Shield, Front Seat Cushion, Inner LH
71862-47010-B0 note Shield, Front Seat Cushion, Inner LH
1997-12 → 2000-05 ended
NHW10 ¥3,500
71862-47010-B0 note Shield, Front Seat Cushion, Inner LH
1998-11 → 2000-05 ended
NHW10 ¥3,500
71862-47010-B1 note Shield, Front Seat Cushion, Inner LH
1997-12 → 2000-05 ended
NHW10 ¥3,500
71862-47020-B2 note Shield, Front Seat Cushion, Inner LH
2000-05 → —
NHW11 G ¥3,890
71862-47020-B3 note Shield, Front Seat Cushion, Inner LH
2000-05 → —
NHW11 S ¥3,890
71873 — Shield, Front Seat Cushion, Lower RH
71873-47010-B0 note Shield, Front Seat Cushion, Lower RH
1997-12 → 2000-05 ended
NHW10 ¥1,800
71873-47010-B0 note Shield, Front Seat Cushion, Lower RH
1998-11 → 2000-05 ended
NHW10 ¥1,800
71873-47010-B1 note Shield, Front Seat Cushion, Lower RH
1997-12 → 2000-05 ended
NHW10 ¥1,800
71873-47020-B2 note Shield, Front Seat Cushion, Lower RH
2000-05 → —
NHW11 G ¥740
71873-47020-B3 note Shield, Front Seat Cushion, Lower RH
2000-05 → —
NHW11 S ¥740
71874 — Shield, Front Seat Cushion, Lower LH
71874-47010-B0 note Shield, Front Seat Cushion, Lower LH
1997-12 → 2000-05 ended
NHW10 ¥1,460
71874-47010-B0 note Shield, Front Seat Cushion, Lower LH
1998-11 → 2000-05 ended
NHW10 ¥1,460
71874-47010-B1 note Shield, Front Seat Cushion, Lower LH
1997-12 → 2000-05 ended
NHW10 ¥1,460
71874-47020-B0 note Shield, Front Seat Cushion, Lower LH
2000-05 → —
NHW11 G ¥740
71874-47020-B1 note Shield, Front Seat Cushion, Lower LH
2000-05 → —
NHW11 S ¥740
71875A — Cover, Reclining Adjuster Inside, RH
71875-47010-B0 note Cover, Reclining Adjuster Inside, RH
1997-12 → 2000-05 ended
NHW10 ¥1,750
71875-47010-B0 note Cover, Reclining Adjuster Inside, RH
1999-01 → 2000-05 ended
NHW10 ¥1,750
71875-47010-B0 note Cover, Reclining Adjuster Inside, RH
1998-11 → 2000-05 ended
NHW10 ¥1,750
71875-47010-B1 note Cover, Reclining Adjuster Inside, RH
1997-12 → 2000-05 ended
NHW10 ¥1,750
71875-47010-B1 note Cover, Reclining Adjuster Inside, RH
1999-01 → 2000-05 ended
NHW10 ¥1,750
71875-47020-B3 note Cover, Reclining Adjuster Inside, RH
2000-05 → —
NHW11 G ¥860
71875-47020-B3 note Cover, Reclining Adjuster Inside, RH
2000-05 → —
NHW11 G ¥860
71875-47020-B4 note Cover, Reclining Adjuster Inside, RH
2000-05 → —
NHW11 S ¥860
71875-47020-B4 note Cover, Reclining Adjuster Inside, RH
2000-05 → —
NHW11 S ¥860
71876 — Cover, Reclining Adjuster Inside, LH
71876-47010-B0 note Cover, Reclining Adjuster Inside, LH
1999-01 → 2000-05 ended
NHW10 ¥1,750
71876-47010-B0 note Cover, Reclining Adjuster Inside, LH
1998-11 → 2000-05 ended
NHW10 ¥1,750
71876-47010-B0 note Cover, Reclining Adjuster Inside, LH
1997-12 → 2000-05 ended
NHW10 ¥1,750
71876-47010-B1 note Cover, Reclining Adjuster Inside, LH
1997-12 → 2000-05 ended
NHW10 ¥1,750
71876-47010-B1 note Cover, Reclining Adjuster Inside, LH
1999-01 → 2000-05 ended
NHW10 ¥1,750
71876-47020-B3 note Cover, Reclining Adjuster Inside, LH
2000-05 → —
NHW11 G ¥920
71876-47020-B3 note Cover, Reclining Adjuster Inside, LH
2000-05 → —
NHW11 G ¥920
71876-47020-B4 note Cover, Reclining Adjuster Inside, LH
2000-05 → —
NHW11 S ¥920
71876-47020-B4 note Cover, Reclining Adjuster Inside, LH
2000-05 → —
NHW11 S ¥920
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72011-47010 Adjuster Sub-assy, Front Seat, Outer RH
1997-12 → 2000-05 ended
NHW10 ¥32,300
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-47010 Adjuster Sub-assy, Front Seat, Outer LH
1997-12 → 2000-05 ended
NHW10 ¥21,100
72021 — Adjuster Sub-assy, Front Seat, Inner RH
72021-47010 Adjuster Sub-assy, Front Seat, Inner RH
1997-12 → 2000-05 ended
NHW10 ¥21,100
72022 — Adjuster Sub-assy, Front Seat, Inner LH
72022-47010 Adjuster Sub-assy, Front Seat, Inner LH
1997-12 → 2000-05 ended
NHW10 ¥21,100
72130A — Track Assy, Front Seat, Inner RH
72130-47010 Track Assy, Front Seat, Inner RH
1997-12 → 2000-05 ended
NHW10 ¥13,200
72137 — Cover, Seat Track, Outer RH
72137-47010-C0 note Cover, Seat Track, Outer RH
1998-11 → 2000-05 ended
NHW10 ¥940
72137-47010-C0 note Cover, Seat Track, Outer RH
1997-12 → 1998-11 ended
NHW10 ¥940
72137-47020-B0 note Cover, Seat Track, Outer RH
2000-05 → —
NHW11 ¥940
72138 — Cover, Seat Track, Outer LH
72138-47010-C0 note Cover, Seat Track, Outer LH
1997-12 → 1998-11 ended
NHW10 ¥940
72138-47010-C0 note Cover, Seat Track, Outer LH
1998-11 → 2000-05 ended
NHW10 ¥940
72138-47020-B0 note Cover, Seat Track, Outer LH
2000-05 → —
NHW11 ¥940
72157 — Cover, Seat Track Bracket, Inner
72157-47010-C0 note Cover, Seat Track Bracket, Inner
1997-12 → 1998-11 ended
NHW10 ¥740
72157-47010-C0 note Cover, Seat Track Bracket, Inner
1998-11 → 2000-05 ended
NHW10 ¥740
72157-47020-B0 note Cover, Seat Track Bracket, Inner
2000-05 → —
NHW11 ¥1,060
72158 — Cover, Seat Track Bracket, Inner LH
72158-47010-C0 note Cover, Seat Track Bracket, Inner LH
1997-12 → 1998-11 ended
NHW10 ¥740
72158-47010-C0 note Cover, Seat Track Bracket, Inner LH
1998-11 → 2000-05 ended
NHW10 ¥740
72158-47020-B0 note Cover, Seat Track Bracket, Inner LH
2000-05 → —
NHW11 ¥1,060
72201 — Handle Sub-assy, Seat Track
72201-47010 Handle Sub-assy, Seat Track
1997-12 → 2000-05 ended
NHW10 ¥2,060
72201-47010 note Handle Sub-assy, Seat Track
1999-01 → 2000-05 ended
NHW10 ¥2,060
72266 — Cover, Seat Track Upper Rail, LH
72266-47010 Cover, Seat Track Upper Rail, LH
1997-12 → 2000-05 ended
NHW10 ¥940
72345A — Pipe, Reclining Connecting
72345-47010 Pipe, Reclining Connecting
1997-12 → 2000-05 ended
NHW10 ¥2,010
72345-47010 note Pipe, Reclining Connecting
1999-01 → 2000-05 ended
NHW10 ¥2,010
72425 — Bar, Vertical Adjuster Torsion, NO.1
72425-47010 Bar, Vertical Adjuster Torsion, NO.1
1997-12 → 2000-05 ended
NHW10 ¥920
72425A — Bar, Vertical Adjuster Torsion NO.2
72425-47020 Bar, Vertical Adjuster Torsion NO.2
1997-12 → 2000-05 ended
NHW10 ¥920
72441 — Link, Vertical Travel
72441-47010 Link, Vertical Travel
1997-12 → 2000-05 ended
NHW10 ¥1,350
72457 — Knob, Vertical Seat Adjuster
72457-18010-P0 note Knob, Vertical Seat Adjuster
1997-12 → 2000-05 ended
NHW10 ¥1,260
72457-18010-P0 note Knob, Vertical Seat Adjuster
2000-05 → —
NHW11 S ¥1,260
72457-18010-P5 note Knob, Vertical Seat Adjuster
2000-05 → —
NHW11 G ¥1,260
72457-18010-P5 note Knob, Vertical Seat Adjuster
1998-11 → 2000-05 ended
NHW10 ¥1,260
72457-18010-P5 note Knob, Vertical Seat Adjuster
1997-12 → 2000-05 ended
NHW10 ¥1,260
72525A — Handle, Reclining Adjuster Release, RH
72525-16010-P5 note Handle, Reclining Adjuster Release, RH
1997-12 → 2000-05 ended
NHW10 ¥1,260
72525-16010-P5 note Handle, Reclining Adjuster Release, RH
1998-11 → 2000-05 ended
NHW10 ¥1,260
72525-16010-P6 note Handle, Reclining Adjuster Release, RH
1997-12 → 2000-05 ended
NHW10 ¥1,240
72525-47020-B3 note Handle, Reclining Adjuster Release, RH
2000-05 → —
NHW11 G ¥940
72525-47020-B4 note Handle, Reclining Adjuster Release, RH
2000-05 → —
NHW11 S ¥940
72526A — Handle, Reclining Adjuster Release, LH
72526-16010-P5 note Handle, Reclining Adjuster Release, LH
1997-12 → 2000-05 ended
NHW10 ¥1,260
72526-16010-P5 note Handle, Reclining Adjuster Release, LH
1998-11 → 2000-05 ended
NHW10 ¥1,260
72526-16010-P6 note Handle, Reclining Adjuster Release, LH
1997-12 → 2000-05 ended
NHW10 ¥1,240
72526-47020-B3 note Handle, Reclining Adjuster Release, LH
2000-05 → —
NHW11 G ¥940
72526-47020-B4 note Handle, Reclining Adjuster Release, LH
2000-05 → —
NHW11 S ¥940
73515 — Rail, Front Seat Under Tray, NO.1
73515-47010 Rail, Front Seat Under Tray, NO.1
1997-12 → 2000-05 ended
NHW10 ¥4,360
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
