Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

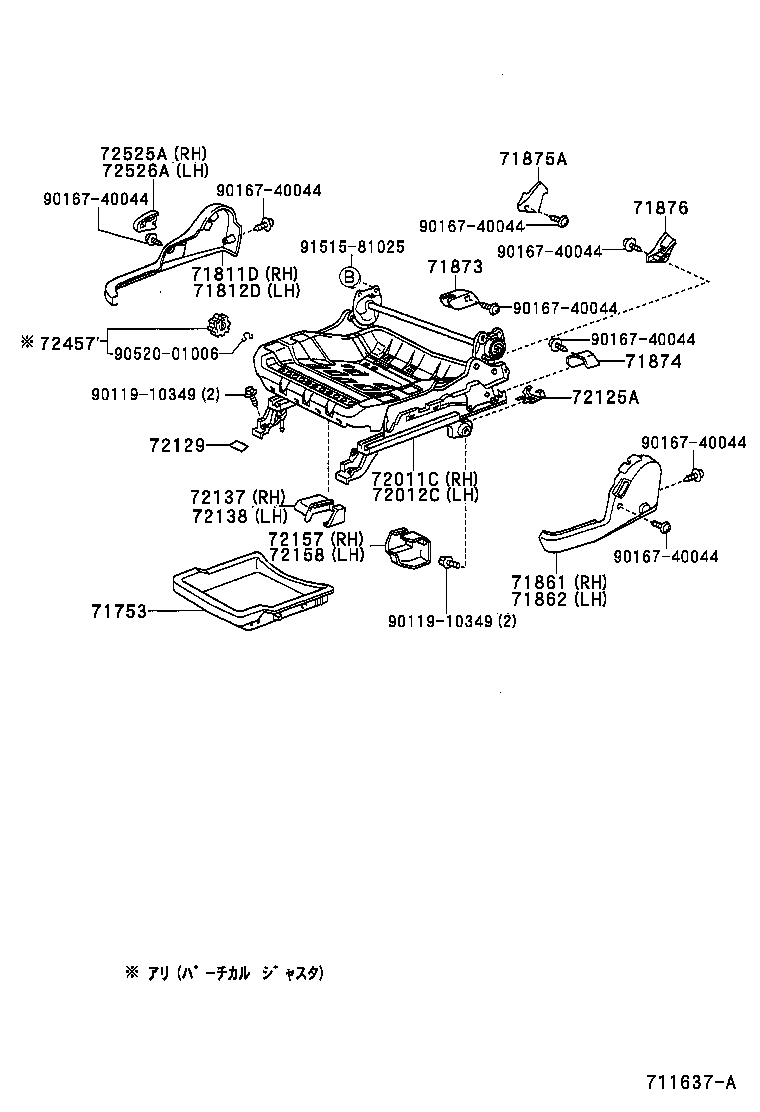

Exploded illustration 711637A 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (5 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (9 parts) 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (5 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (9 parts) 9016740044 — not listed in this catalogue 9151581025 — not listed in this catalogue 9016740044 — not listed in this catalogue 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (5 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (5 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (5 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 72457 — KNOB, VERTICAL SEAT ADJUSTER (5 parts) 9052001006 — not listed in this catalogue 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (5 parts) 9011910349 — not listed in this catalogue 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 9016740044 — not listed in this catalogue 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (1 parts) 72011C — ADJUSTER SUB-ASSY, FRONT SEAT, RH (2 parts) 72012C — ADJUSTER SUB-ASSY, FRONT SEAT, LH (2 parts) 72137 — COVER, SEAT TRACK, OUTER RH (3 parts) 72138 — COVER, SEAT TRACK, OUTER LH (3 parts) 72157 — COVER, SEAT TRACK BRACKET, INNER (3 parts) 72158 — COVER, SEAT TRACK BRACKET, INNER LH (3 parts) 9016740044 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (5 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (5 parts) 71753 — TRAY, FRONT SEAT UNDER (3 parts) 9011910349 — not listed in this catalogue
711637A · 20 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
85 parts on this figure
Part number Description Fitment Price
71753 — Tray, Front Seat Under
71753-13020-C0 note Tray, Front Seat Under
1998-11 → 2000-05 ended
NHW10 ¥9,100
71753-13020-C0 note Tray, Front Seat Under
1997-12 → 1998-11 ended
NHW10 ¥9,100
71753-52010 Tray, Front Seat Under
2000-05 → —
NHW11 ¥3,760
71811D — Shield, Front Seat Cushion, RH
71811-47020-B0 note Shield, Front Seat Cushion, RH
1997-12 → 2000-05 ended
NHW10 ¥3,910
71811-47020-B0 note Shield, Front Seat Cushion, RH
1998-11 → 2000-05 ended
NHW10 ¥3,910
71811-47020-B1 note Shield, Front Seat Cushion, RH
1997-12 → 2000-05 ended
NHW10 ¥3,910
71811-47030-B2 note Shield, Front Seat Cushion, RH
2000-05 → —
NHW11 G ¥3,890
71811-47030-B3 note Shield, Front Seat Cushion, RH
2000-05 → —
NHW11 S ¥3,890
71812D — Shield, Front Seat Cushion, LH
71812-47020-B0 note Shield, Front Seat Cushion, LH
1997-12 → 2000-05 ended
NHW10 ¥4,130
71812-47020-B0 note Shield, Front Seat Cushion, LH
1998-11 → 2000-05 ended
NHW10 ¥4,130
71812-47020-B1 note Shield, Front Seat Cushion, LH
1997-12 → 2000-05 ended
NHW10 ¥4,130
71812-47030-B2 note Shield, Front Seat Cushion, LH
2000-05 → —
NHW11 G ¥3,890
71812-47030-B3 note Shield, Front Seat Cushion, LH
2000-05 → —
NHW11 S ¥3,890
71861 — Shield, Front Seat Cushion, Inner RH
71861-47010-B0 note Shield, Front Seat Cushion, Inner RH
1997-12 → 2000-05 ended
NHW10 ¥3,150
71861-47010-B0 note Shield, Front Seat Cushion, Inner RH
1998-11 → 2000-05 ended
NHW10 ¥3,150
71861-47010-B1 note Shield, Front Seat Cushion, Inner RH
1997-12 → 2000-05 ended
NHW10 ¥3,150
71861-47030-B0 note Shield, Front Seat Cushion, Inner RH
2000-05 → —
NHW11 G ¥3,710
71861-47030-B1 note Shield, Front Seat Cushion, Inner RH
2000-05 → —
NHW11 S ¥3,710
71862 — Shield, Front Seat Cushion, Inner LH
71862-47010-B0 note Shield, Front Seat Cushion, Inner LH
1997-12 → 2000-05 ended
NHW10 ¥3,500
71862-47010-B0 note Shield, Front Seat Cushion, Inner LH
1998-11 → 2000-05 ended
NHW10 ¥3,500
71862-47010-B1 note Shield, Front Seat Cushion, Inner LH
1997-12 → 2000-05 ended
NHW10 ¥3,500
71862-47020-B2 note Shield, Front Seat Cushion, Inner LH
2000-05 → —
NHW11 G ¥3,890
71862-47020-B3 note Shield, Front Seat Cushion, Inner LH
2000-05 → —
NHW11 S ¥3,890
71873 — Shield, Front Seat Cushion, Lower RH
71873-47010-B0 note Shield, Front Seat Cushion, Lower RH
1998-11 → 2000-05 ended
NHW10 ¥1,800
71873-47010-B0 note Shield, Front Seat Cushion, Lower RH
1997-12 → 2000-05 ended
NHW10 ¥1,800
71873-47010-B1 note Shield, Front Seat Cushion, Lower RH
1997-12 → 2000-05 ended
NHW10 ¥1,800
71873-47020-B2 note Shield, Front Seat Cushion, Lower RH
2000-05 → —
NHW11 G ¥740
71873-47020-B3 note Shield, Front Seat Cushion, Lower RH
2000-05 → —
NHW11 S ¥740
71874 — Shield, Front Seat Cushion, Lower LH
71874-47010-B0 note Shield, Front Seat Cushion, Lower LH
1997-12 → 2000-05 ended
NHW10 ¥1,460
71874-47010-B0 note Shield, Front Seat Cushion, Lower LH
1998-11 → 2000-05 ended
NHW10 ¥1,460
71874-47010-B1 note Shield, Front Seat Cushion, Lower LH
1997-12 → 2000-05 ended
NHW10 ¥1,460
71874-47020-B0 note Shield, Front Seat Cushion, Lower LH
2000-05 → —
NHW11 G ¥740
71874-47020-B1 note Shield, Front Seat Cushion, Lower LH
2000-05 → —
NHW11 S ¥740
71875A — Cover, Reclining Adjuster Inside, RH
71875-47010-B0 note Cover, Reclining Adjuster Inside, RH
1997-12 → 2000-05 ended
NHW10 ¥1,750
71875-47010-B0 note Cover, Reclining Adjuster Inside, RH
1999-01 → 2000-05 ended
NHW10 ¥1,750
71875-47010-B0 note Cover, Reclining Adjuster Inside, RH
1998-11 → 2000-05 ended
NHW10 ¥1,750
71875-47010-B1 note Cover, Reclining Adjuster Inside, RH
1997-12 → 2000-05 ended
NHW10 ¥1,750
71875-47010-B1 note Cover, Reclining Adjuster Inside, RH
1999-01 → 2000-05 ended
NHW10 ¥1,750
71875-47020-B3 note Cover, Reclining Adjuster Inside, RH
2000-05 → —
NHW11 G ¥860
71875-47020-B3 note Cover, Reclining Adjuster Inside, RH
2000-05 → —
NHW11 G ¥860
71875-47020-B4 note Cover, Reclining Adjuster Inside, RH
2000-05 → —
NHW11 S ¥860
71875-47020-B4 note Cover, Reclining Adjuster Inside, RH
2000-05 → —
NHW11 S ¥860
71876 — Cover, Reclining Adjuster Inside, LH
71876-47010-B0 note Cover, Reclining Adjuster Inside, LH
1997-12 → 2000-05 ended
NHW10 ¥1,750
71876-47010-B0 note Cover, Reclining Adjuster Inside, LH
1999-01 → 2000-05 ended
NHW10 ¥1,750
71876-47010-B0 note Cover, Reclining Adjuster Inside, LH
1998-11 → 2000-05 ended
NHW10 ¥1,750
71876-47010-B1 note Cover, Reclining Adjuster Inside, LH
1997-12 → 2000-05 ended
NHW10 ¥1,750
71876-47010-B1 note Cover, Reclining Adjuster Inside, LH
1999-01 → 2000-05 ended
NHW10 ¥1,750
71876-47020-B3 note Cover, Reclining Adjuster Inside, LH
2000-05 → —
NHW11 G ¥920
71876-47020-B3 note Cover, Reclining Adjuster Inside, LH
2000-05 → —
NHW11 G ¥920
71876-47020-B4 note Cover, Reclining Adjuster Inside, LH
2000-05 → —
NHW11 S ¥920
71876-47020-B4 note Cover, Reclining Adjuster Inside, LH
2000-05 → —
NHW11 S ¥920
72011C — Adjuster Sub-assy, Front Seat, RH
72010-47010 Adjuster Sub-assy, Front Seat, RH
2000-05 → 2001-08 ended
NHW11 ¥54,500
72010-47011 Adjuster Sub-assy, Front Seat, RH
2001-08 → —
NHW11 ¥54,500
72012C — Adjuster Sub-assy, Front Seat, LH
72020-47010 Adjuster Sub-assy, Front Seat, LH
2000-05 → 2001-08 ended
NHW11 ¥49,400
72020-47011 Adjuster Sub-assy, Front Seat, LH
2001-08 → —
NHW11 ¥49,400
72125A — Cover, Seat Track, Upper Rear
72125-28030 note Cover, Seat Track, Upper Rear
2000-05 → —
NHW11 ¥110
72125-28030 Cover, Seat Track, Upper Rear
2000-05 → —
NHW11 S ¥110
72129 — Protector, Seat Track Lower Rail, NO.1
72129-47020 Protector, Seat Track Lower Rail, NO.1
2001-08 → —
NHW11 ¥120
72137 — Cover, Seat Track, Outer RH
72137-47010-C0 note Cover, Seat Track, Outer RH
1997-12 → 1998-11 ended
NHW10 ¥940
72137-47010-C0 note Cover, Seat Track, Outer RH
1998-11 → 2000-05 ended
NHW10 ¥940
72137-47020-B0 note Cover, Seat Track, Outer RH
2000-05 → —
NHW11 ¥940
72138 — Cover, Seat Track, Outer LH
72138-47010-C0 note Cover, Seat Track, Outer LH
1997-12 → 1998-11 ended
NHW10 ¥940
72138-47010-C0 note Cover, Seat Track, Outer LH
1998-11 → 2000-05 ended
NHW10 ¥940
72138-47020-B0 note Cover, Seat Track, Outer LH
2000-05 → —
NHW11 ¥940
72157 — Cover, Seat Track Bracket, Inner
72157-47010-C0 note Cover, Seat Track Bracket, Inner
1997-12 → 1998-11 ended
NHW10 ¥740
72157-47010-C0 note Cover, Seat Track Bracket, Inner
1998-11 → 2000-05 ended
NHW10 ¥740
72157-47020-B0 note Cover, Seat Track Bracket, Inner
2000-05 → —
NHW11 ¥1,060
72158 — Cover, Seat Track Bracket, Inner LH
72158-47010-C0 note Cover, Seat Track Bracket, Inner LH
1997-12 → 1998-11 ended
NHW10 ¥740
72158-47010-C0 note Cover, Seat Track Bracket, Inner LH
1998-11 → 2000-05 ended
NHW10 ¥740
72158-47020-B0 note Cover, Seat Track Bracket, Inner LH
2000-05 → —
NHW11 ¥1,060
72457 — Knob, Vertical Seat Adjuster
72457-18010-P0 note Knob, Vertical Seat Adjuster
1997-12 → 2000-05 ended
NHW10 ¥1,260
72457-18010-P0 note Knob, Vertical Seat Adjuster
2000-05 → —
NHW11 S ¥1,260
72457-18010-P5 note Knob, Vertical Seat Adjuster
1997-12 → 2000-05 ended
NHW10 ¥1,260
72457-18010-P5 note Knob, Vertical Seat Adjuster
1998-11 → 2000-05 ended
NHW10 ¥1,260
72457-18010-P5 note Knob, Vertical Seat Adjuster
2000-05 → —
NHW11 G ¥1,260
72525A — Handle, Reclining Adjuster Release, RH
72525-16010-P5 note Handle, Reclining Adjuster Release, RH
1997-12 → 2000-05 ended
NHW10 ¥1,260
72525-16010-P5 note Handle, Reclining Adjuster Release, RH
1998-11 → 2000-05 ended
NHW10 ¥1,260
72525-16010-P6 note Handle, Reclining Adjuster Release, RH
1997-12 → 2000-05 ended
NHW10 ¥1,240
72525-47020-B3 note Handle, Reclining Adjuster Release, RH
2000-05 → —
NHW11 G ¥940
72525-47020-B4 note Handle, Reclining Adjuster Release, RH
2000-05 → —
NHW11 S ¥940
72526A — Handle, Reclining Adjuster Release, LH
72526-16010-P5 note Handle, Reclining Adjuster Release, LH
1997-12 → 2000-05 ended
NHW10 ¥1,260
72526-16010-P5 note Handle, Reclining Adjuster Release, LH
1998-11 → 2000-05 ended
NHW10 ¥1,260
72526-16010-P6 note Handle, Reclining Adjuster Release, LH
1997-12 → 2000-05 ended
NHW10 ¥1,240
72526-47020-B3 note Handle, Reclining Adjuster Release, LH
2000-05 → —
NHW11 G ¥940
72526-47020-B4 note Handle, Reclining Adjuster Release, LH
2000-05 → —
NHW11 S ¥940
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
