Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

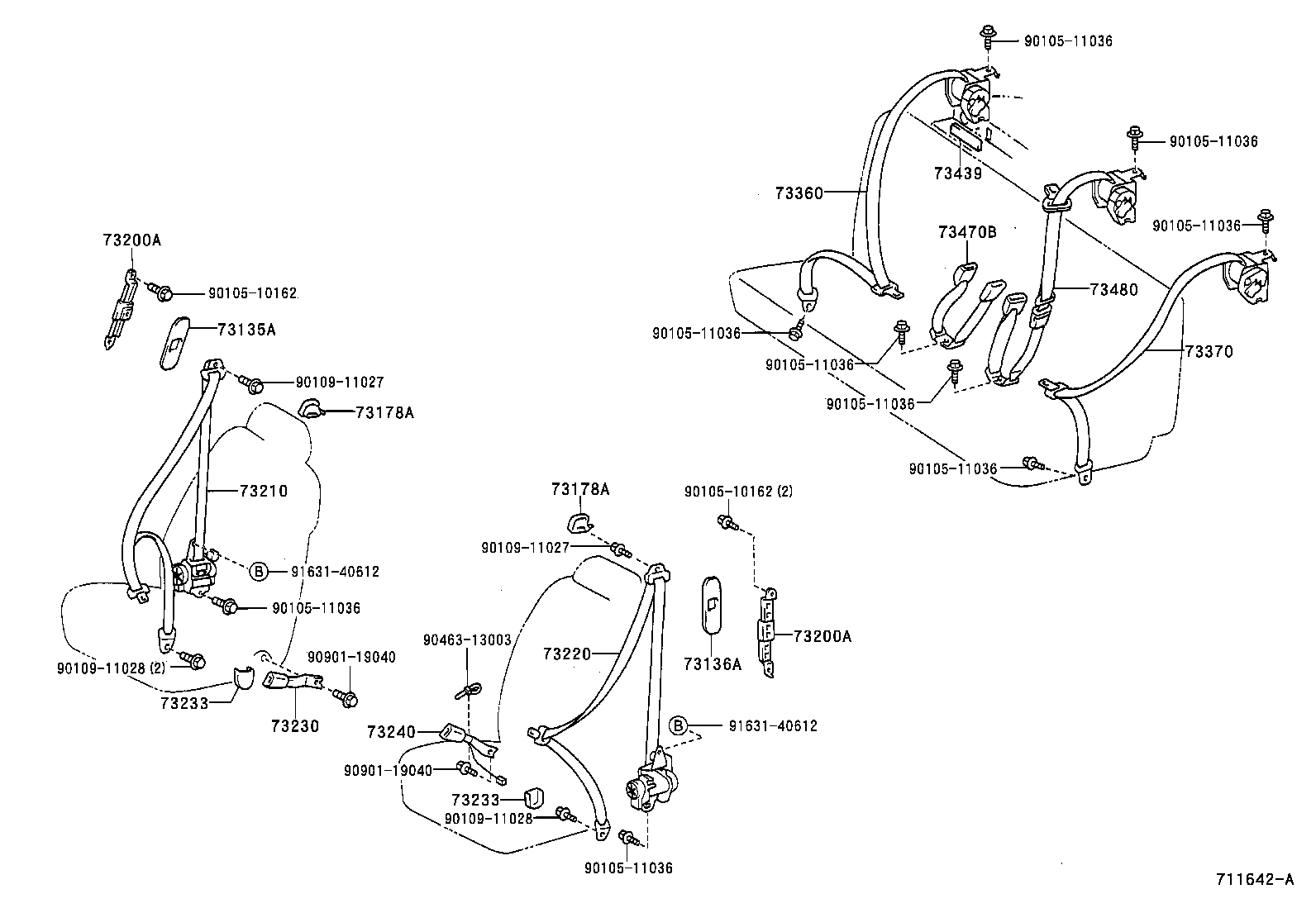

Exploded illustration 711642A 9010511036 — not listed in this catalogue 9010511036 — not listed in this catalogue 73439 — CUSHION, REAR SEAT BELT RETRACTOR (1 parts) 73360 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH (4 parts) 9010511036 — not listed in this catalogue 73470B — BELT ASSY, REAR SEAT INNER W/CENTER, RH (1 parts) 73200A — ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR (3 parts) 73480 — BELT ASSY, REAR SEAT INNER W/CENTER, LH (2 parts) 9010510162 — not listed in this catalogue 73135A — COVER, SHOULDER BELT ANCHOR, RH (3 parts) 9010511036 — not listed in this catalogue 73370 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH (4 parts) 9010511036 — not listed in this catalogue 9010911027 — not listed in this catalogue 9010511036 — not listed in this catalogue 73178A — CAP, SEAT BELT ANCHOR COVER (3 parts) 9010511036 — not listed in this catalogue 73178A — CAP, SEAT BELT ANCHOR COVER (3 parts) 73210 — BELT ASSY, FRONT SEAT OUTER, RH (3 parts) 9010510162 — not listed in this catalogue 9010911027 — not listed in this catalogue 9163140612 — not listed in this catalogue 9010511036 — not listed in this catalogue 73200A — ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR (3 parts) 9046313003 — not listed in this catalogue 73220 — BELT ASSY, FRONT SEAT OUTER, LH (4 parts) 9090119040 — not listed in this catalogue 73136A — COVER, SHOULDER BELT ANCHOR, LH (3 parts) 9010911028 — not listed in this catalogue 73233 — COVER, LAP BELT OUTER ANCHOR (3 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (3 parts) 9163140612 — not listed in this catalogue 73240 — BELT ASSY, FRONT SEAT INNER, LH (3 parts) 9090119040 — not listed in this catalogue 73233 — COVER, LAP BELT OUTER ANCHOR (3 parts) 9010911028 — not listed in this catalogue 9010511036 — not listed in this catalogue
711642A · 17 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
73135A — Cover, Shoulder Belt Anchor, RH
73135-12030-B6 note Cover, Shoulder Belt Anchor, RH
1998-11 → 2000-05 ended
NHW10 ¥760
73135-12030-B6 note Cover, Shoulder Belt Anchor, RH
1997-12 → 1998-11 ended
NHW10 ¥760
73135-12030-B6 note Cover, Shoulder Belt Anchor, RH
2000-05 → —
NHW11 ¥760
73136A — Cover, Shoulder Belt Anchor, LH
73135-12030-B6 note Cover, Shoulder Belt Anchor, LH
1997-12 → 1998-11 ended
NHW10 ¥760
73135-12030-B6 note Cover, Shoulder Belt Anchor, LH
1998-11 → 2000-05 ended
NHW10 ¥760
73135-12030-B6 note Cover, Shoulder Belt Anchor, LH
2000-05 → —
NHW11 ¥760
73178A — Cap, Seat Belt Anchor Cover
73178-21010-B2 note Cap, Seat Belt Anchor Cover
1997-12 → 1998-11 ended
NHW10 ¥350
73178-21010-B2 note Cap, Seat Belt Anchor Cover
1998-11 → 2000-05 ended
NHW10 ¥350
73178-33020-B7 note Cap, Seat Belt Anchor Cover
2000-05 → —
NHW11 ¥550
73200A — Adjuster Assy, Front Shoulder Belt Anchor
73200-12050-B5 note Adjuster Assy, Front Shoulder Belt Anchor
2000-05 → —
NHW11 ¥5,100
73200-12050-B5 note Adjuster Assy, Front Shoulder Belt Anchor
1998-11 → 2000-05 ended
NHW10 ¥5,100
73200-12050-B5 note Adjuster Assy, Front Shoulder Belt Anchor
1997-12 → 1998-11 ended
NHW10 ¥5,100
73210 — Belt Assy, Front Seat Outer, RH
73210-47010-B0 note Belt Assy, Front Seat Outer, RH
1997-12 → 1998-11 ended
NHW10 ¥37,800
73210-47010-B0 note Belt Assy, Front Seat Outer, RH
1998-11 → 2000-05 ended
NHW10 ¥37,800
73210-47040-B0 note Belt Assy, Front Seat Outer, RH
2000-05 → —
NHW11 ¥37,800
73220 — Belt Assy, Front Seat Outer, LH
73220-47010-B0 note Belt Assy, Front Seat Outer, LH
1997-12 → 1998-11 ended
NHW10 ¥37,800
73220-47010-B0 note Belt Assy, Front Seat Outer, LH
1998-11 → 2000-05 ended
NHW10 ¥37,800
73220-47030-B0 note Belt Assy, Front Seat Outer, LH
2000-05 → 2001-08 ended
NHW11 ¥37,800
73220-47031-B0 note Belt Assy, Front Seat Outer, LH
2001-08 → —
NHW11 ¥37,800
73230 — Belt Assy, Front Seat Inner, RH
73230-47010-B0 note Belt Assy, Front Seat Inner, RH
1998-11 → 2000-05 ended
NHW10 ¥5,800
73230-47010-B0 note Belt Assy, Front Seat Inner, RH
1997-12 → 1998-11 ended
NHW10 ¥5,800
73230-47030-B0 note Belt Assy, Front Seat Inner, RH
2000-05 → —
NHW11 ¥5,800
73233 — Cover, Lap Belt Outer Anchor
73233-33010-C0 note Cover, Lap Belt Outer Anchor
1997-12 → 1998-11 ended
NHW10 ¥330
73233-33010-C0 note Cover, Lap Belt Outer Anchor
1998-11 → 2000-05 ended
NHW10 ¥330
73233-33010-C0 note Cover, Lap Belt Outer Anchor
2000-05 → —
NHW11 ¥330
73240 — Belt Assy, Front Seat Inner, LH
73240-47010-B0 note Belt Assy, Front Seat Inner, LH
1997-12 → 1998-11 ended
NHW10 ¥5,800
73240-47010-B0 note Belt Assy, Front Seat Inner, LH
1998-11 → 2000-05 ended
NHW10 ¥5,800
73240-47020-B0 note Belt Assy, Front Seat Inner, LH
2000-05 → —
NHW11 ¥5,800
73360 — Belt Assy, Rear Seat 3 Point Type, Outer RH
73360-47010-B0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
1997-12 → 1998-11 ended
NHW10 ¥23,800
73360-47010-B0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
1998-11 → 2000-05 ended
NHW10 ¥23,800
73360-47030-B0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2000-05 → 2001-08 ended
NHW11 ¥23,800
73360-47031-B0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2001-08 → —
NHW11 ¥23,800
73370 — Belt Assy, Rear Seat 3 Point Type, Outer LH
73360-47010-B0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
1997-12 → 1998-11 ended
NHW10 ¥23,800
73360-47010-B0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
1998-11 → 2000-05 ended
NHW10 ¥23,800
73360-47030-B0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2000-05 → 2001-08 ended
NHW11 ¥23,800
73360-47031-B0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2001-08 → —
NHW11 ¥23,800
73439 — Cushion, Rear Seat Belt Retractor
73439-12040 Cushion, Rear Seat Belt Retractor
2000-05 → —
NHW11 ¥160
73470B — Belt Assy, Rear Seat Inner W/Center, RH
73470-47030-B0 note Belt Assy, Rear Seat Inner W/Center, RH
2000-05 → —
NHW11 ¥5,800
73480 — Belt Assy, Rear Seat Inner W/Center, LH
73480-47030-B0 note Belt Assy, Rear Seat Inner W/Center, LH
2000-05 → 2001-08 ended
NHW11 ¥26,500
73480-47031-B0 note Belt Assy, Rear Seat Inner W/Center, LH
2001-08 → —
NHW11 ¥26,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
