Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

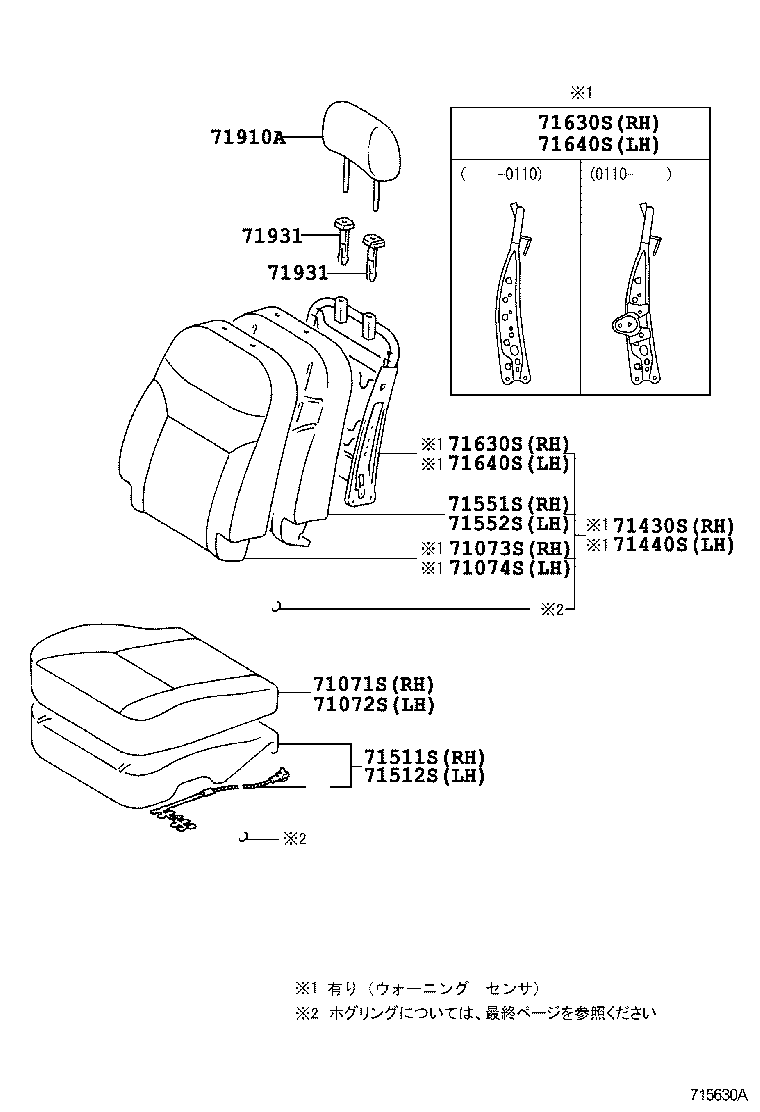

Exploded illustration 715630A 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 71910A — HEADREST ASSY, FRONT SEAT (13 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (3 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (3 parts) 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (3 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (3 parts) 71430S — BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (11 parts) 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (11 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (2 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (11 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (11 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (8 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (8 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (2 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (2 parts)
715630A · 17 callouts Full size ↗
97 parts on this figure
Part number Description Fitment Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-47010-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥27,900
71071-47010-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥27,900
71071-47020-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1998-11 → 2000-05 ended
NHW10 ¥40,800
71071-47030-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-05 → 2002-08 ended
NHW11 G ¥40,800
71071-47040-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-05 → —
NHW11 S ¥27,900
71071-47080-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-12 → 2001-12 ended
NHW11 S ¥40,800
71071-47080-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2002-01 → 2002-12 ended
NHW11 S ¥40,800
71071-47080-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2002-08 → —
NHW11 G ¥40,800
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71071-47050-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-05 → 2002-08 ended
NHW11 G ¥40,800
71071-47090-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-12 → 2001-12 ended
NHW11 S ¥40,800
71071-47090-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2002-08 → —
NHW11 G ¥40,800
71071-47090-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2002-01 → 2002-12 ended
NHW11 S ¥40,800
71072-47010-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥27,900
71072-47010-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥27,900
71072-47020-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1998-11 → 2000-05 ended
NHW10 ¥40,800
71072-47060-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-05 → —
NHW11 S ¥27,900
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-47020-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥40,300
71073-47020-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥40,300
71073-47030-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1998-11 → 2000-05 ended
NHW10 ¥57,900
71073-47040-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-05 → 2001-10 ended
NHW11 G ¥57,900
71073-47041-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-10 → 2002-08 ended
NHW11 G ¥57,900
71073-47050-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-05 → 2001-10 ended
NHW11 S ¥40,300
71073-47051-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-10 → —
NHW11 S ¥40,300
71073-47070-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-12 → 2001-10 ended
NHW11 S ¥57,900
71073-47071-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-10 → 2001-12 ended
NHW11 S ¥57,900
71073-47071-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-01 → 2002-12 ended
NHW11 S ¥57,900
71073-47071-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-08 → —
NHW11 G ¥57,900
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71073-47020-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥40,300
71073-47020-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥40,300
71073-47030-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1998-11 → 2000-05 ended
NHW10 ¥57,900
71073-47040-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-05 → 2001-10 ended
NHW11 G ¥57,900
71073-47041-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-10 → 2002-08 ended
NHW11 G ¥57,900
71073-47050-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-05 → 2001-10 ended
NHW11 S ¥40,300
71073-47051-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-10 → —
NHW11 S ¥40,300
71073-47070-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-12 → 2001-10 ended
NHW11 S ¥57,900
71073-47071-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2001-10 → 2001-12 ended
NHW11 S ¥57,900
71073-47071-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2002-01 → 2002-12 ended
NHW11 S ¥57,900
71073-47071-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2002-08 → —
NHW11 G ¥57,900
71430S — Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430-47020-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥86,800
71430-47020-B1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥86,800
71430-47030-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1998-11 → 2000-05 ended
NHW10 ¥105,000
71430-47040-K0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-05 → 2001-10 ended
NHW11 G ¥105,000
71430-47041-K0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2001-10 → 2002-08 ended
NHW11 G ¥105,000
71430-47050-K0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-05 → 2001-10 ended
NHW11 S ¥86,800
71430-47051-K0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2001-10 → —
NHW11 S ¥86,800
71430-47070-K0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-12 → 2001-10 ended
NHW11 S ¥105,000
71430-47071-K0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2002-08 → —
NHW11 G ¥105,000
71430-47071-K0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2001-10 → 2001-12 ended
NHW11 S ¥105,000
71430-47071-K0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2002-01 → 2002-12 ended
NHW11 S ¥105,000
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71430-47020-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥86,800
71430-47020-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥86,800
71430-47030-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1998-11 → 2000-05 ended
NHW10 ¥105,000
71430-47040-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-05 → 2001-10 ended
NHW11 G ¥105,000
71430-47041-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2001-10 → 2002-08 ended
NHW11 G ¥105,000
71430-47050-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-05 → 2001-10 ended
NHW11 S ¥86,800
71430-47051-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2001-10 → —
NHW11 S ¥86,800
71430-47070-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-12 → 2001-10 ended
NHW11 S ¥105,000
71430-47071-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2001-10 → 2001-12 ended
NHW11 S ¥105,000
71430-47071-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2002-01 → 2002-12 ended
NHW11 S ¥105,000
71430-47071-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2002-08 → —
NHW11 G ¥105,000
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-47010 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥17,300
71511-47020 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-05 → —
NHW11 ¥18,200
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71052-47010 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥26,500
71052-47020 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2000-05 → —
NHW11 ¥26,500
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-47020 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥18,100
71551-47030 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2000-05 → —
NHW11 ¥13,300
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71551-47020 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥18,100
71551-47030 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2000-05 → —
NHW11 ¥13,300
71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71630-47010 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2000-05 → 2001-10 ended
NHW11 ¥18,600
71630-47020 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥10,700
71630-63030 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2001-10 → —
NHW11 ¥18,600
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71630-47010 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2000-05 → 2001-10 ended
NHW11 ¥18,600
71630-47020 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1997-12 → 2000-05 ended
NHW10 ¥10,700
71630-63030 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2001-10 → —
NHW11 ¥18,600
71910A — Headrest Assy, Front Seat
71910-47010-B0 note Headrest Assy, Front Seat
1997-12 → 2000-05 ended
NHW10 ¥29,600
71910-47010-B0 note Headrest Assy, Front Seat
1999-01 → 2000-05 ended
NHW10 ¥29,600
71910-47010-K0 note Headrest Assy, Front Seat
1997-12 → 2000-05 ended
NHW10 ¥29,600
71910-47010-K0 note Headrest Assy, Front Seat
1999-01 → 2000-05 ended
NHW10 ¥29,600
71910-47020-B0 note Headrest Assy, Front Seat
1998-11 → 2000-05 ended
NHW10 ¥37,400
71910-47020-B0 note Headrest Assy, Front Seat
2000-12 → 2001-12 ended
NHW11 S ¥37,400
71910-47020-B0 note Headrest Assy, Front Seat
2002-01 → 2002-12 ended
NHW11 S ¥37,400
71910-47020-B0 note Headrest Assy, Front Seat
2002-08 → —
NHW11 G ¥37,400
71910-47020-B0 note Headrest Assy, Front Seat
2002-08 → —
NHW11 G ¥37,400
71910-47030-B1 note Headrest Assy, Front Seat
2000-05 → 2002-08 ended
NHW11 G ¥27,600
71910-47030-B1 note Headrest Assy, Front Seat
2000-05 → 2002-08 ended
NHW11 G ¥27,600
71910-47040-B0 note Headrest Assy, Front Seat
2000-05 → —
NHW11 S ¥27,600
71910-47040-B0 note Headrest Assy, Front Seat
2000-05 → —
NHW11 S ¥27,600
71931 — Support, Front Seat Headrest
71930-28040-B6 note Support, Front Seat Headrest
1997-12 → 1998-11 ended
NHW10 ¥1,240
71930-28040-B6 note Support, Front Seat Headrest
1998-11 → 2000-05 ended
NHW10 ¥1,240
71930-28040-B6 note Support, Front Seat Headrest
1999-01 → 2000-05 ended
NHW10 ¥1,240
71930-47010-B0 note Support, Front Seat Headrest
2000-05 → —
NHW11 ¥1,240
71930-47010-B0 note Support, Front Seat Headrest
2000-05 → —
NHW11 ¥1,240
71931-28050-B6 note Support, Front Seat Headrest
1997-12 → 1998-11 ended
NHW10 ¥750
71931-28050-B6 note Support, Front Seat Headrest
1998-11 → 2000-05 ended
NHW10 ¥750
71931-28050-B6 note Support, Front Seat Headrest
1999-01 → 2000-05 ended
NHW10 ¥750
71931-47010-B0 note Support, Front Seat Headrest
2000-05 → —
NHW11 ¥760
71931-47010-B0 note Support, Front Seat Headrest
2000-05 → —
NHW11 ¥760
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
