Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

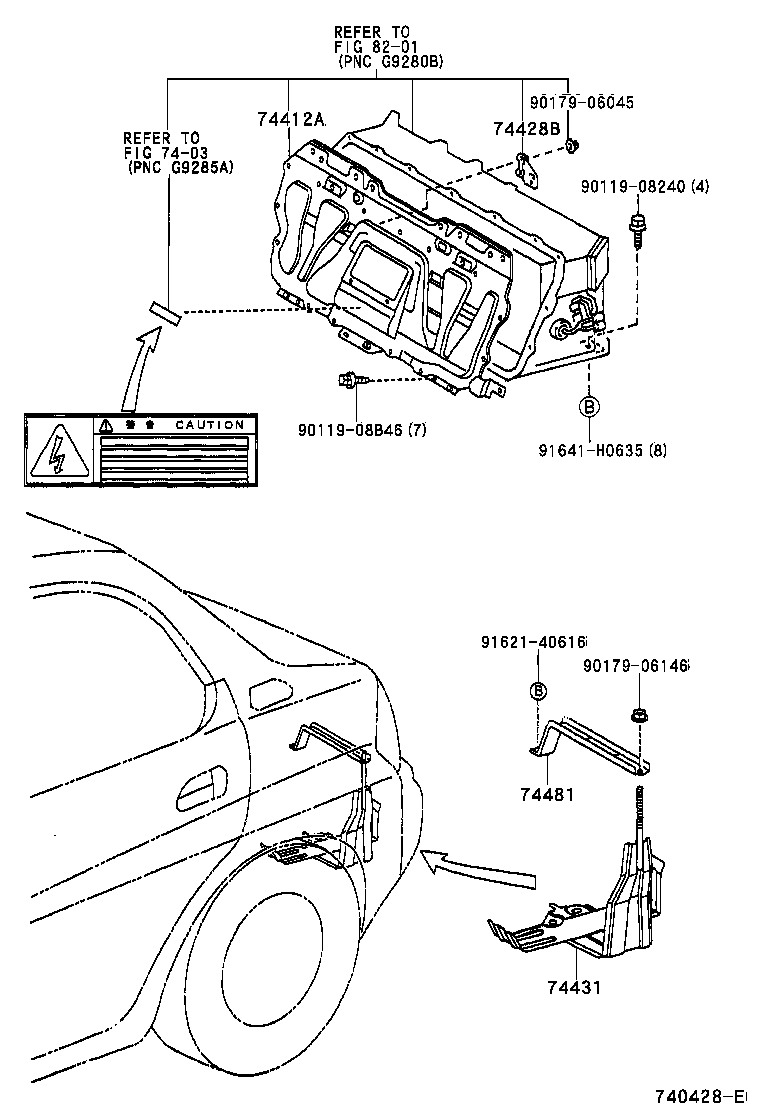

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74412A — Carrier, Battery, NO.2 | ||||
| 74412-47010 |
Carrier, Battery, NO.2
1997-12 → 2000-05
ended
|
NHW10 | ¥16,700 | |
| 74428B — Bracket, Battery Carrier Catch, NO.2 | ||||
| 74428-47010 |
Bracket, Battery Carrier Catch, NO.2
1999-06 → 2000-05
ended
|
NHW10 | ¥470 | |
| 74431 — Tray, Battery | ||||
| 74402-47010 |
Tray, Battery
1997-12 → 2000-05
ended
|
NHW10 | ¥2,150 | |
| 74402-47030 |
Tray, Battery
2000-05 → —
|
NHW11 | ¥2,120 | |
| 74481 — Clamp, Battery Hold Down | ||||
| 74481-47010 |
Clamp, Battery Hold Down
1997-12 → —
|
NHW1# | ¥920 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
