Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

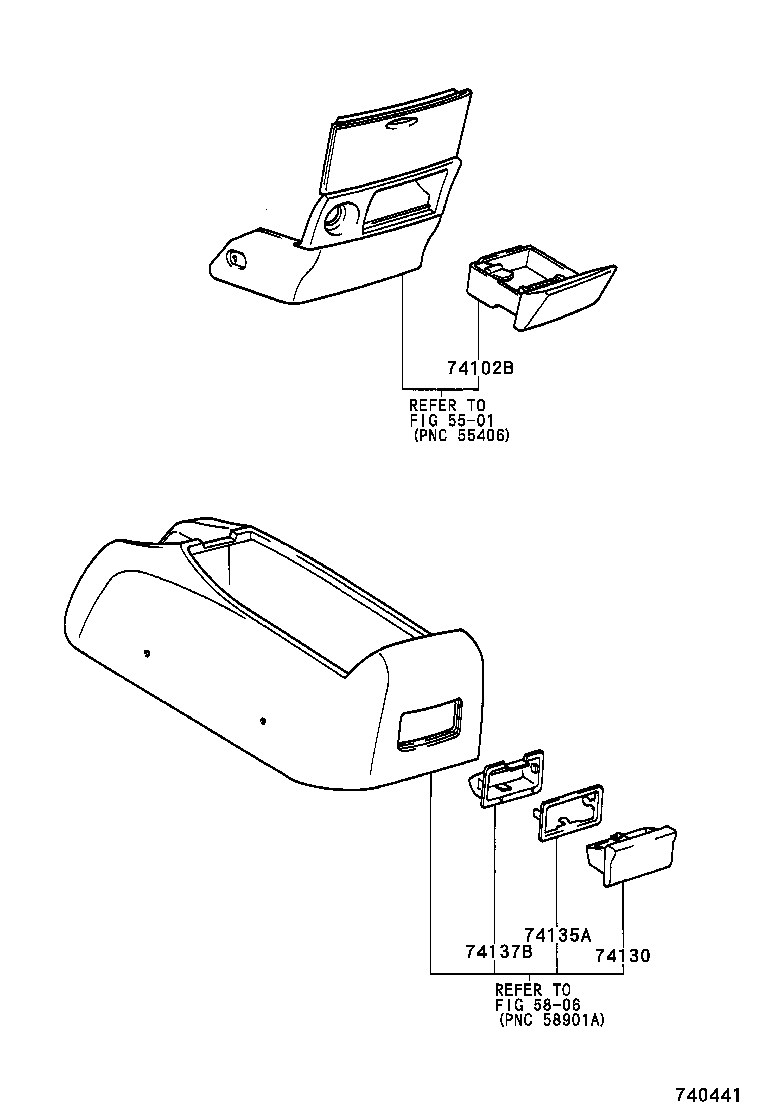

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74102B — Box Sub-assy, Front Ash Receptacle | ||||
| 74102-47010-B0 note |
Box Sub-assy, Front Ash Receptacle
1997-12 → 1998-11
ended
|
NHW10 | ¥4,430 | |
| 74102-47010-B0 note |
Box Sub-assy, Front Ash Receptacle
1998-11 → 2000-05
ended
|
NHW10 | ¥4,430 | |
| 74102-47010-B0 note |
Box Sub-assy, Front Ash Receptacle
2000-05 → —
|
NHW11 | ¥4,430 | |
| 74130 — Receptacle Assy, Rear Ash | ||||
| 74109-12020-B5 note |
Receptacle Assy, Rear Ash
1997-12 → 1998-11
ended
|
NHW10 | ¥4,180 | |
| 74109-12020-B5 note |
Receptacle Assy, Rear Ash
1998-11 → 2000-05
ended
|
NHW10 | ¥4,180 | |
| 74109-12020-B5 note |
Receptacle Assy, Rear Ash
2000-05 → —
|
NHW11 | ¥4,180 | |
| 74135A — Retainer, Rear Ash Receptacle, NO.1 | ||||
| 74135-12040 |
Retainer, Rear Ash Receptacle, NO.1
1997-12 → —
|
NHW1# | ¥320 | |
| 74137B — Retainer, Rear Ash Receptacle, Inner | ||||
| 74137-12010 |
Retainer, Rear Ash Receptacle, Inner
1997-12 → —
|
NHW1# | ¥670 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
