Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

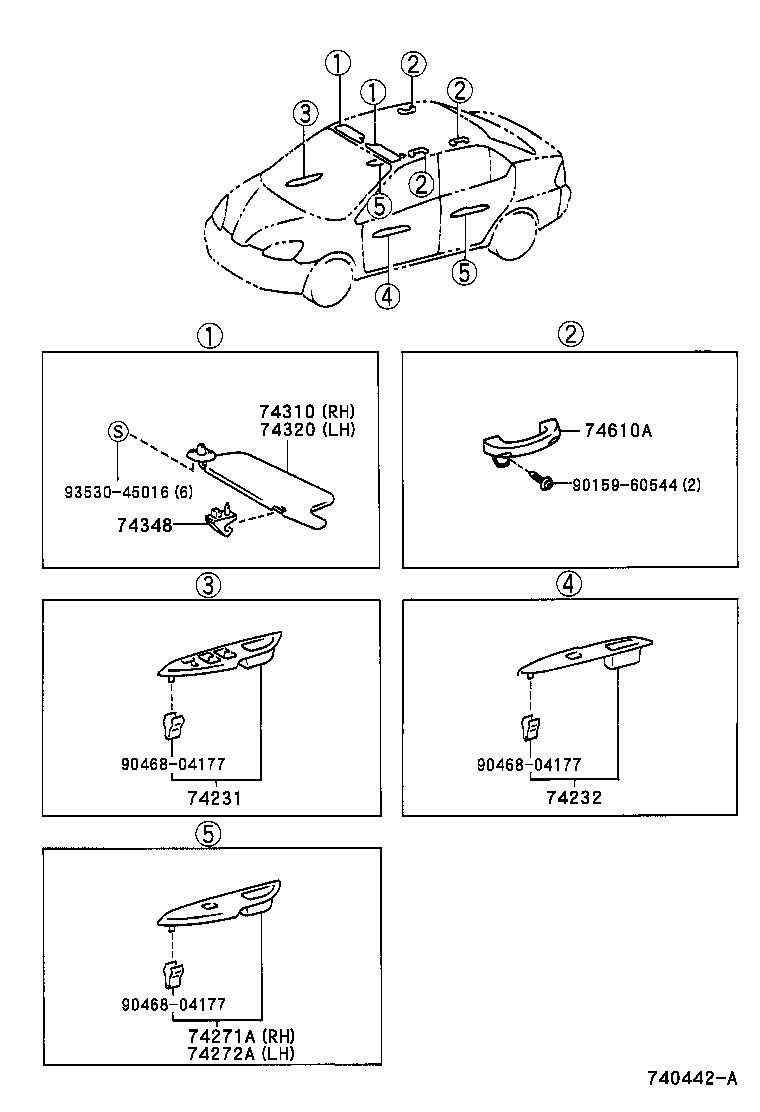

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

36 parts on this figure

Part number	Description	Fitment	Price
74231 — Panel, Front Armrest Base, Upper RH
74231-47010-B0 note	Panel, Front Armrest Base, Upper RH 1997-12 → 2000-05 ended	NHW10	¥3,050
74231-47020-B0 note	Panel, Front Armrest Base, Upper RH 1998-11 → 2000-05 ended	NHW10	¥6,100
74231-47020-B0 note	Panel, Front Armrest Base, Upper RH 2000-05 → —	NHW11	¥6,100
74231-47050 note	Panel, Front Armrest Base, Upper RH 2002-01 → 2002-12 ended	NHW11 S	¥6,100
74231-47050 note	Panel, Front Armrest Base, Upper RH 2002-08 → 2003-03 ended	NHW11	¥6,100
74231-47050 note	Panel, Front Armrest Base, Upper RH 2000-12 → 2001-12 ended	NHW11 S	¥6,100
74232 — Panel, Front Armrest Base, Upper LH
74232-47010-B0 note	Panel, Front Armrest Base, Upper LH 1997-12 → 2000-05 ended	NHW10	¥3,370
74232-47020-B0 note	Panel, Front Armrest Base, Upper LH 1998-11 → 2000-05 ended	NHW10	¥6,800
74232-47020-B0 note	Panel, Front Armrest Base, Upper LH 2000-05 → —	NHW11	¥6,800
74232-47040 note	Panel, Front Armrest Base, Upper LH 2000-12 → 2001-12 ended	NHW11 S	¥6,700
74232-47040 note	Panel, Front Armrest Base, Upper LH 2002-01 → 2002-12 ended	NHW11 S	¥6,700
74232-47040 note	Panel, Front Armrest Base, Upper LH 2002-08 → 2003-03 ended	NHW11	¥6,700
74271A — Panel, Rear Door Armrest Base, Upper RH
74271-47010-B0 note	Panel, Rear Door Armrest Base, Upper RH 1997-12 → 2000-05 ended	NHW10	¥5,800
74271-47020-B0 note	Panel, Rear Door Armrest Base, Upper RH 1998-11 → 2000-05 ended	NHW10	¥6,700
74271-47020-B0 note	Panel, Rear Door Armrest Base, Upper RH 2000-05 → —	NHW11	¥6,700
74271-47030 note	Panel, Rear Door Armrest Base, Upper RH 2000-12 → 2001-12 ended	NHW11 S	¥6,600
74271-47030 note	Panel, Rear Door Armrest Base, Upper RH 2002-01 → 2002-12 ended	NHW11 S	¥6,600
74271-47030 note	Panel, Rear Door Armrest Base, Upper RH 2002-08 → 2003-03 ended	NHW11	¥6,600
74272A — Panel, Rear Door Armrest Base, Upper LH
74272-47010-B0 note	Panel, Rear Door Armrest Base, Upper LH 1997-12 → 2000-05 ended	NHW10	¥5,800
74272-47020-B0 note	Panel, Rear Door Armrest Base, Upper LH 2000-05 → —	NHW11	¥6,700
74272-47020-B0 note	Panel, Rear Door Armrest Base, Upper LH 1998-11 → 2000-05 ended	NHW10	¥6,700
74272-47030 note	Panel, Rear Door Armrest Base, Upper LH 2000-12 → 2001-12 ended	NHW11 S	¥6,600
74272-47030 note	Panel, Rear Door Armrest Base, Upper LH 2002-01 → 2002-12 ended	NHW11 S	¥6,600
74272-47030 note	Panel, Rear Door Armrest Base, Upper LH 2002-08 → 2003-03 ended	NHW11	¥6,600
74310 — Visor Assy, RH
74310-47010-B1 note	Visor Assy, RH 1997-12 → 1998-11 ended	NHW10	¥4,600
74310-47010-B1 note	Visor Assy, RH 1998-11 → 2000-05 ended	NHW10	¥4,600
74310-47020-B0 note	Visor Assy, RH 2000-05 → —	NHW11	¥4,600
74320 — Visor Assy, LH
74320-47010-B1 note	Visor Assy, LH 1997-12 → 1998-11 ended	NHW10	¥4,390
74320-47010-B1 note	Visor Assy, LH 1998-11 → 2000-05 ended	NHW10	¥4,390
74320-47020-B0 note	Visor Assy, LH 2000-05 → —	NHW11	¥4,390
74348 — Holder, Visor
74348-12030-B1 note	Holder, Visor 2000-05 → —	NHW11	¥750
74348-12030-B4 note	Holder, Visor 1997-12 → 1998-11 ended	NHW10	¥740
74348-12030-B4 note	Holder, Visor 1998-11 → 2000-05 ended	NHW10	¥740
74610A — Grip Sub-assy, Assist
74611-20030-B6 note	Grip Sub-assy, Assist 2000-05 → —	NHW11	¥2,220
74611-20030-B7 note	Grip Sub-assy, Assist 1997-12 → 1998-11 ended	NHW10	¥2,210
74611-20030-B7 note	Grip Sub-assy, Assist 1998-11 → 2000-05 ended	NHW10	¥2,210

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
