Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

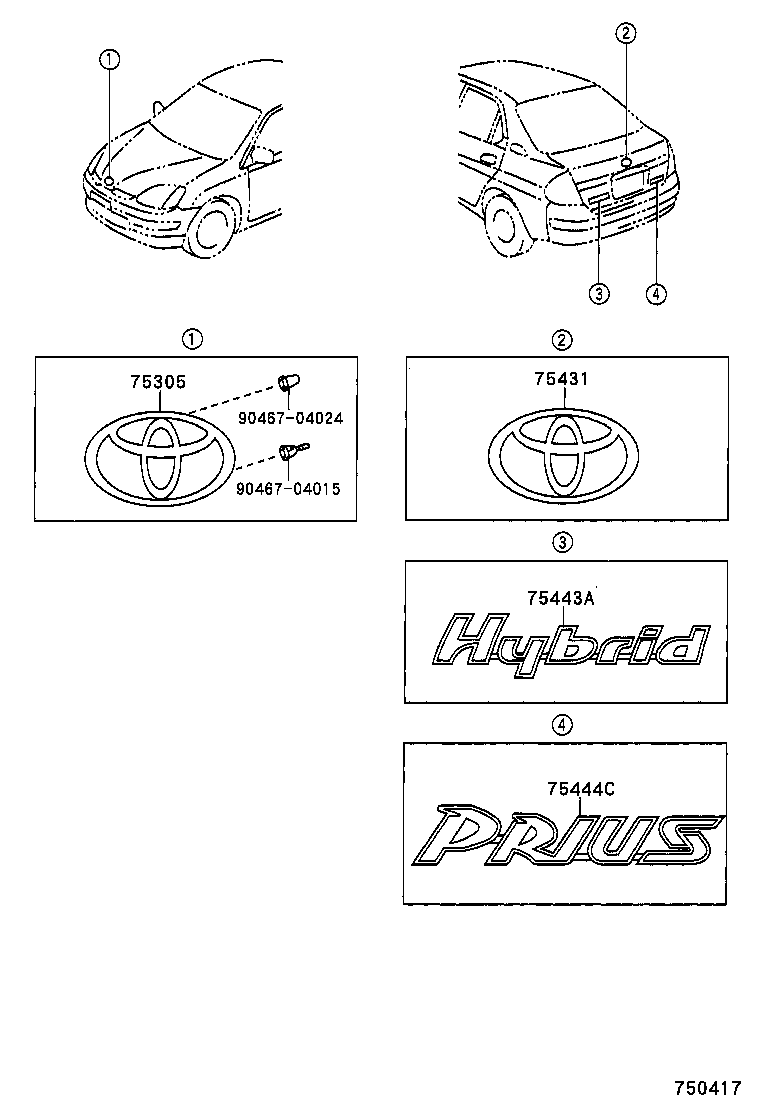

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75305 — Emblem, Hood | ||||
| 75331-47010 |
Emblem, Hood
1997-12 → 1998-12
ended
|
NHW10 | ¥2,650 | |
| 75331-47011 |
Emblem, Hood
1998-12 → 2000-05
ended
|
NHW10 | ¥2,640 | |
| 75331-47020 |
Emblem, Hood
2000-05 → —
|
NHW11 | ¥2,640 | |
| 75431 — Emblem, Luggage Compartment Door | ||||
| 75431-47010 |
Emblem, Luggage Compartment Door
1997-12 → 2000-05
ended
|
NHW10 | ¥2,470 | |
| 75431-47020 |
Emblem, Luggage Compartment Door
2000-05 → —
|
NHW11 | ¥2,800 | |
| 75443A — Plate, Luggage Compartment Door, NO.3 | ||||
| 75443-47010 note |
Plate, Luggage Compartment Door, NO.3
1997-12 → —
|
NHW1# | ¥3,120 | |
| 75444C — Plate, Luggage Compartment Door Name, NO.4 | ||||
| 75444-47011 note |
Plate, Luggage Compartment Door Name, NO.4
1997-12 → —
|
NHW1# | ¥3,120 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
