Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

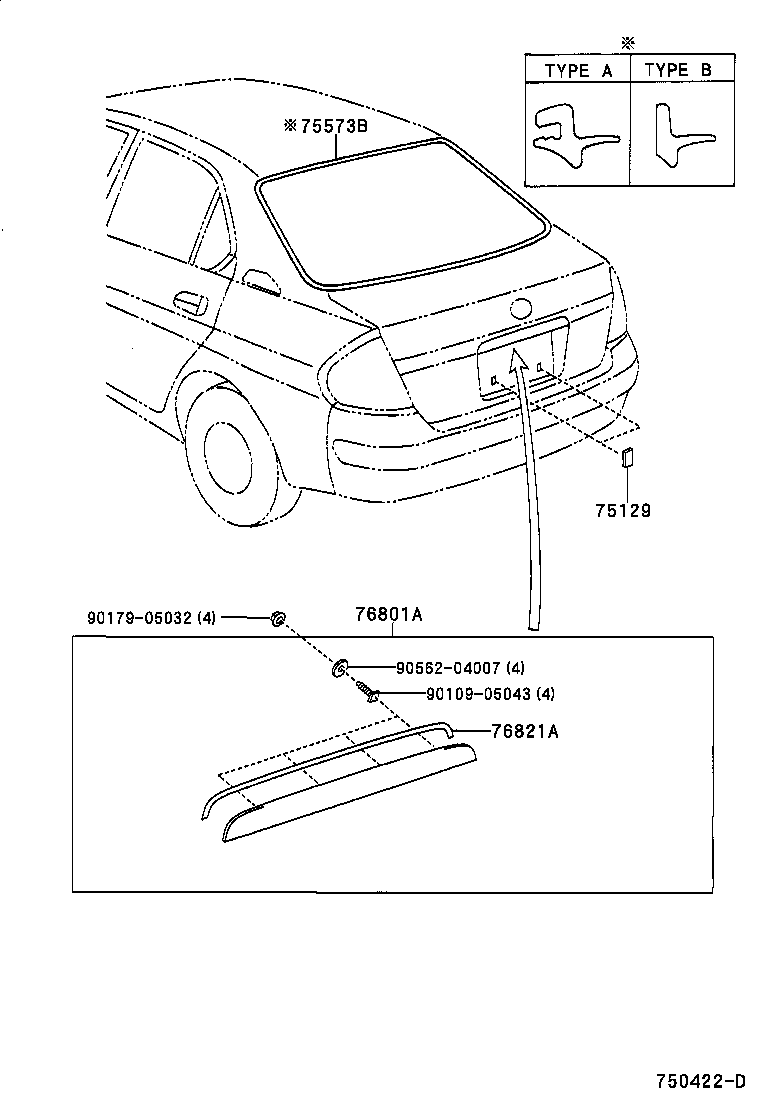

Exploded illustration 750422D 75573B — MOULDING, BACK WINDOW, OUTSIDE (4 parts) 75129 — CUSHION, REAR LICENSE PLATE (1 parts) 76801A — GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE (16 parts) 9017905032 — not listed in this catalogue 9056204007 — not listed in this catalogue 9010905043 — not listed in this catalogue 76821A — PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH (1 parts)
750422D · 4 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
75129 — Cushion, Rear License Plate
75129-13020 Cushion, Rear License Plate
1997-12 → —
NHW1# ¥80
75573B — Moulding, Back Window, Outside
75573-47020 note Moulding, Back Window, Outside
1997-12 → 2000-05 ended
NHW10 ¥6,500
75573-47030 note Moulding, Back Window, Outside
1997-12 → 2000-05 ended
NHW10 ¥5,400
75573-47040 note Moulding, Back Window, Outside
2000-05 → —
NHW11 ¥6,500
75573-47050 note Moulding, Back Window, Outside
2000-05 → —
NHW11 ¥5,400
76801A — Garnish Sub-assy, Luggage Compartment Door, Outside
76801-47010-A0 note Garnish Sub-assy, Luggage Compartment Door, Outside
1997-12 → —
NHW1# ¥5,900
76801-47010-A1 note Garnish Sub-assy, Luggage Compartment Door, Outside
1998-11 → 2000-05 ended
NHW10 ¥5,900
76801-47010-A1 note Garnish Sub-assy, Luggage Compartment Door, Outside
2000-05 → —
NHW11 ¥5,900
76801-47010-B0 note Garnish Sub-assy, Luggage Compartment Door, Outside
1999-11 → 2000-05 ended
NHW10 ¥5,900
76801-47010-B1 note Garnish Sub-assy, Luggage Compartment Door, Outside
2000-05 → —
NHW11 ¥5,900
76801-47010-C0 note Garnish Sub-assy, Luggage Compartment Door, Outside
2001-09 → —
NHW11 ¥5,900
76801-47010-D0 note Garnish Sub-assy, Luggage Compartment Door, Outside
1997-12 → 1999-01 ended
NHW10 ¥5,900
76801-47010-D1 note Garnish Sub-assy, Luggage Compartment Door, Outside
2000-12 → 2001-12 ended
NHW11 S ¥5,900
76801-47010-D1 note Garnish Sub-assy, Luggage Compartment Door, Outside
2001-08 → —
NHW11 ¥5,900
76801-47010-G1 note Garnish Sub-assy, Luggage Compartment Door, Outside
1997-12 → 2000-05 ended
NHW10 ¥5,900
76801-47010-G2 note Garnish Sub-assy, Luggage Compartment Door, Outside
2000-05 → —
NHW11 ¥5,900
76801-47010-H0 note Garnish Sub-assy, Luggage Compartment Door, Outside
1997-12 → —
NHW1# ¥5,900
76801-47010-J0 note Garnish Sub-assy, Luggage Compartment Door, Outside
1997-12 → 2000-05 ended
NHW10 ¥5,900
76801-47010-J1 note Garnish Sub-assy, Luggage Compartment Door, Outside
2000-05 → —
NHW11 ¥5,900
76801-47010-J2 note Garnish Sub-assy, Luggage Compartment Door, Outside
2000-05 → —
NHW11 ¥5,900
76801-47010-K0 note Garnish Sub-assy, Luggage Compartment Door, Outside
1997-12 → 2000-05 ended
NHW10 ¥5,900
76821A — Protector, Luggage Compartment Door Outside Garnish
76821-47010 Protector, Luggage Compartment Door Outside Garnish
1997-12 → —
NHW1# ¥370
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
