Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

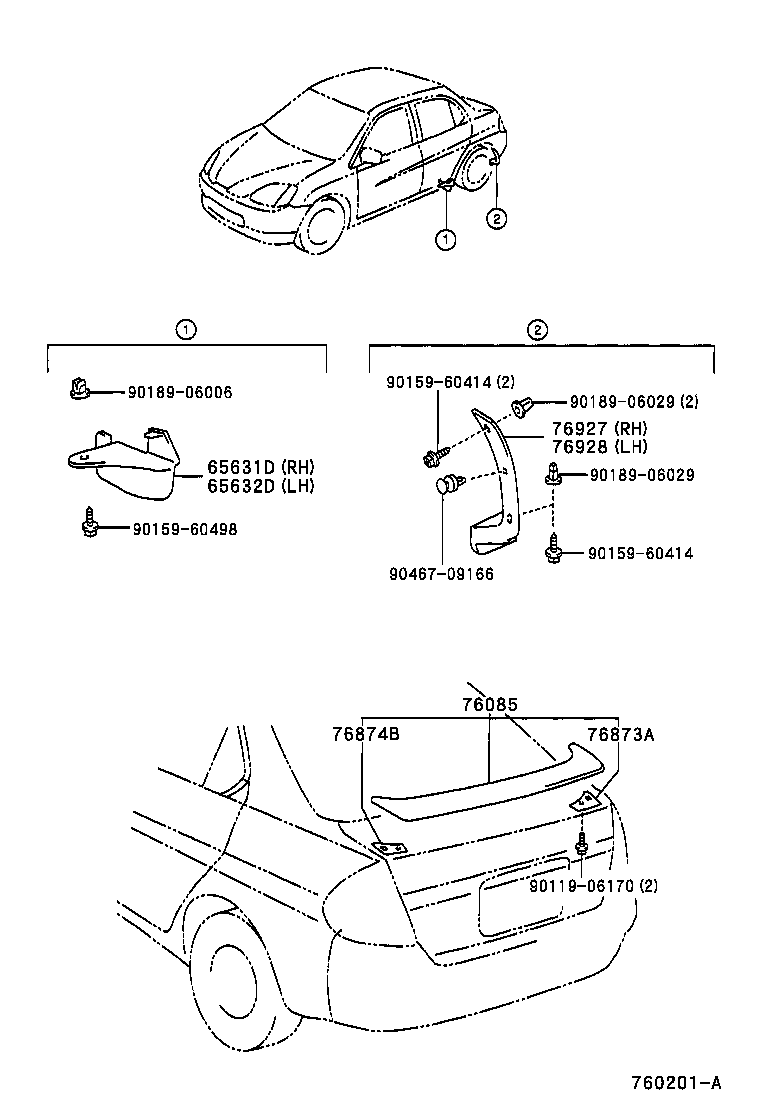

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 65631D — Plate, Rear Wheel House, Front RH | ||||
| 65631-47010 |
Plate, Rear Wheel House, Front RH
2001-08 → —
|
NHW11 | ¥1,630 | |
| 65632D — Plate, Rear Wheel House, Front LH | ||||
| 65632-47010 |
Plate, Rear Wheel House, Front LH
2001-08 → —
|
NHW11 | ¥1,630 | |
| 76085 — Spoiler Sub-assy, Rear | ||||
| 76085-47010-A0 note |
Spoiler Sub-assy, Rear
2000-05 → —
|
NHW11 | ¥42,500 | |
| 76085-47010-A1 note |
Spoiler Sub-assy, Rear
2000-05 → —
|
NHW11 | ¥42,500 | |
| 76085-47010-B0 note |
Spoiler Sub-assy, Rear
2000-05 → —
|
NHW11 | ¥42,500 | |
| 76085-47010-C0 note |
Spoiler Sub-assy, Rear
2001-09 → —
|
NHW11 | ¥42,500 | |
| 76085-47010-D0 note |
Spoiler Sub-assy, Rear
2000-12 → 2001-12
ended
|
NHW11 S | ¥42,500 | |
| 76085-47010-D0 note |
Spoiler Sub-assy, Rear
2001-08 → —
|
NHW11 | ¥42,500 | |
| 76085-47010-G0 note |
Spoiler Sub-assy, Rear
2000-05 → —
|
NHW11 | ¥42,500 | |
| 76085-47010-H0 note |
Spoiler Sub-assy, Rear
2000-05 → —
|
NHW11 | ¥42,500 | |
| 76085-47010-J0 note |
Spoiler Sub-assy, Rear
2000-05 → —
|
NHW11 | ¥42,500 | |
| 76085-47010-J1 note |
Spoiler Sub-assy, Rear
2000-05 → —
|
NHW11 | ¥42,500 | |
| 76873A — Protector, Rear Spoiler, RH | ||||
| 76781-47010 |
Protector, Rear Spoiler, RH
2000-05 → —
|
NHW11 | ¥920 | |
| 76874B — Protector, Rear Spoiler, LH | ||||
| 76782-47010 |
Protector, Rear Spoiler, LH
2000-05 → —
|
NHW11 | ¥920 | |
| 76927 — Protecter, Rear Mudguard, RH | ||||
| 76927-47020 |
Protecter, Rear Mudguard, RH
2000-05 → —
|
NHW11 | ¥1,220 | |
| 76928 — Protecter, Rear Mudguard, LH | ||||
| 76928-47020 |
Protecter, Rear Mudguard, LH
2000-05 → —
|
NHW11 | ¥1,220 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
