Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

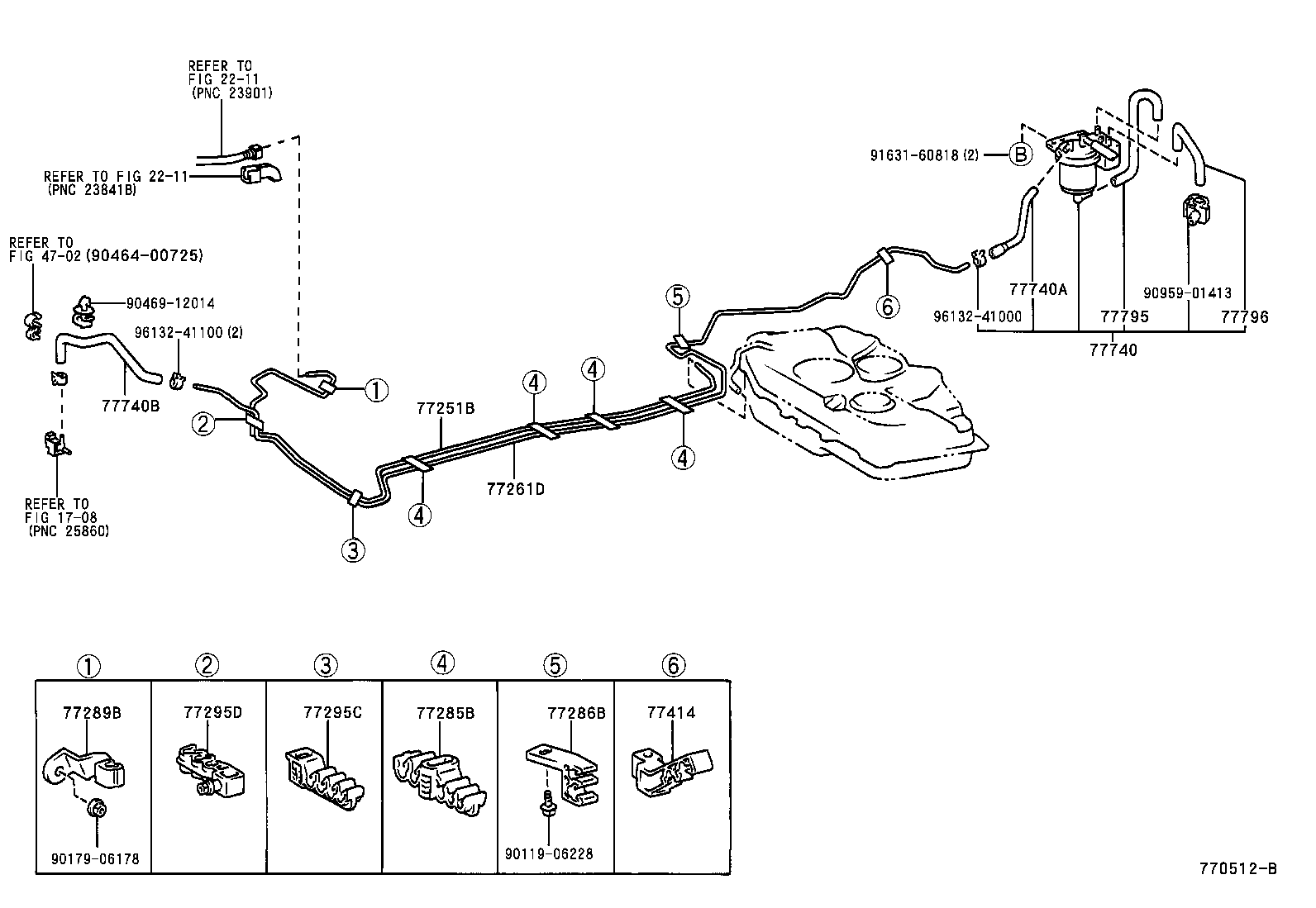

Exploded illustration 770512B 2211 — not listed in this catalogue 9163160818 — not listed in this catalogue 2211 — not listed in this catalogue 4702 — not listed in this catalogue 77740A — HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) (1 parts) 9095901413 — not listed in this catalogue 9046912014 — not listed in this catalogue 77795 — HOSE, CHARCOAL CANISTER OUTLET, NO.2 (1 parts) 9613241000 — not listed in this catalogue 77796 — HOSE, CHARCOAL CANISTER OUTLET, NO.3 (1 parts) 9613241100 — not listed in this catalogue 77740 — CANISTER ASSY, CHARCOAL (3 parts) 77740B — HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) (1 parts) 77251B — TUBE, FUEL MAIN (2 parts) 77261D — TUBE, FUEL TANK TO CANISTER (2 parts) 1708 — not listed in this catalogue 77295D — GROMMET, FUEL TUBE (1 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (1 parts) 77295C — GROMMET, FUEL TUBE (1 parts) 77286B — CLAMP, FUEL TUBE W/GROMMET, NO.2 (1 parts) 77414 — SUPPORT, FUEL TUBE GROMMET, NO.4 (1 parts) 77285B — CLAMP, FUEL TUBE W/GROMMET, NO.1 (8 parts) 9011906228 — not listed in this catalogue 9017906178 — not listed in this catalogue
770512B · 13 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-47010 Tube, Fuel Main
1997-12 → 2000-05 ended
NHW10 ¥5,400
77251-47030 Tube, Fuel Main
2000-05 → —
NHW11 ¥5,200
77261D — Tube, Fuel Tank TO Canister
77261-47010 Tube, Fuel Tank TO Canister
1997-12 → 2000-05 ended
NHW10 ¥5,100
77261-47050 Tube, Fuel Tank TO Canister
2000-05 → —
NHW11 ¥5,100
77285B — Clamp, Fuel Tube W/Grommet, NO.1
77285-10020 Clamp, Fuel Tube W/Grommet, NO.1
1997-12 → 2000-05 ended
NHW10 ¥750
77286-47020 note Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
NHW11 ¥390
77286-53010 note Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
NHW11 ¥700
77289-47010 note Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
NHW11 ¥410
77295-22110 note Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
NHW11 ¥750
77295-42010 note Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
NHW11 ¥530
77298-20060 note Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
NHW11 ¥750
77298-20080 note Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
NHW11 ¥760
77286B — Clamp, Fuel Tube W/Grommet, NO.2
77286-47010 Clamp, Fuel Tube W/Grommet, NO.2
1997-12 → 2000-05 ended
NHW10 ¥510
77289B — Clamp, Fuel Tube, NO.3
77289-47010 Clamp, Fuel Tube, NO.3
1997-12 → 2000-05 ended
NHW10 ¥410
77295C — Grommet, Fuel Tube
77295-22110 Grommet, Fuel Tube
1997-12 → 2000-05 ended
NHW10 ¥750
77295D — Grommet, Fuel Tube
77295-42010 Grommet, Fuel Tube
1997-12 → 2000-05 ended
NHW10 ¥530
77414 — Support, Fuel Tube Grommet, NO.4
77414-47010 Support, Fuel Tube Grommet, NO.4
1997-12 → 2000-05 ended
NHW10 ¥910
77740 — Canister Assy, Charcoal
77740-47010 Canister Assy, Charcoal
1997-12 → 2000-05 ended
NHW10 ¥10,200
77740-47020 Canister Assy, Charcoal
2000-05 → 2000-11 ended
NHW11 ¥13,300
77740-47021 Canister Assy, Charcoal
2000-11 → —
NHW11 ¥13,300
77740A — Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
23829-21010 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1997-12 → 2000-05 ended
NHW10 ¥650
77740B — Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
95333-06060 note Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
1997-12 → —
NHW1# ¥1,020
77795 — Hose, Charcoal Canister Outlet, NO.2
77795-47010 Hose, Charcoal Canister Outlet, NO.2
1997-12 → 2000-05 ended
NHW10 ¥520
77796 — Hose, Charcoal Canister Outlet, NO.3
77796-47010 Hose, Charcoal Canister Outlet, NO.3
1997-12 → 2000-05 ended
NHW10 ¥380
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
