Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

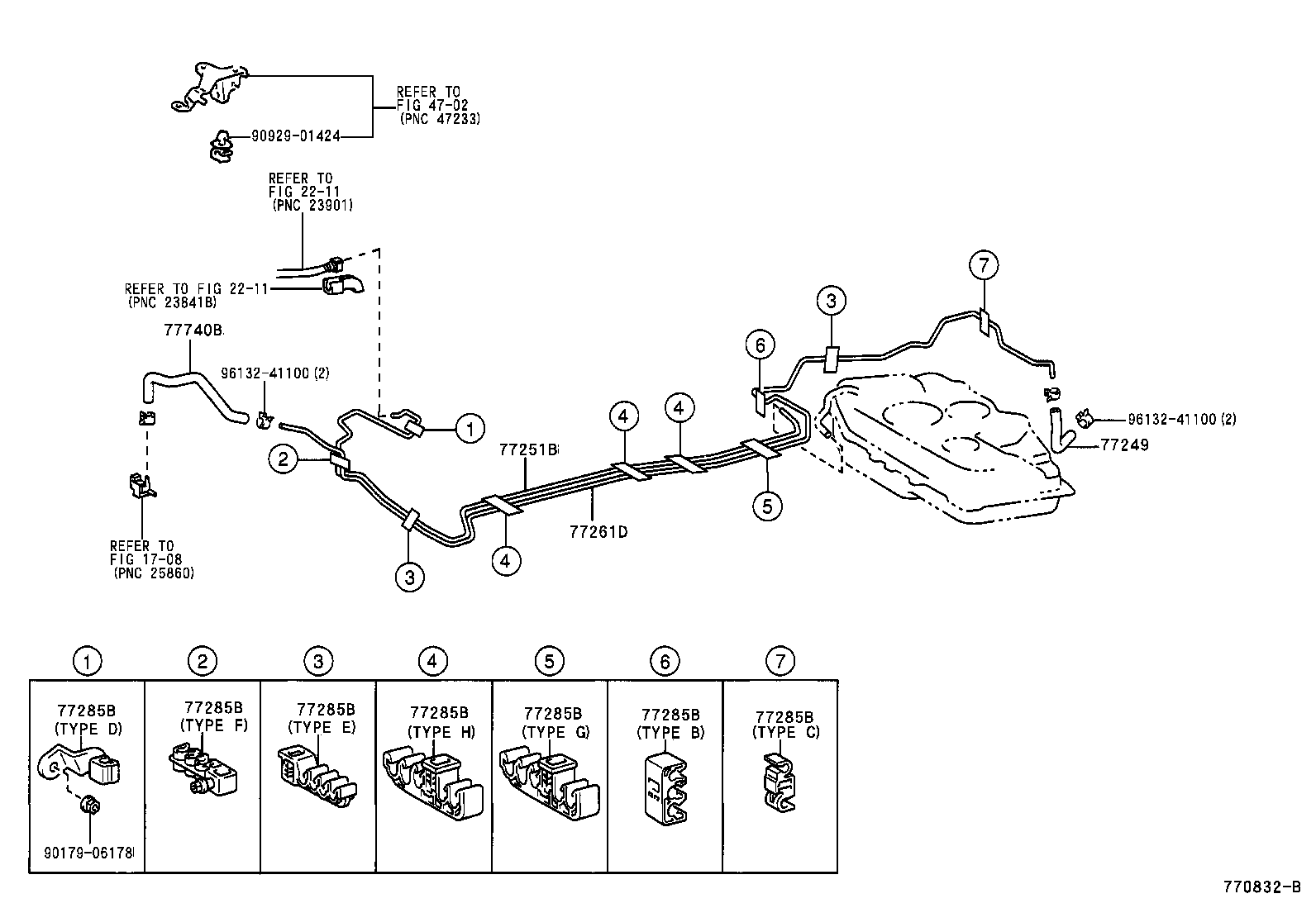

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77249 — Hose, Fuel Emission | ||||
| 77249-47030 |
Hose, Fuel Emission
2000-05 → —
|
NHW11 | ¥390 | |
| 77251B — Tube, Fuel Main | ||||
| 77251-47010 |
Tube, Fuel Main
1997-12 → 2000-05
ended
|
NHW10 | ¥5,400 | |
| 77251-47030 |
Tube, Fuel Main
2000-05 → —
|
NHW11 | ¥5,200 | |
| 77261D — Tube, Fuel Tank TO Canister | ||||
| 77261-47010 |
Tube, Fuel Tank TO Canister
1997-12 → 2000-05
ended
|
NHW10 | ¥5,100 | |
| 77261-47050 |
Tube, Fuel Tank TO Canister
2000-05 → —
|
NHW11 | ¥5,100 | |
| 77285B — Clamp, Fuel Tube W/Grommet, NO.1 | ||||
| 77285-10020 |
Clamp, Fuel Tube W/Grommet, NO.1
1997-12 → 2000-05
ended
|
NHW10 | ¥750 | |
| 77286-47020 note |
Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
|
NHW11 | ¥390 | |
| 77286-53010 note |
Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
|
NHW11 | ¥700 | |
| 77289-47010 note |
Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
|
NHW11 | ¥410 | |
| 77295-22110 note |
Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
|
NHW11 | ¥750 | |
| 77295-42010 note |
Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
|
NHW11 | ¥530 | |
| 77298-20060 note |
Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
|
NHW11 | ¥750 | |
| 77298-20080 note |
Clamp, Fuel Tube W/Grommet, NO.1
2000-05 → —
|
NHW11 | ¥760 | |
| 77740B — Hose, Fuel, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95333-06060 note |
Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
1997-12 → —
|
NHW1# | ¥1,020 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
