Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

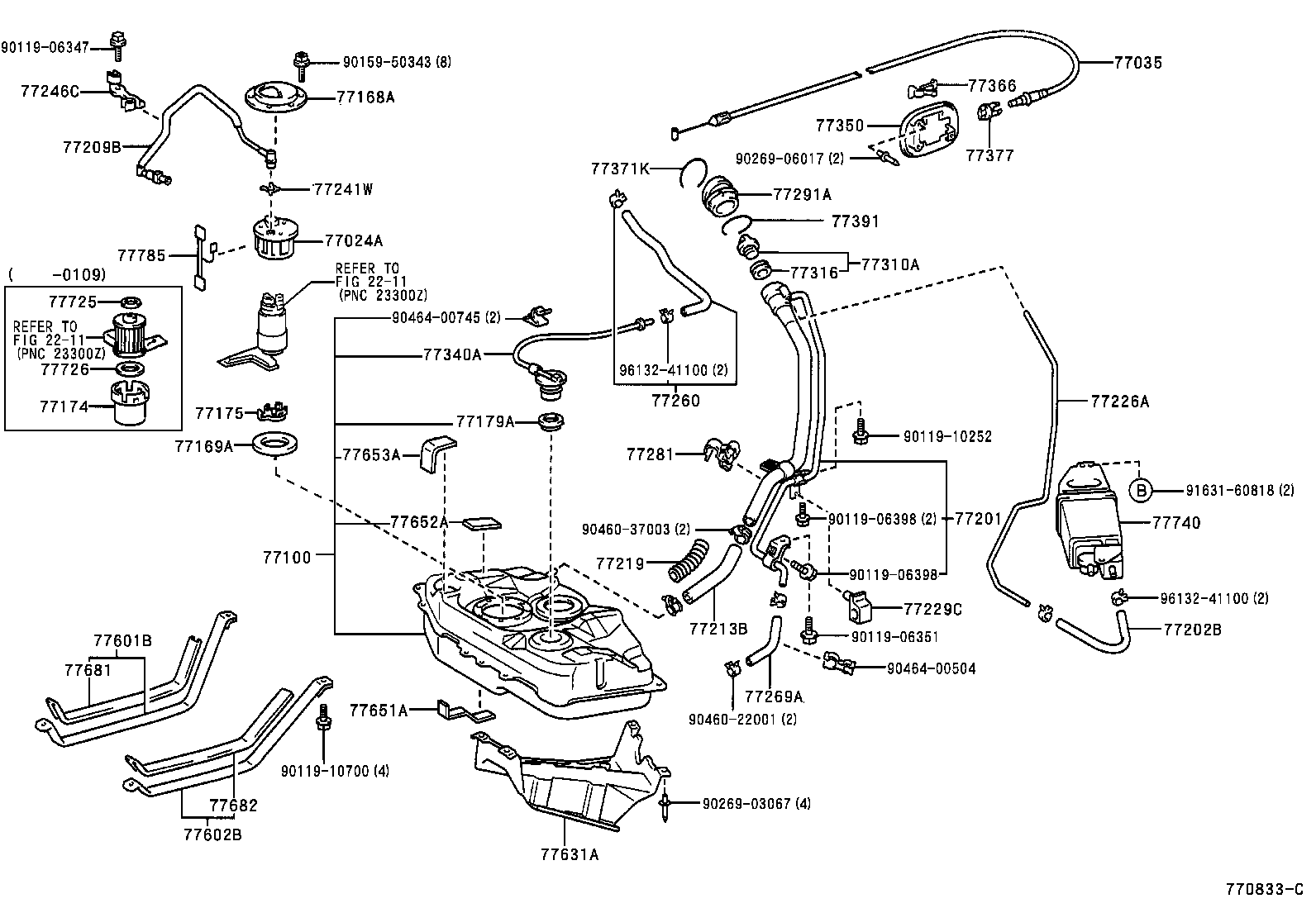

55 parts on this figure

Part number	Description	Fitment	Price
77024A — Plate Sub-assy, Fuel Suction
77024-47010	Plate Sub-assy, Fuel Suction 1997-12 → —	NHW1#	¥4,730
77035 — Cable Sub-assy, Fuel Lid Lock Control
77035-47010	Cable Sub-assy, Fuel Lid Lock Control 1997-12 → 1998-11 ended	NHW10	¥1,940
77035-47011	Cable Sub-assy, Fuel Lid Lock Control 1998-11 → —	NHW1#	¥1,960
77100 — Tank Assy, Fuel
77001-47020	Tank Assy, Fuel 1997-12 → —	NHW1#	¥41,800
77168A — Plate, Fuel Tank Vent Tube Set
77168-12240	Plate, Fuel Tank Vent Tube Set 1997-12 → 2001-07 ended	NHW1#	¥1,920
77168-33050	Plate, Fuel Tank Vent Tube Set 2001-07 → —	NHW11	¥1,930
77169A — Gasket, Fuel Suction Tube Set
77169-33020	Gasket, Fuel Suction Tube Set 1997-12 → —	NHW1#	¥440
77174 — Support, Fuel Suction, NO.1
77174-33010	Support, Fuel Suction, NO.1 1997-12 → 2001-09 ended	NHW1#	¥3,240
77175 — Support, Fuel Suction, NO.2
77175-47010	Support, Fuel Suction, NO.2 1997-12 → —	NHW1#	¥1,070
77179A — Gasket, Fuel Tank Breather Tube
77179-33010	Gasket, Fuel Tank Breather Tube 1997-12 → —	NHW1#	¥240
77201 — Pipe Sub-assy, Fuel Tank Inlet
77201-47020	Pipe Sub-assy, Fuel Tank Inlet 1997-12 → 2000-05 ended	NHW10	¥10,600
77201-47040	Pipe Sub-assy, Fuel Tank Inlet 2000-05 → —	NHW11	¥9,400
77202B — Hose, Fuel, NO.2 (FOR BREATHER TUBE)
90445-12279 note	Hose, Fuel, NO.2 (FOR BREATHER TUBE) 2000-05 → —	NHW11	¥410
77209B — Tube Sub-assy, Fuel Pump
77209-47010	Tube Sub-assy, Fuel Pump 1997-12 → —	NHW1#	¥2,120
77213B — Hose, Fuel Tank TO Filler Pipe
77213-47010 note	Hose, Fuel Tank TO Filler Pipe 1997-12 → 2000-05 ended	NHW10	¥3,500
77213-47020	Hose, Fuel Tank TO Filler Pipe 2000-05 → —	NHW11	¥3,500
77219 — Cover, Fuel Tank Filler Pipe
77219-32030 note	Cover, Fuel Tank Filler Pipe 1997-12 → 2000-05 ended	NHW10	¥210
77219-44010 note	Cover, Fuel Tank Filler Pipe 1997-12 → 2000-05 ended	NHW10	¥580
77219-44010	Cover, Fuel Tank Filler Pipe 2000-05 → —	NHW11	¥580
77226A — Tube, Fuel Tank Breather, NO.6
77226-47010	Tube, Fuel Tank Breather, NO.6 2000-05 → —	NHW11	¥3,250
77229C — Clamp, Breather Tube
77229-47030	Clamp, Breather Tube 2000-05 → —	NHW11	¥450
77241W — Clip, Tube Joint
77241-33011	Clip, Tube Joint 1997-12 → —	NHW1#	¥80
77246C — Support, Fuel Main Tube
77246-47010	Support, Fuel Main Tube 1997-12 → 1998-10 ended	NHW10	¥910
77246-47020	Support, Fuel Main Tube 1998-10 → —	NHW1#	¥910
77260 — Hose Assy, Fuel Main
77260-47020	Hose Assy, Fuel Main 2000-05 → —	NHW11	¥2,530
77269A — Hose, Fuel Tank Breather
77269-47010	Hose, Fuel Tank Breather 2000-05 → —	NHW11	¥550
77281 — Bracket, Fuel Main Tube, NO.1
77281-47010	Bracket, Fuel Main Tube, NO.1 2000-05 → —	NHW11	¥610
77291A — Shield, Fuel Tank Filler Pipe
77291-47010	Shield, Fuel Tank Filler Pipe 1997-12 → —	NHW1#	¥2,220
77310A — Cap Assy, Fuel Tank
77310-48010	Cap Assy, Fuel Tank 1997-12 → —	NHW1#	¥2,800
77316 — Gasket, Fuel Tank Cap
77316-16010	Gasket, Fuel Tank Cap 1997-12 → —	NHW1#	¥660
77340A — Valve Assy, Fuel Cut Off W/Tube
77340-47010	Valve Assy, Fuel Cut Off W/Tube 1997-12 → —	NHW1#	¥3,640
77350 — Lid Assy, Fuel Filler Opening
77350-47010	Lid Assy, Fuel Filler Opening 1997-12 → —	NHW1#	¥3,590
77366 — Spring, Fuel Filler Opening Lid Hinge
77360-22020	Spring, Fuel Filler Opening Lid Hinge 1997-12 → 2001-11 ended	NHW1#	¥430
77360-33020	Spring, Fuel Filler Opening Lid Hinge 2001-11 → —	NHW11	¥430
77371K — Bracket, Fuel Filler Opening Lid Lock
77371-47010	Bracket, Fuel Filler Opening Lid Lock 1997-12 → —	NHW1#	¥320
77377 — Retainer, Fuel Filler Opening Lid Lock
77377-12050	Retainer, Fuel Filler Opening Lid Lock 1997-12 → —	NHW1#	¥300
77391 — Ring, Fuel Inlet Box
77391-12020	Ring, Fuel Inlet Box 1997-12 → —	NHW1#	¥180
77601B — Band Sub-assy, Fuel Tank, NO.1 RH
77601-47010	Band Sub-assy, Fuel Tank, NO.1 RH 1997-12 → —	NHW1#	¥2,030
77602B — Band Sub-assy, Fuel Tank, NO.1 LH
77602-47010	Band Sub-assy, Fuel Tank, NO.1 LH 1997-12 → —	NHW1#	¥2,030
77631A — Protector, Fuel Tank, Lower Center
77631-47010	Protector, Fuel Tank, Lower Center 1997-12 → —	NHW1#	¥5,800
77651A — Cushion, Fuel Tank, NO.1
77651-47010	Cushion, Fuel Tank, NO.1 1998-09 → —	NHW1#	¥580
77652-30070	Cushion, Fuel Tank, NO.1 1997-12 → 1998-09 ended	NHW10	¥840
77652A — Cushion, Fuel Tank, NO.2
77652-12100	Cushion, Fuel Tank, NO.2 1997-12 → 1998-04 ended	NHW10	¥590
77652-12100	Cushion, Fuel Tank, NO.2 2000-05 → —	NHW11	¥590
77653A — Cushion, Fuel Tank, NO.3
77653-47010	Cushion, Fuel Tank, NO.3 1997-12 → 1998-09 ended	NHW10	¥670
77653-47011	Cushion, Fuel Tank, NO.3 1998-09 → —	NHW1#	¥680
77681 — Seat, Fuel Tank Band, RH
77681-32060	Seat, Fuel Tank Band, RH 1997-12 → —	NHW1#	¥1,900
77682 — Seat, Fuel Tank Band, LH
77681-32060	Seat, Fuel Tank Band, LH 1997-12 → —	NHW1#	¥1,900
77725 — Cushion, Fuel Filter, NO.1
77725-33010	Cushion, Fuel Filter, NO.1 1997-12 → 2001-09 ended	NHW1#	¥180
77726 — Cushion, Fuel Filter, NO.2
77726-33010	Cushion, Fuel Filter, NO.2 1997-12 → 2001-09 ended	NHW1#	¥340
77740 — Canister Assy, Charcoal
77740-47010	Canister Assy, Charcoal 1997-12 → 2000-05 ended	NHW10	¥10,200
77740-47020	Canister Assy, Charcoal 2000-05 → 2000-11 ended	NHW11	¥13,300
77740-47021	Canister Assy, Charcoal 2000-11 → —	NHW11	¥13,300
77785 — Harness, Fuel Pump
77785-33010	Harness, Fuel Pump 1997-12 → 2001-09 ended	NHW1#	¥460
77785-52020	Harness, Fuel Pump 2001-09 → —	NHW11	¥460

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
