Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

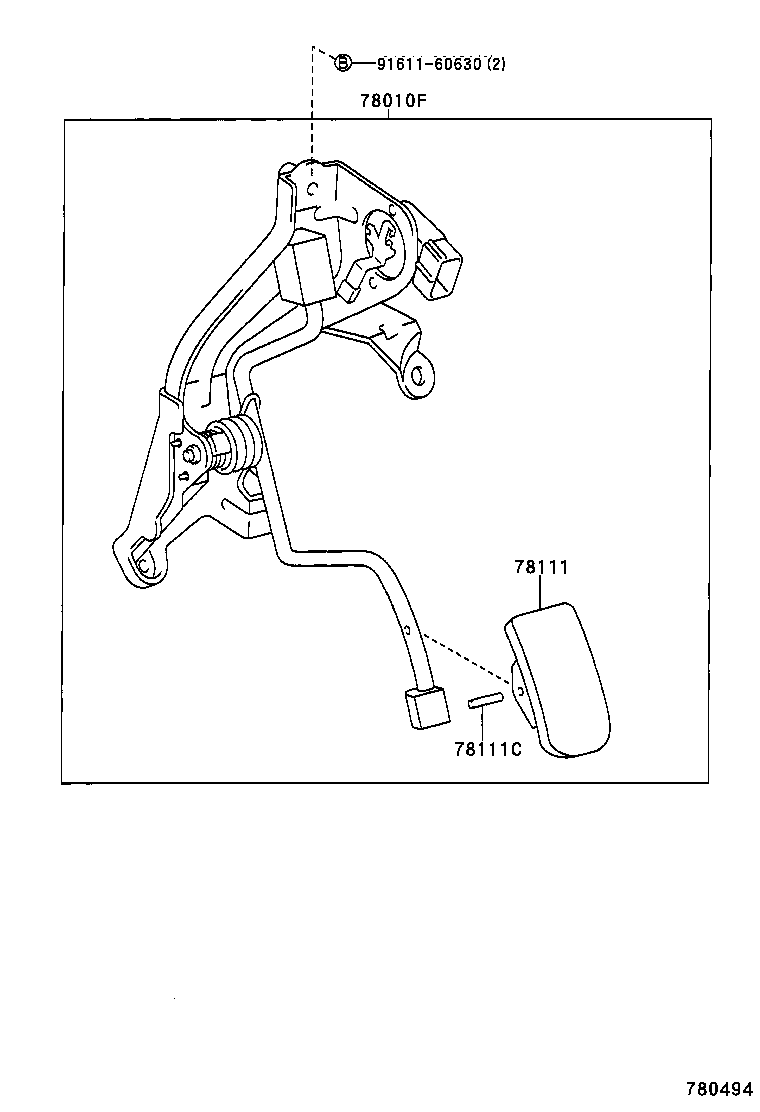

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78010F — Pedal Assy, Accelerator | ||||
| 78010-47010 |
Pedal Assy, Accelerator
1997-12 → 2000-05
ended
|
NHW10 | ¥33,300 | |
| 78010-47020 |
Pedal Assy, Accelerator
2000-05 → —
|
NHW11 | ¥30,600 | |
| 78111 — Pedal, Accelerator | ||||
| 78111-20060 |
Pedal, Accelerator
1997-12 → —
|
NHW1# | ¥910 | |
| 78111C — Pin (FOR ACCELERATOR PEDAL) | ||||
| 90254-04019 |
Pin (FOR ACCELERATOR PEDAL)
1997-12 → —
|
NHW1# | ¥70 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
