Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

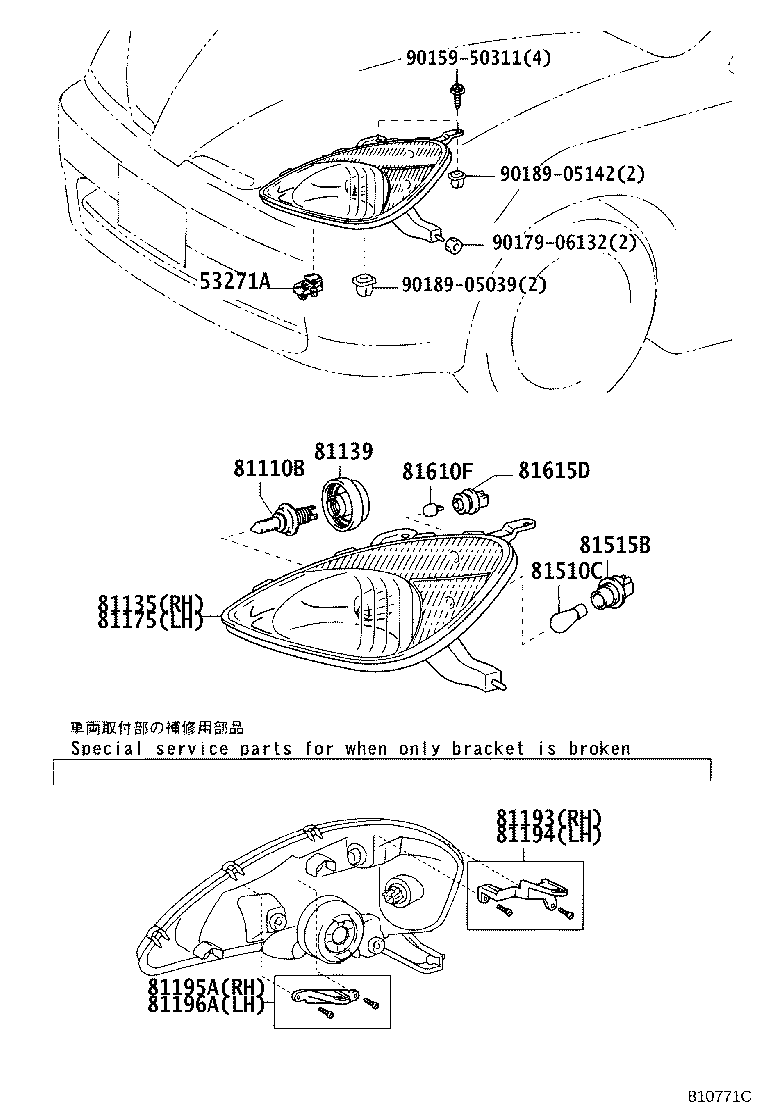

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53271A — Bracket, Headlamp Mounting | ||||
| 53271-12060 |
Bracket, Headlamp Mounting
1997-12 → —
|
NHW1# | ¥630 | |
| 81110B — Bulb(FOR HEADLAMP, NO.1) | ||||
| 90981-22004 note |
Bulb(FOR HEADLAMP, NO.1)
1997-12 → —
|
NHW1# | ¥2,000 | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81130-47010 |
Unit Assy, Headlamp, RH
1997-12 → 2000-05
ended
|
NHW10 | ¥28,600 | |
| 81130-47020 |
Unit Assy, Headlamp, RH
2000-05 → —
|
NHW11 | ¥29,200 | |
| 81139 — Cover, Headlamp Socket | ||||
| 90075-65002 |
Cover, Headlamp Socket
1997-12 → —
|
NHW1# | ¥670 | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81170-47010 |
Unit Assy, Headlamp, LH
1997-12 → 2000-05
ended
|
NHW10 | ¥28,600 | |
| 81170-47020 |
Unit Assy, Headlamp, LH
2000-05 → —
|
NHW11 | ¥29,200 | |
| 81193 — Retainer, Headlamp Protector, Upper RH | ||||
| 81193-47010 |
Retainer, Headlamp Protector, Upper RH
2000-05 → —
|
NHW11 | ¥1,030 | |
| 81194 — Retainer, Headlamp Protector, Upper LH | ||||
| 81194-47010 |
Retainer, Headlamp Protector, Upper LH
2000-05 → —
|
NHW11 | ¥1,030 | |
| 81195A — Retainer, Headlamp Protector, Lower RH | ||||
| 81195-47010 |
Retainer, Headlamp Protector, Lower RH
2000-05 → —
|
NHW11 | ¥990 | |
| 81196A — Retainer, Headlamp Protector, Lower LH | ||||
| 81196-47010 |
Retainer, Headlamp Protector, Lower LH
2000-05 → —
|
NHW11 | ¥990 | |
| 81510C — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15009 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
1997-12 → 2000-05
ended
|
NHW10 | ¥350 | |
| 90981-15011 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2000-05 → —
|
NHW11 | ¥300 | |
| 81515B — Socket, Front Turn Signal Lamp | ||||
| 90075-60006 |
Socket, Front Turn Signal Lamp
1997-12 → 2000-05
ended
|
NHW10 | ¥1,000 | |
| 90075-60028 |
Socket, Front Turn Signal Lamp
2000-05 → —
|
NHW11 | ¥610 | |
| 81610F — Bulb(FOR CLEARANCE LAMP) | ||||
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
1997-12 → —
|
NHW1# | ¥110 | |
| 81615D — Socket, Clearance Lamp | ||||
| 90075-60001 |
Socket, Clearance Lamp
1997-12 → —
|
NHW1# | ¥610 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
