Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

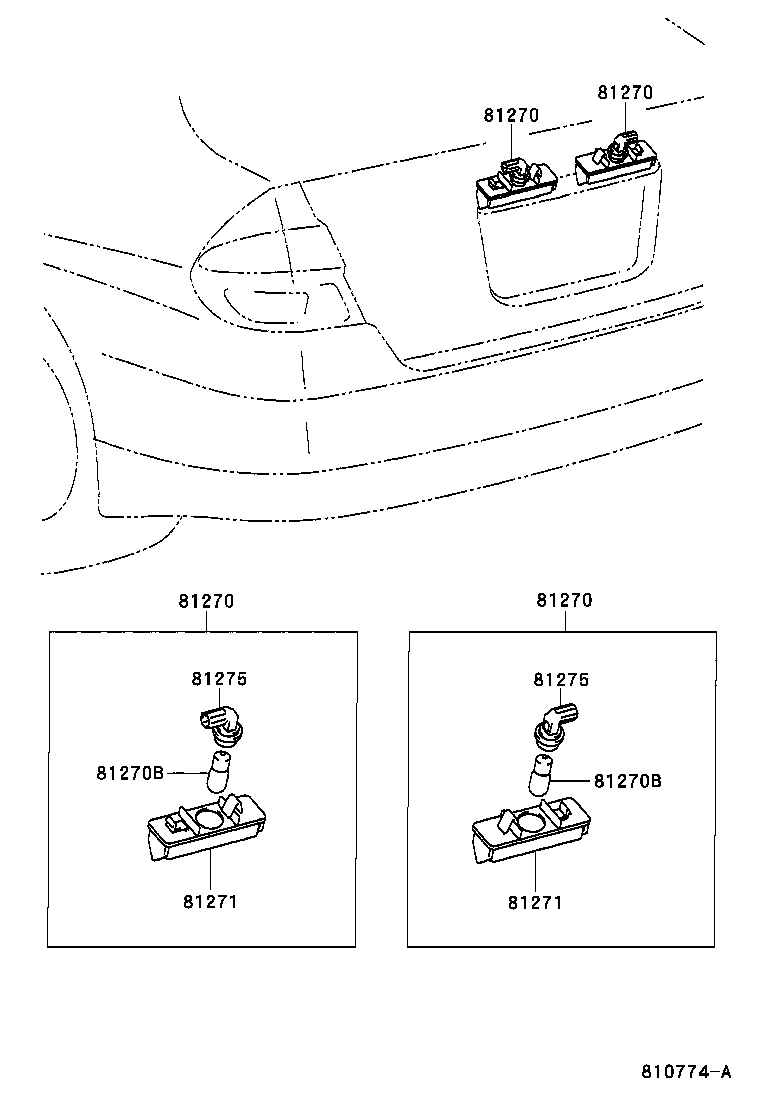

Exploded illustration 810774A 81270 — LAMP ASSY, LICENSE PLATE (1 parts) 81270 — LAMP ASSY, LICENSE PLATE (1 parts) 81270 — LAMP ASSY, LICENSE PLATE (1 parts) 81270 — LAMP ASSY, LICENSE PLATE (1 parts) 81275 — SOCKET AND WIRE, LICENSE PLATE LAMP (1 parts) 81275 — SOCKET AND WIRE, LICENSE PLATE LAMP (1 parts) 81270B — BULB (FOR LICENSE PLATE LAMP) (1 parts) 81270B — BULB (FOR LICENSE PLATE LAMP) (1 parts) 81271 — LENS, LICENSE PLATE LAMP (1 parts) 81271 — LENS, LICENSE PLATE LAMP (1 parts)
810774A · 10 callouts Full size ↗
4 parts on this figure
Part number Description Fitment Price
81270 — Lamp Assy, License Plate
81270-30290 Lamp Assy, License Plate
1997-12 → —
NHW1# ¥2,890
81270B — Bulb (FOR LICENSE PLATE LAMP)
99132-12050 note Bulb (FOR LICENSE PLATE LAMP)
1997-12 → —
NHW1# ¥110
81271 — Lens, License Plate Lamp
81271-30290 Lens, License Plate Lamp
1997-12 → —
NHW1# ¥2,120
81275 — Socket And Wire, License Plate Lamp
90075-99005 Socket And Wire, License Plate Lamp
1997-12 → —
NHW1# ¥610
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
