Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

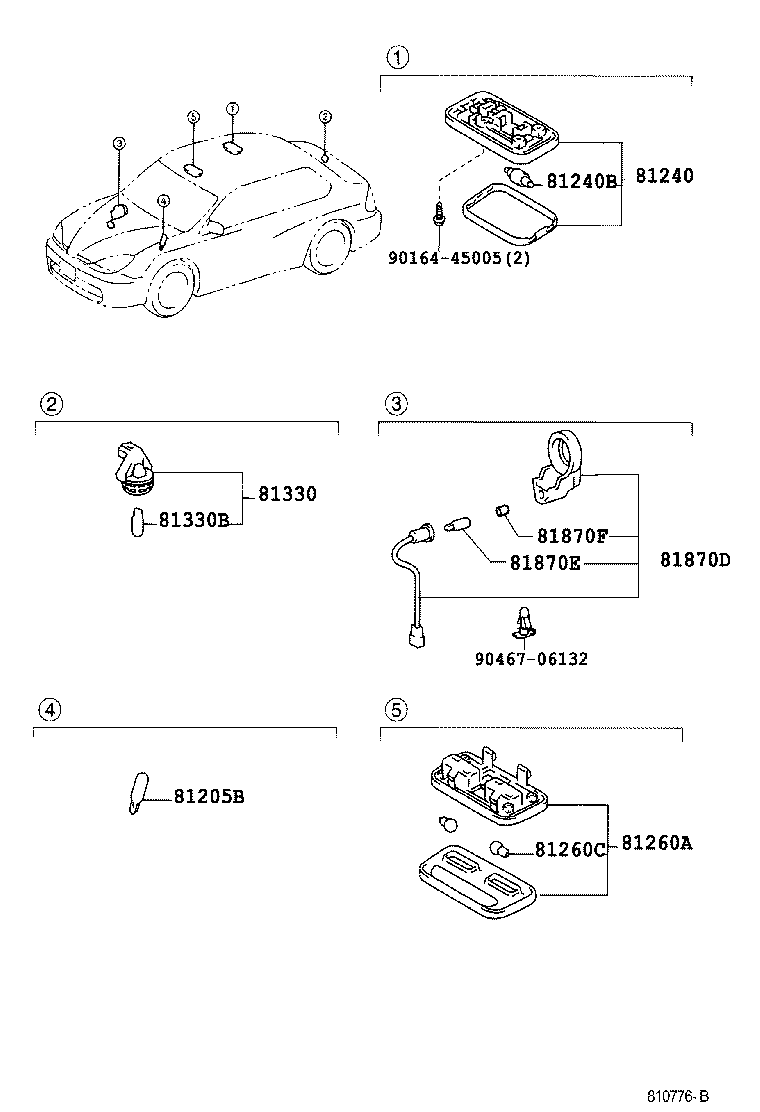

12 parts on this figure

Part number	Description	Fitment	Price
81205B — Bulb, Ash Receptacle Lamp
90981-11018 note	Bulb, Ash Receptacle Lamp 1997-12 → —	NHW1#	¥140
81240 — Lamp Assy, Room, NO.1
81240-46010-B1 note	Lamp Assy, Room, NO.1 1997-12 → 1998-11 ended	NHW10	¥3,330
81240-46010-B1 note	Lamp Assy, Room, NO.1 1998-11 → 2000-05 ended	NHW10	¥3,330
81240-46010-B3 note	Lamp Assy, Room, NO.1 2000-05 → —	NHW11	¥3,330
81240B — Bulb, Room Lamp, NO.1
90981-14011 note	Bulb, Room Lamp, NO.1 1997-12 → 2003-08 ended	NHW1#	¥180
81260A — Lamp Assy, Map
81260-12100-B1 note	Lamp Assy, Map 2000-05 → —	NHW11	¥7,900
81260C — Bulb(FOR MAP LAMP)
90981-12005 note	Bulb(FOR MAP LAMP) 2000-05 → —	NHW11	¥140
81330 — Lamp Assy, Luggage Compartment, NO.1
81330-12020	Lamp Assy, Luggage Compartment, NO.1 1997-12 → —	NHW1#	¥840
81330B — Bulb, Luggage Compartment Lamp
90981-11020 note	Bulb, Luggage Compartment Lamp 1997-12 → —	NHW1#	¥170
81870D — Lamp Assy, Key Cylinder
81870-35040	Lamp Assy, Key Cylinder 1997-12 → —	NHW1#	¥2,700
81870E — Bulb, Key Cylinder Lamp
90981-11014 note	Bulb, Key Cylinder Lamp 2000-05 → —	NHW11	¥120
81870F — Cap, Key Cylinder Lamp Bulb
84998-10070	Cap, Key Cylinder Lamp Bulb 2000-05 → —	NHW11	¥240

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
