Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

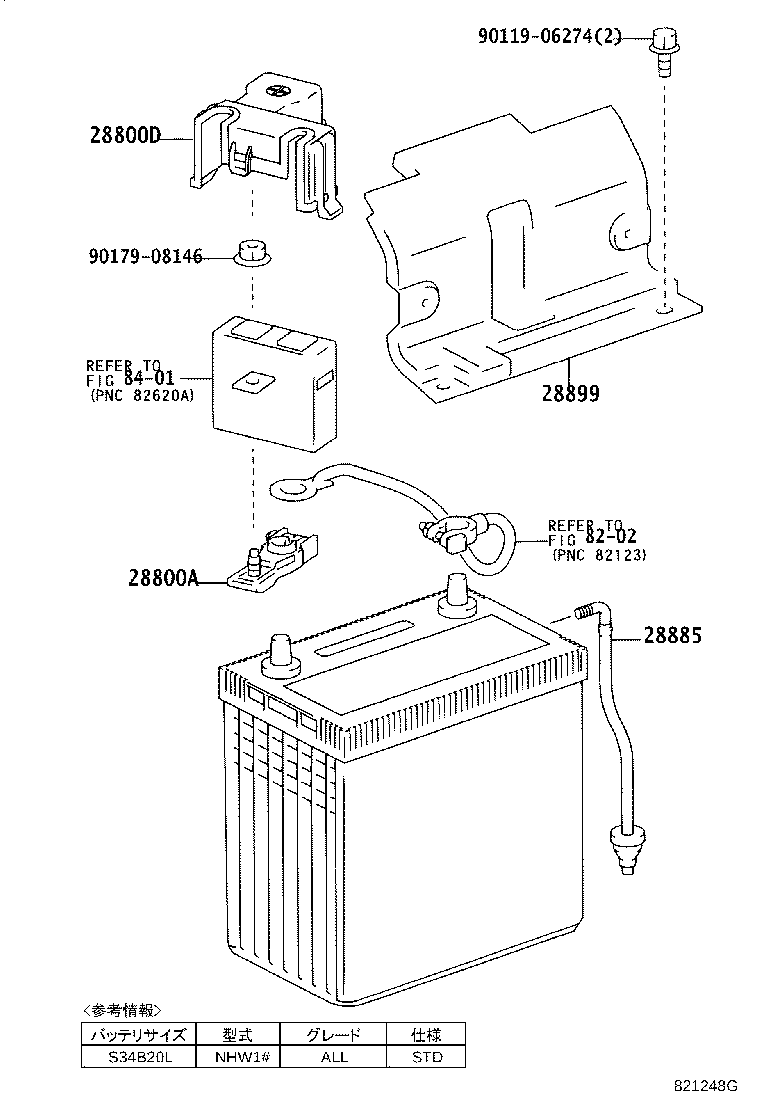

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

4 parts on this figure

Part number	Description	Fitment	Price
28800A — Terminal, Battery Positive
90982-05051	Terminal, Battery Positive 1997-12 → —	1NZFXE NHW1#	¥1,350
28800D — Cover, Connector(FOR BATTERY TERMINAL)
82821-47010	Cover, Connector(FOR BATTERY TERMINAL) 1997-12 → —	1NZFXE NHW1#	¥1,200
28885 — Hose, Battery Room Ventilation
28885-21010	Hose, Battery Room Ventilation 1997-12 → —	1NZFXE NHW1#	¥930
28899 — Insulator, Battery
28899-21010	Insulator, Battery 1997-12 → —	1NZFXE NHW1#	¥2,710

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
