Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

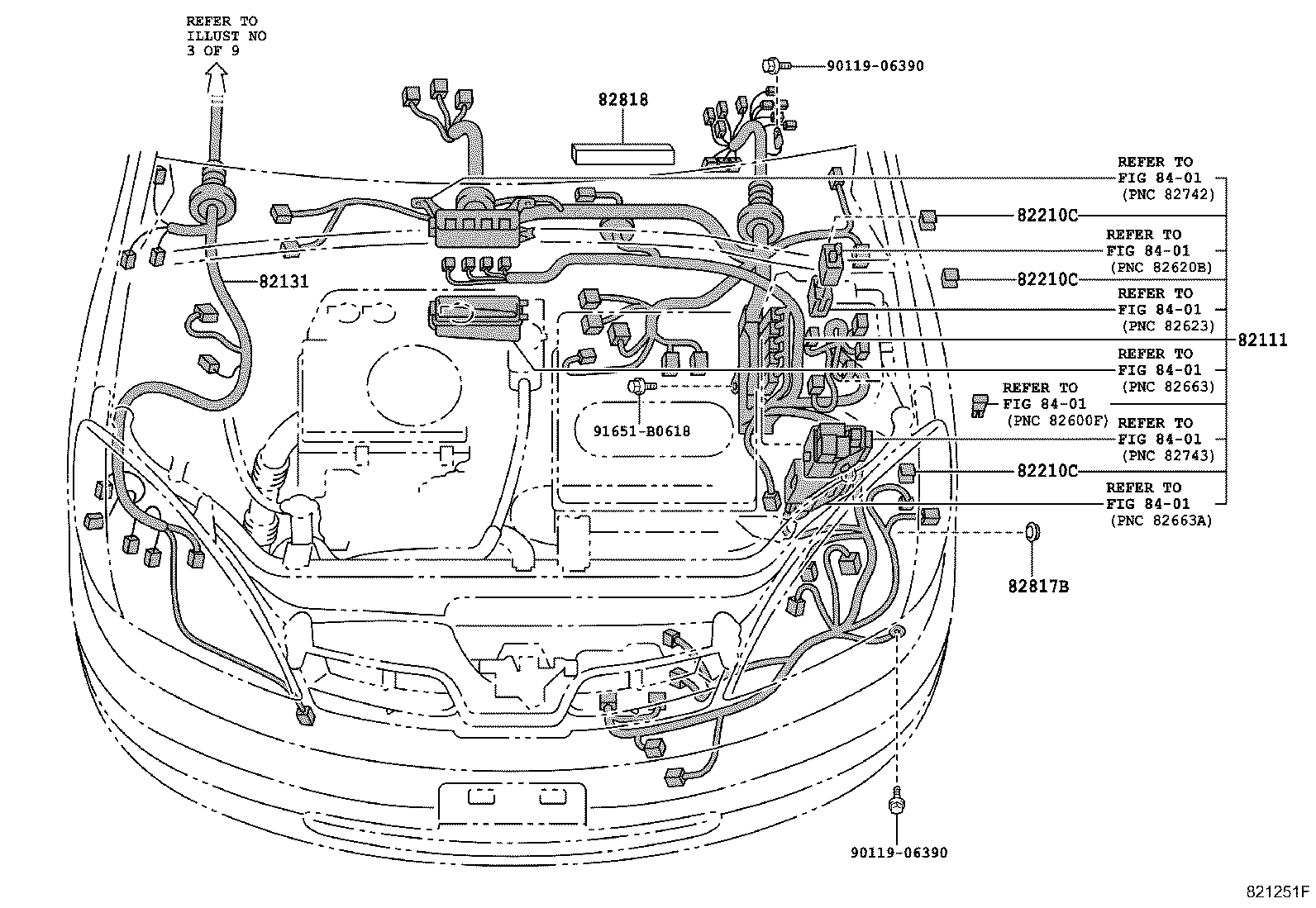

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

22 parts on this figure

Part number	Description	Fitment	Price
82111 — Wire, Engine Room Main
82111-47010	Wire, Engine Room Main 1997-12 → 2000-05 ended	NHW10	¥119,000
82111-47020	Wire, Engine Room Main 2000-05 → —	NHW11	¥168,000
82111-47040 note	Wire, Engine Room Main 2000-05 → 2001-08 ended	NHW11	¥168,000
82111-47041 note	Wire, Engine Room Main 2001-08 → —	NHW11	¥168,000
82131 — Wire, Cowl
82131-47010	Wire, Cowl 1997-12 → 2000-05 ended	NHW10	¥117,000
82131-47020 note	Wire, Cowl 1997-12 → 2000-05 ended	NHW10	¥126,000
82131-47030	Wire, Cowl 2000-05 → —	NHW11	¥79,900
82131-47050 note	Wire, Cowl 2000-05 → 2001-08 ended	NHW11	¥79,900
82131-47051 note	Wire, Cowl 2001-08 → —	NHW11	¥79,900
82131-47110 note	Wire, Cowl 2002-01 → 2002-12 ended	NHW11	¥79,700
82210C — Fusible Link
90982-08246 note	Fusible Link 1997-12 → —	NHW1#	¥440
90982-08254 note	Fusible Link 1997-12 → —	NHW1#	¥440
90982-08274 note	Fusible Link 1997-12 → —	NHW1#	¥480
90982-08280 note	Fusible Link 1997-12 → 2000-05 ended	NHW10	¥590
90982-08280 note	Fusible Link 1997-12 → —	NHW1#	¥590
90982-08281 note	Fusible Link 1997-12 → —	NHW1#	¥590
90982-08282 note	Fusible Link 1997-12 → —	NHW1#	¥440
90982-08283 note	Fusible Link 1997-12 → —	NHW1#	¥440
90982-08284 note	Fusible Link 1997-12 → —	NHW1#	¥590
90982-08285 note	Fusible Link 1997-12 → —	NHW1#	¥440
82817B — Protector, Wiring Harness, NO.3
82817-2B730	Protector, Wiring Harness, NO.3 1997-12 → —	NHW1#	¥540
82818 — Protector, Wiring Harness, NO.2
82818-47010	Protector, Wiring Harness, NO.2 1997-12 → —	NHW1#	¥510

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
