Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

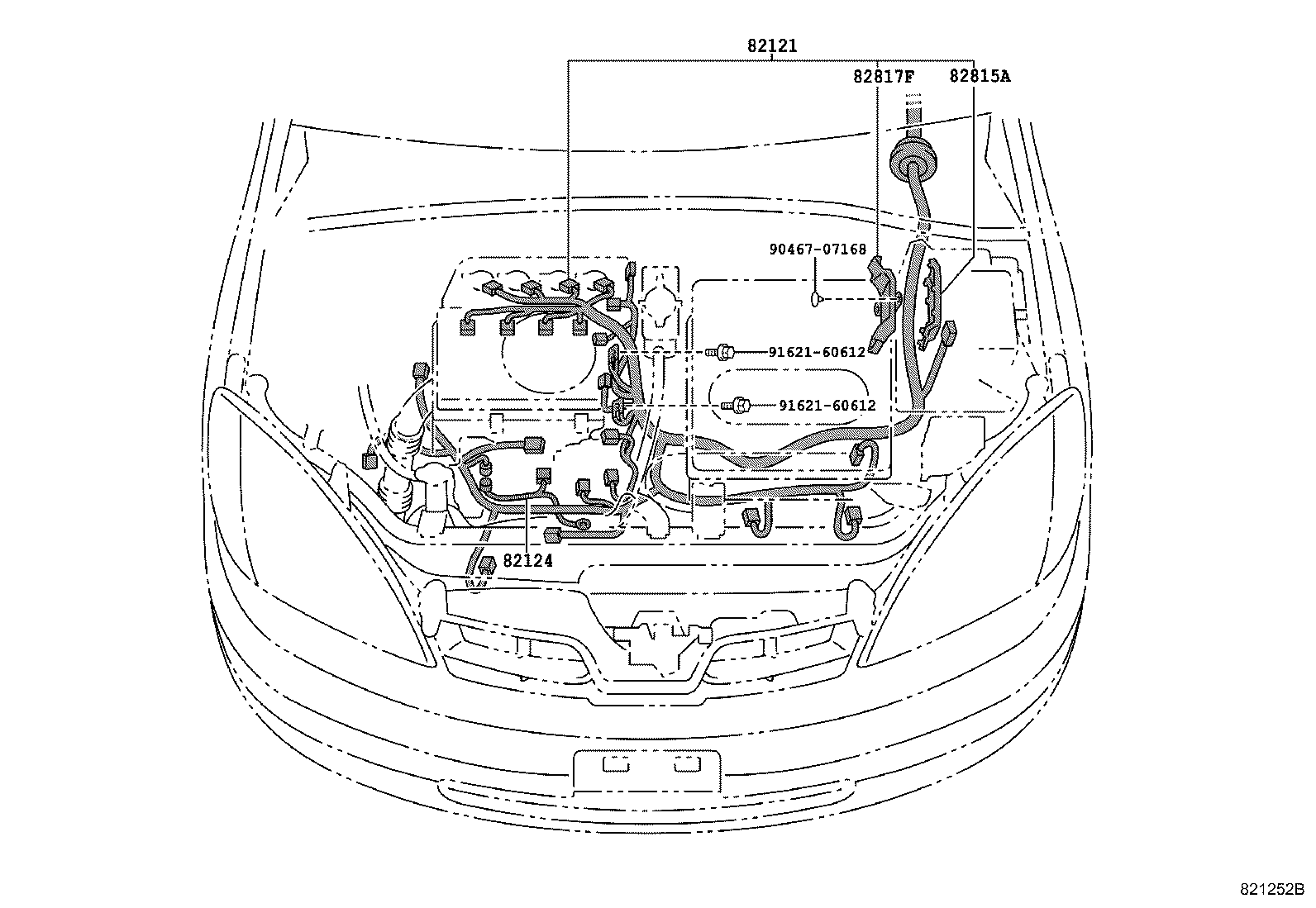

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-47010 |
Wire, Engine
1997-12 → 1999-04
ended
|
NHW10 | ¥42,900 | |
| 82121-47011 |
Wire, Engine
1999-04 → 2000-05
ended
|
NHW10 | ¥61,100 | |
| 82121-47020 |
Wire, Engine
2000-05 → —
|
NHW11 | ¥61,100 | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-47010 |
Wire, Engine, NO.4
1997-12 → —
|
NHW1# | ¥920 | |
| 82815A — Cover, Wiring Harness Protector | ||||
| 82815-47010 |
Cover, Wiring Harness Protector
1997-12 → —
|
NHW1# | ¥790 | |
| 82817F — Protector, Wiring Harness, NO.7 | ||||
| 82817-47020 |
Protector, Wiring Harness, NO.7
1997-12 → —
|
NHW1# | ¥990 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
