Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

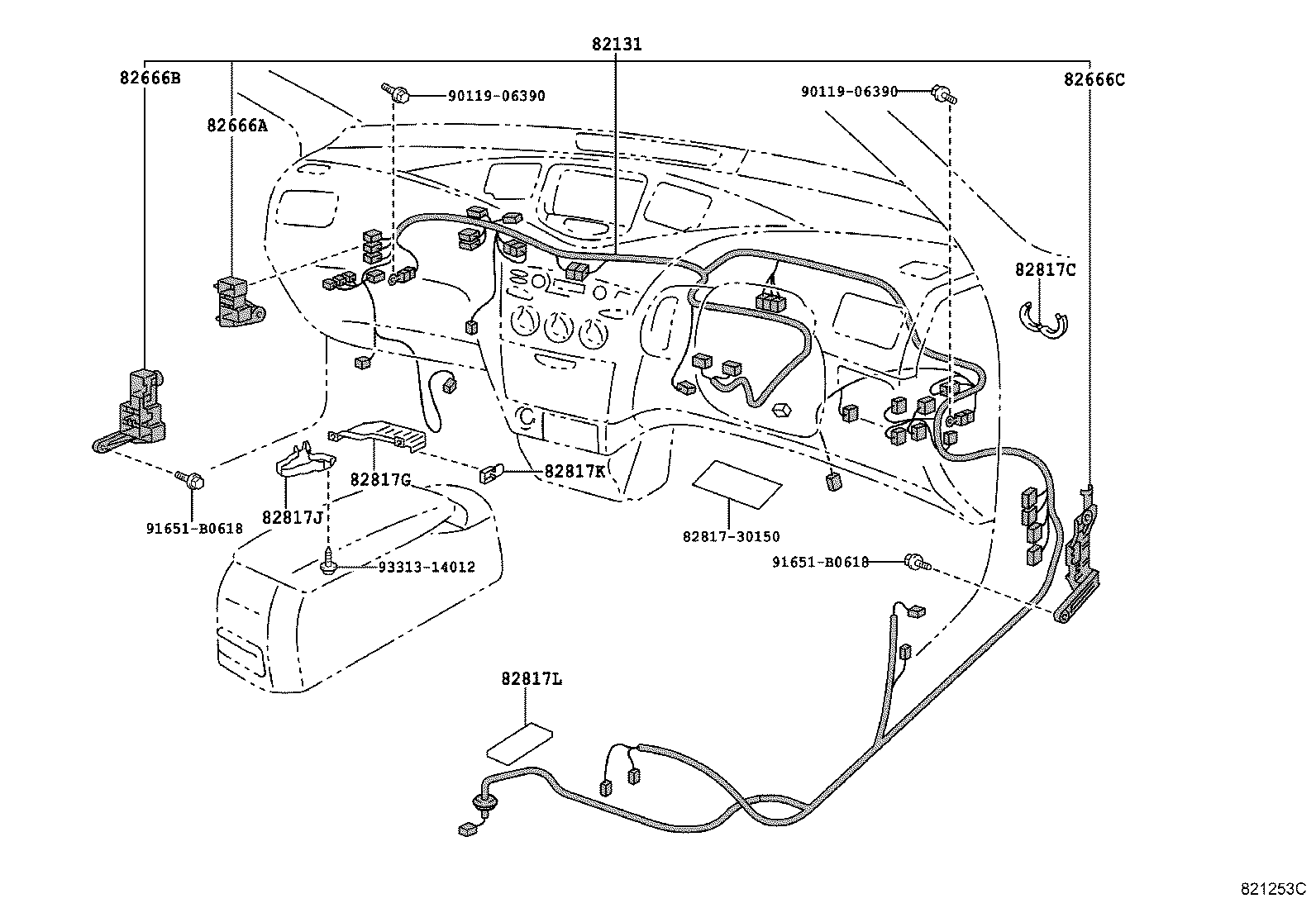

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

16 parts on this figure

Part number	Description	Fitment	Price
82131 — Wire, Cowl
82131-47010	Wire, Cowl 1997-12 → 2000-05 ended	NHW10	¥117,000
82131-47020 note	Wire, Cowl 1997-12 → 2000-05 ended	NHW10	¥126,000
82131-47030	Wire, Cowl 2000-05 → —	NHW11	¥79,900
82131-47050 note	Wire, Cowl 2000-05 → 2001-08 ended	NHW11	¥79,900
82131-47051 note	Wire, Cowl 2001-08 → —	NHW11	¥79,900
82131-47110 note	Wire, Cowl 2002-01 → 2002-12 ended	NHW11	¥79,700
82666A — Holder, Connector NO.2
82666-47010	Holder, Connector NO.2 2000-05 → —	NHW11	¥1,140
82666B — Holder, Connector NO.3
82666-47060	Holder, Connector NO.3 2000-05 → —	NHW11	¥1,870
82666C — Holder, Connector NO.4
82666-47070	Holder, Connector NO.4 2000-05 → —	NHW11	¥1,130
82817C — Protector, Wiring Harness, NO.4
82817-2B730	Protector, Wiring Harness, NO.4 1997-12 → —	NHW1#	¥540
82817G — Protector, Wiring Harness, NO.8
82817-47080	Protector, Wiring Harness, NO.8 1997-12 → 1999-04 ended	NHW10	¥2,570
82817-47081	Protector, Wiring Harness, NO.8 1999-04 → —	NHW1#	¥2,550
82817J — Protector, Wiring Harness, NO.9
82817-47090	Protector, Wiring Harness, NO.9 1997-12 → 2000-05 ended	NHW10	¥1,200
82817-47091	Protector, Wiring Harness, NO.9 2000-05 → —	NHW11	¥1,200
82817K — Protector, Wiring Harness, NO.10
82817-47180	Protector, Wiring Harness, NO.10 2000-05 → —	NHW11	¥2,490
82817L — Protector, Wiring Harness, NO.11
82817-16100	Protector, Wiring Harness, NO.11 2000-05 → —	NHW11	¥410

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
