Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

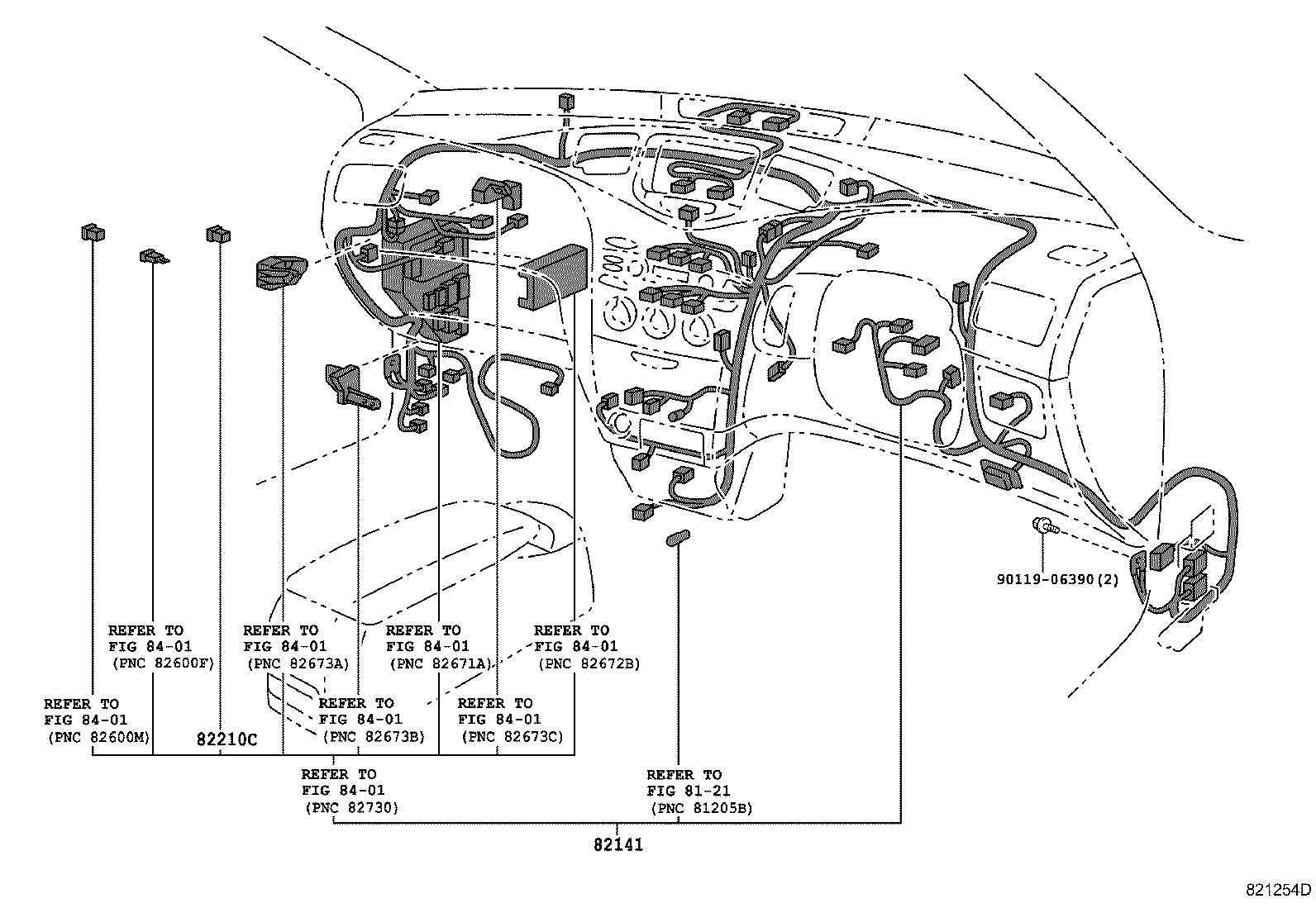

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-47010 |
Wire, Instrument Panel
1997-12 → 2000-05
ended
|
NHW10 | ¥106,000 | |
| 82141-47020 note |
Wire, Instrument Panel
1997-12 → 2000-05
ended
|
NHW10 | ¥106,000 | |
| 82141-47030 |
Wire, Instrument Panel
2000-05 → 2001-08
ended
|
NHW11 | ¥88,300 | |
| 82141-47031 |
Wire, Instrument Panel
2001-08 → —
|
NHW11 | ¥88,300 | |
| 82141-47050 note |
Wire, Instrument Panel
2000-05 → 2001-08
ended
|
NHW11 | ¥114,000 | |
| 82141-47051 note |
Wire, Instrument Panel
2001-08 → —
|
NHW11 | ¥114,000 | |
| 82210C — Fusible Link | ||||
| 90982-08246 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08254 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08274 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥480 | |
| 90982-08280 note |
Fusible Link
1997-12 → 2000-05
ended
|
NHW10 | ¥590 | |
| 90982-08280 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥590 | |
| 90982-08281 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥590 | |
| 90982-08282 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08283 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08284 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥590 | |
| 90982-08285 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
