Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

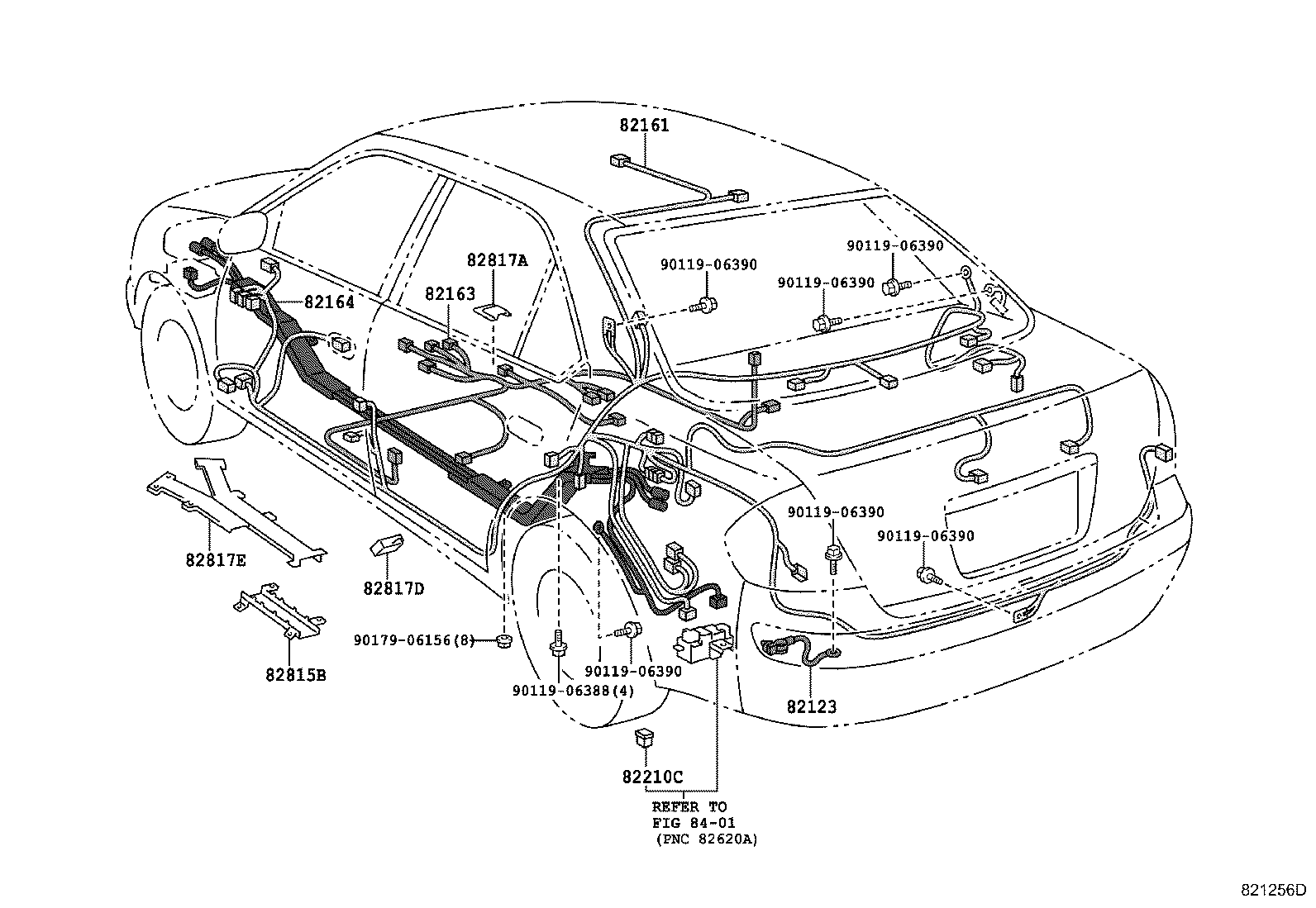

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-47010 |
Wire, Engine, NO.3
1997-12 → —
|
NHW1# | ¥2,740 | |
| 82161 — Wire, Floor | ||||
| 82161-47010 |
Wire, Floor
1997-12 → 2000-05
ended
|
NHW10 | ¥106,000 | |
| 82161-47020 |
Wire, Floor
2000-05 → —
|
NHW11 | ¥68,800 | |
| 82161-47040 note |
Wire, Floor
2000-05 → —
|
NHW11 | ¥68,800 | |
| 82163 — Wire, Floor, NO.3 | ||||
| 82163-47010 |
Wire, Floor, NO.3
1997-12 → 2000-05
ended
|
NHW10 | ¥13,400 | |
| 82163-47020 note |
Wire, Floor, NO.3
1997-12 → 2000-05
ended
|
NHW10 | ¥19,500 | |
| 82163-47050 |
Wire, Floor, NO.3
2000-05 → —
|
NHW11 | ¥9,200 | |
| 82163-47060 note |
Wire, Floor, NO.3
2000-05 → —
|
NHW11 | ¥14,600 | |
| 82164 — Wire, Frame | ||||
| 82164-47010 |
Wire, Frame
2000-05 → —
|
NHW11 | ¥88,300 | |
| 82164-47030 |
Wire, Frame
1997-12 → 2000-05
ended
|
NHW10 | ¥34,000 | |
| 82210C — Fusible Link | ||||
| 90982-08246 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08254 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08274 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥480 | |
| 90982-08280 note |
Fusible Link
1997-12 → 2000-05
ended
|
NHW10 | ¥590 | |
| 90982-08280 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥590 | |
| 90982-08281 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥590 | |
| 90982-08282 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08283 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08284 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥590 | |
| 90982-08285 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 82815B — Cover, Wiring Harness Protector | ||||
| 82815-47040 |
Cover, Wiring Harness Protector
1997-12 → —
|
NHW1# | ¥2,890 | |
| 82817A — Protector, Wiring Harness, NO.2 | ||||
| 82817-47070 |
Protector, Wiring Harness, NO.2
1997-12 → —
|
NHW1# | ¥1,200 | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-47010 |
Protector, Wiring Harness, NO.5
1997-12 → 2000-05
ended
|
NHW10 | ¥760 | |
| 82817-47010 |
Protector, Wiring Harness, NO.5
2000-05 → —
|
NHW11 | ¥760 | |
| 82817E — Protector, Wiring Harness, NO.6 | ||||
| 82817-47040 |
Protector, Wiring Harness, NO.6
1997-12 → —
|
NHW1# | ¥4,080 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
