Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

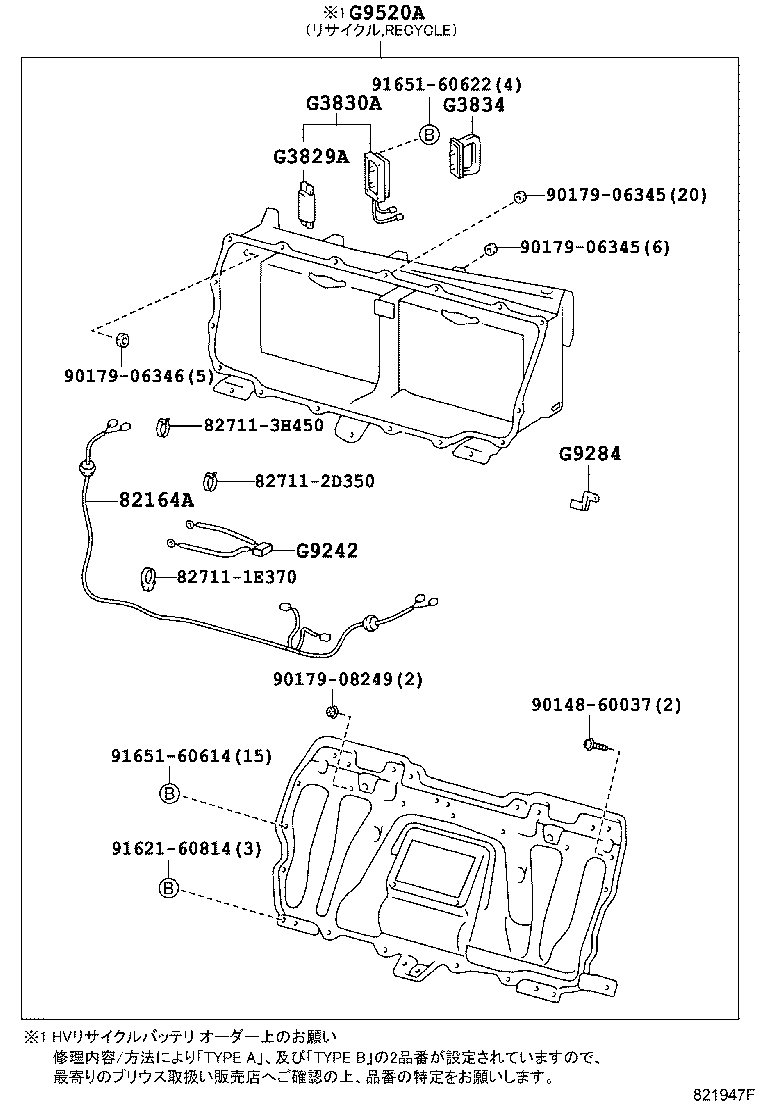

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

16 parts on this figure

Part number	Description	Fitment	Price
82164A — Wire, Floor, NO.4
82164-47021	Wire, Floor, NO.4 1997-12 → 2000-05 ended	NHW10	¥14,900
G3829A — Fuse, Electric Vehicle
90982-11044 note	Fuse, Electric Vehicle 1999-10 → 2000-05 ended	NHW10	¥9,900
90982-11045 note	Fuse, Electric Vehicle 2000-05 → —	NHW11	¥8,500
G3829-47020 note	Fuse, Electric Vehicle 1997-12 → 1999-10 ended	NHW10	¥13,000
G3830A — Plug Assy, Electric Vehicle Battery
G3830-47020	Plug Assy, Electric Vehicle Battery 1997-12 → 2000-05 ended	NHW10	¥33,800
G3830-47030	Plug Assy, Electric Vehicle Battery 2000-05 → —	NHW11	¥25,900
G3834 — Grip, Service Plug
G3834-47010	Grip, Service Plug 1997-12 → 2000-05 ended	NHW10	¥3,180
G3834-47020	Grip, Service Plug 2000-05 → —	NHW11	¥650
G9242 — Cable, Main Battery
G9242-47020	Cable, Main Battery 2000-05 → —	NHW11	¥1,300
G9242-47080	Cable, Main Battery 1997-12 → 2000-05 ended	NHW10	¥11,300
G9284 — Bracket, Hybrid Battery Earth
G9284-47010	Bracket, Hybrid Battery Earth 1997-12 → 2000-01 ended	NHW10	¥600
G9284-47011	Bracket, Hybrid Battery Earth 2000-01 → 2000-05 ended	NHW10	¥580
G9520A — Battery Assy, HV Recycle
G9520-47010 note	Battery Assy, HV Recycle 1997-12 → 1999-06 ended	NHW10	¥330,000
G9520-47020 note	Battery Assy, HV Recycle 1997-12 → 1999-06 ended	NHW10	¥108,000
G9520-47030 note	Battery Assy, HV Recycle 1999-06 → 2000-05 ended	NHW10	¥305,000
G9520-47040 note	Battery Assy, HV Recycle 1999-06 → 2000-05 ended	NHW10	¥108,000

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
