Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

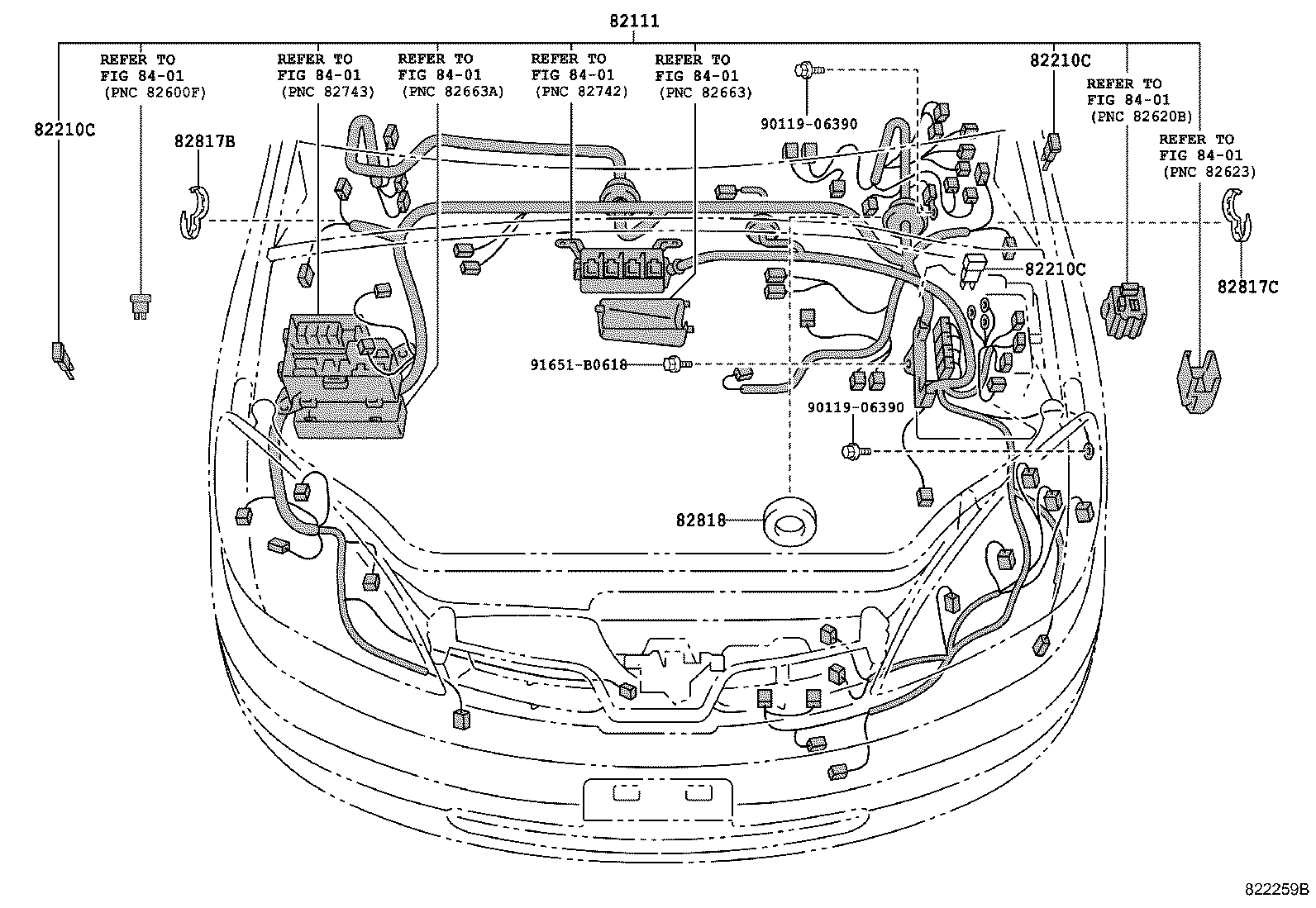

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82111 — Wire, Engine Room Main | ||||
| 82111-47010 |
Wire, Engine Room Main
1997-12 → 2000-05
ended
|
NHW10 | ¥119,000 | |
| 82111-47020 |
Wire, Engine Room Main
2000-05 → —
|
NHW11 | ¥168,000 | |
| 82111-47040 note |
Wire, Engine Room Main
2000-05 → 2001-08
ended
|
NHW11 | ¥168,000 | |
| 82111-47041 note |
Wire, Engine Room Main
2001-08 → —
|
NHW11 | ¥168,000 | |
| 82210C — Fusible Link | ||||
| 90982-08246 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08254 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08274 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥480 | |
| 90982-08280 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥590 | |
| 90982-08280 note |
Fusible Link
1997-12 → 2000-05
ended
|
NHW10 | ¥590 | |
| 90982-08281 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥590 | |
| 90982-08282 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08283 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 90982-08284 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥590 | |
| 90982-08285 note |
Fusible Link
1997-12 → —
|
NHW1# | ¥440 | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-2B730 |
Protector, Wiring Harness, NO.3
1997-12 → —
|
NHW1# | ¥540 | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-2B730 |
Protector, Wiring Harness, NO.4
1997-12 → —
|
NHW1# | ¥540 | |
| 82818 — Protector, Wiring Harness, NO.2 | ||||
| 82818-47010 |
Protector, Wiring Harness, NO.2
1997-12 → —
|
NHW1# | ¥510 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
