Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

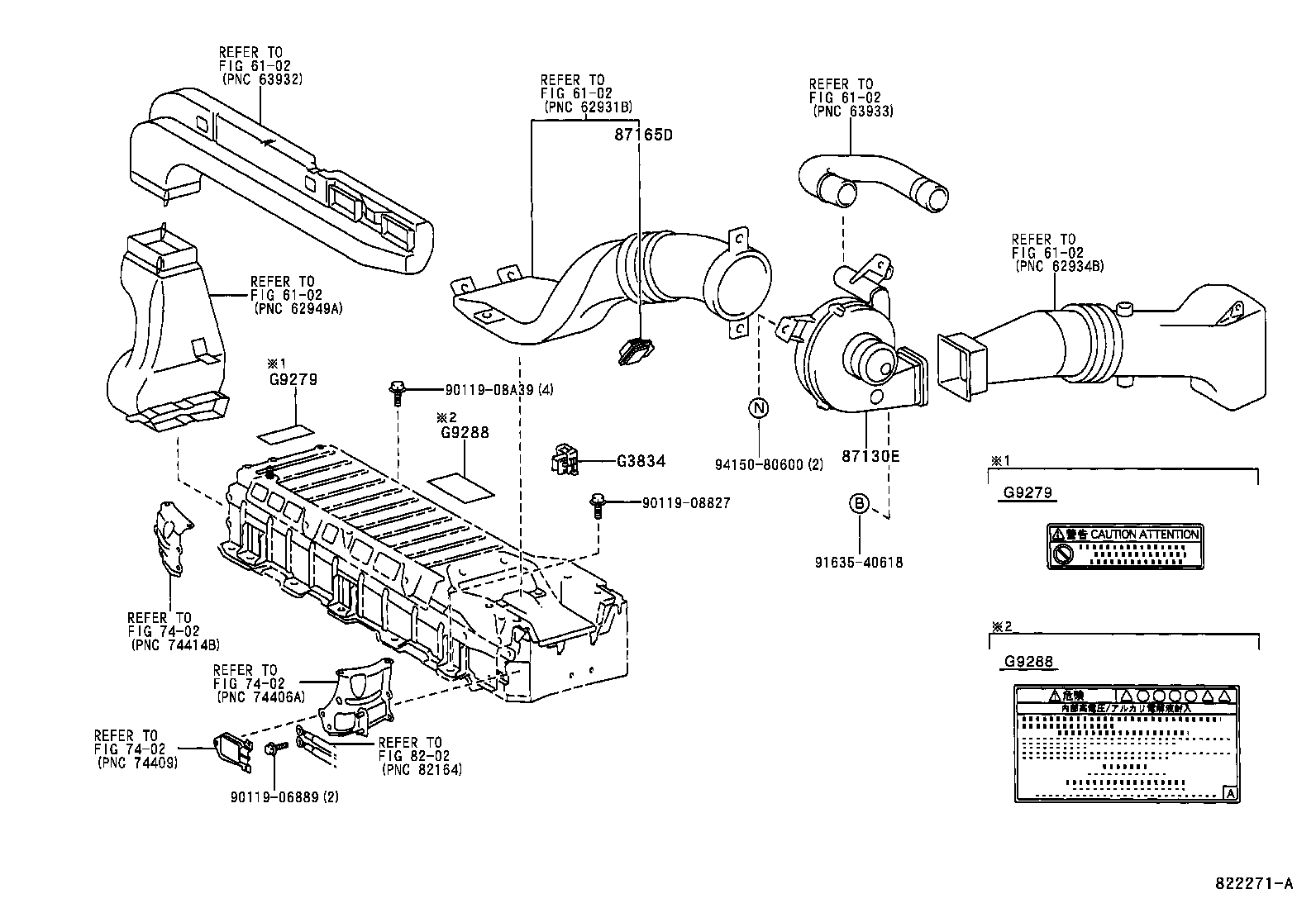

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87130E — Blower Assy, Battery | ||||
| 87130-47030 |
Blower Assy, Battery
1997-12 → 2000-05
ended
|
NHW10 | — | |
| 87130-47060 |
Blower Assy, Battery
2000-05 → —
|
NHW11 | — | |
| 87165D — Control, Battery Blower Motor | ||||
| 87165-41010 |
Control, Battery Blower Motor
2000-05 → —
|
NHW11 | — | |
| G3834 — Grip, Service Plug | ||||
| G3834-47010 |
Grip, Service Plug
1997-12 → 2000-05
ended
|
NHW10 | ¥3,180 | |
| G3834-47020 |
Grip, Service Plug
2000-05 → —
|
NHW11 | ¥650 | |
| G9279 — Label, Battery Caution, NO.4 | ||||
| G9279-47020 |
Label, Battery Caution, NO.4
2000-05 → —
|
NHW11 | ¥240 | |
| G9288 — Label, Battery Charging Notice | ||||
| G9288-47010 |
Label, Battery Charging Notice
2000-05 → —
|
NHW11 | ¥530 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
