Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

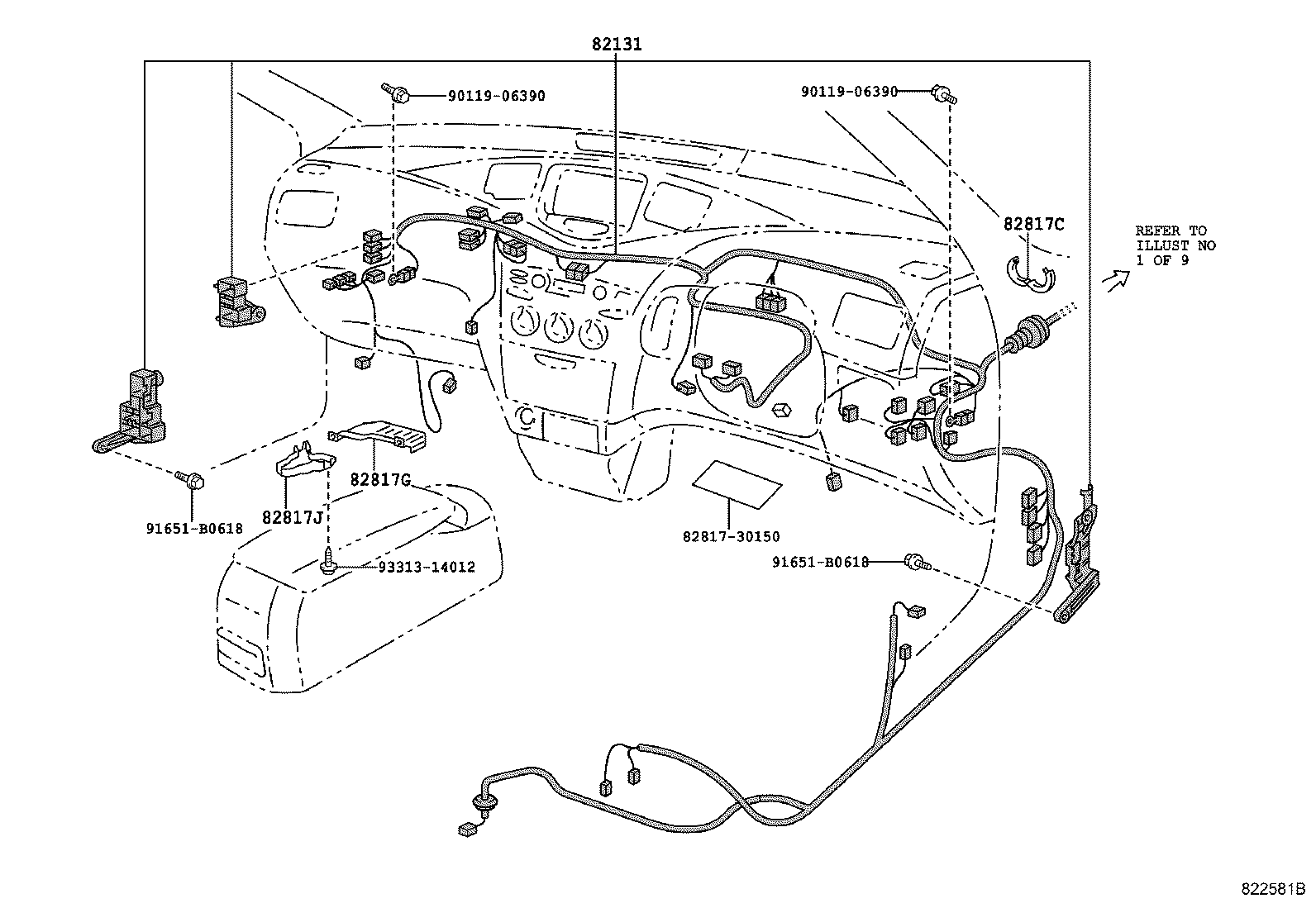

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82131 — Wire, Cowl | ||||
| 82131-47010 |
Wire, Cowl
1997-12 → 2000-05
ended
|
NHW10 | ¥117,000 | |
| 82131-47020 note |
Wire, Cowl
1997-12 → 2000-05
ended
|
NHW10 | ¥126,000 | |
| 82131-47030 |
Wire, Cowl
2000-05 → —
|
NHW11 | ¥79,900 | |
| 82131-47050 note |
Wire, Cowl
2000-05 → 2001-08
ended
|
NHW11 | ¥79,900 | |
| 82131-47051 note |
Wire, Cowl
2001-08 → —
|
NHW11 | ¥79,900 | |
| 82131-47110 note |
Wire, Cowl
2002-01 → 2002-12
ended
|
NHW11 | ¥79,700 | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-2B730 |
Protector, Wiring Harness, NO.4
1997-12 → —
|
NHW1# | ¥540 | |
| 82817G — Protector, Wiring Harness, NO.8 | ||||
| 82817-47080 |
Protector, Wiring Harness, NO.8
1997-12 → 1999-04
ended
|
NHW10 | ¥2,570 | |
| 82817-47081 |
Protector, Wiring Harness, NO.8
1999-04 → —
|
NHW1# | ¥2,550 | |
| 82817J — Protector, Wiring Harness, NO.9 | ||||
| 82817-47090 |
Protector, Wiring Harness, NO.9
1997-12 → 2000-05
ended
|
NHW10 | ¥1,200 | |
| 82817-47091 |
Protector, Wiring Harness, NO.9
2000-05 → —
|
NHW11 | ¥1,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
