Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

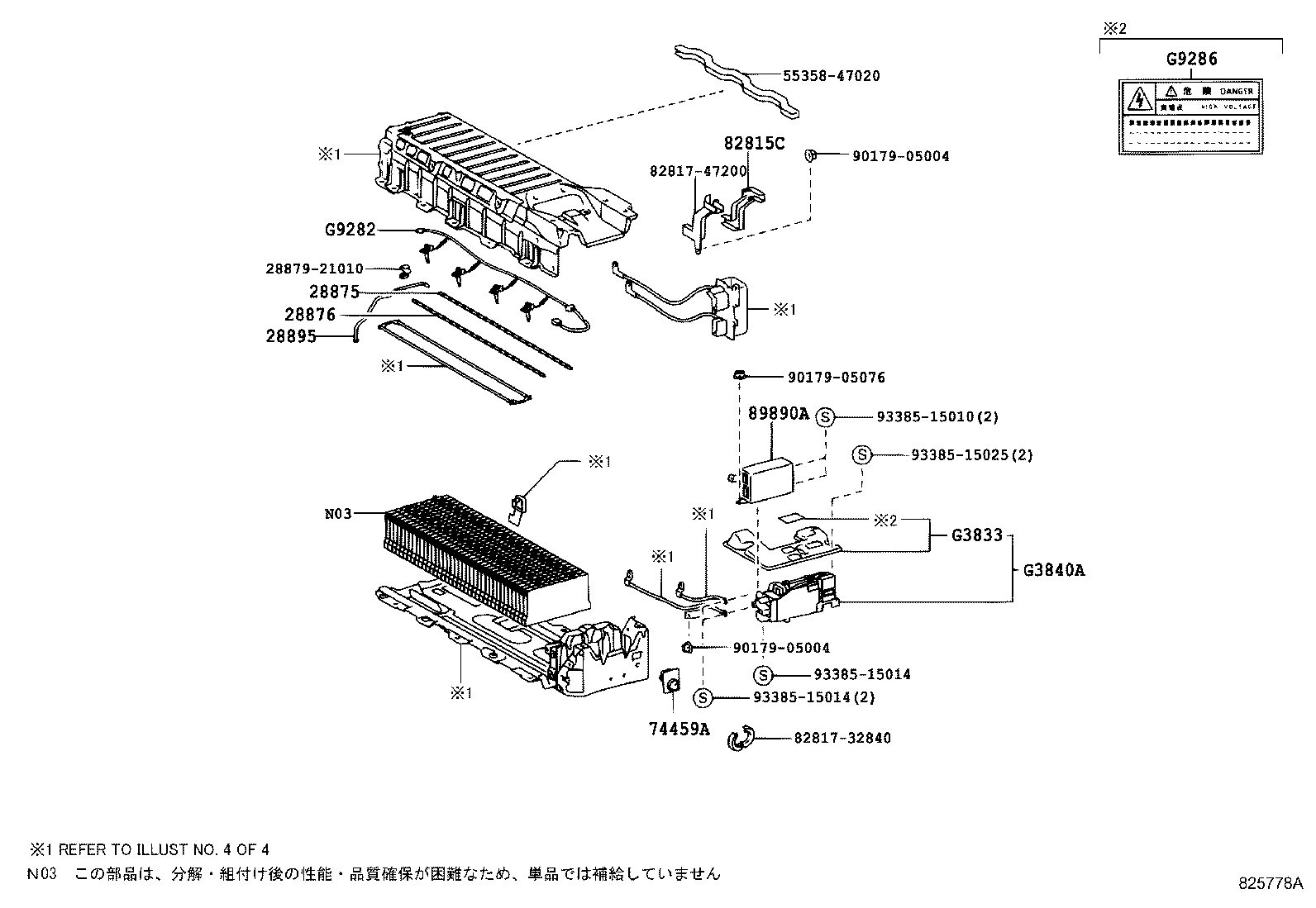

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

14 parts on this figure

Part number	Description	Fitment	Price
28875 — Duct, Battery Insulator, NO.1
28875-21010	Duct, Battery Insulator, NO.1 2000-05 → —	1NZFXE NHW11	¥6,700
28876 — Duct, Battery Insulator, NO.2
28876-21010	Duct, Battery Insulator, NO.2 2000-05 → —	1NZFXE NHW11	¥6,700
28895 — Rubber, Battery Insulator
28895-21010	Rubber, Battery Insulator 2000-05 → —	1NZFXE NHW11	¥5,700
74459A — Lid, Battery Cover, NO.2
74459-47010	Lid, Battery Cover, NO.2 2000-05 → —	NHW11	¥610
82815C — Cover, Wiring Harness Protector, NO.1
82815-47110	Cover, Wiring Harness Protector, NO.1 2000-05 → —	NHW11	¥540
89890A — Computer Assy, Battery
89890-47010 note	Computer Assy, Battery 1997-12 → 1999-06 ended	NHW10	¥249,000
89890-47011 note	Computer Assy, Battery 1999-06 → 2000-05 ended	NHW10	¥249,000
89890-47040 note	Computer Assy, Battery 2000-05 → 2003-08 ended	NHW11	¥205,000
89890-47050 note	Computer Assy, Battery 2000-05 → 2003-08 ended	NHW11	¥207,000
G3833 — Cover, Electric Vehicle Battery Fuse
G3833-47010	Cover, Electric Vehicle Battery Fuse 1997-12 → —	NHW1#	¥5,700
G3840A — Relay Assy, Hybrid Vehicle
G3840-47010	Relay Assy, Hybrid Vehicle 2000-05 → 2000-08 ended	NHW11	¥139,000
G3840-47011	Relay Assy, Hybrid Vehicle 2000-08 → —	NHW11	¥139,000
G9282 — Thermistor, Hybrid Battery
G9282-47030	Thermistor, Hybrid Battery 2000-05 → —	NHW11	¥13,000
G9286 — Label, Hybrid Battery Caution, NO.2
G9286-47010	Label, Hybrid Battery Caution, NO.2 1997-12 → —	NHW1#	¥180

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
