Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

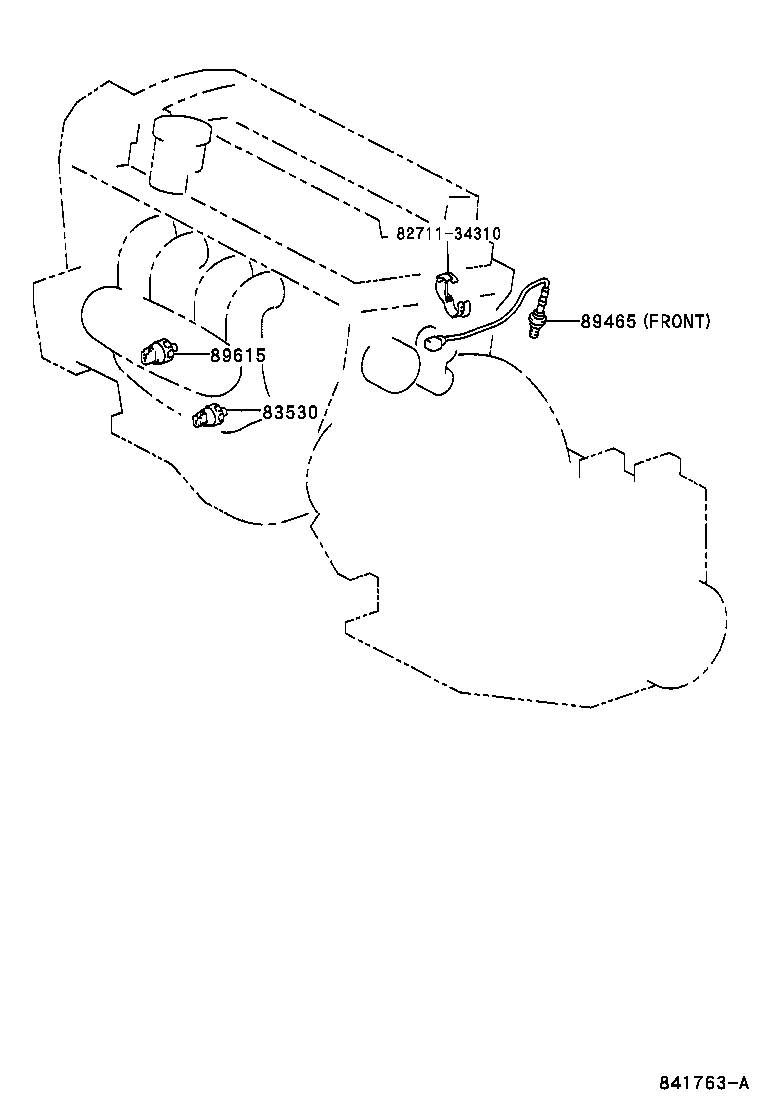

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
1998-03 → —
|
NHW1# | ¥1,970 | |
| 83530-30090 |
Switch Assy, Oil Pressure (FOR ENGINE)
1997-12 → 1998-03
ended
|
NHW10 | ¥2,100 | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
1998-03 → —
|
NHW1# | ¥1,970 | |
| 89465 — Sensor, Oxygen | ||||
| 89465-47010 note |
Sensor, Oxygen
1997-12 → 2000-05
ended
|
NHW10 | ¥9,000 | |
| 89465-47020 note |
Sensor, Oxygen
1997-12 → 2000-05
ended
|
NHW10 | ¥10,700 | |
| 89465-47030 note |
Sensor, Oxygen
2000-05 → —
|
NHW11 | ¥10,700 | |
| 89465-47040 note |
Sensor, Oxygen
2000-05 → —
|
NHW11 | ¥10,700 | |
| 89615 — Sensor, Knock Control | ||||
| 89615-22030 |
Sensor, Knock Control
1997-12 → 2000-05
ended
|
NHW10 | ¥15,500 | |
| 89615-52010 note |
Sensor, Knock Control
2000-05 → 2000-07
ended
|
NHW11 | ¥16,900 | |
| 89615-52030 note |
Sensor, Knock Control
2000-05 → —
|
NHW11 | ¥16,900 | |
| 89615-52040 note |
Sensor, Knock Control
2000-05 → —
|
NHW11 | ¥16,800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
