Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

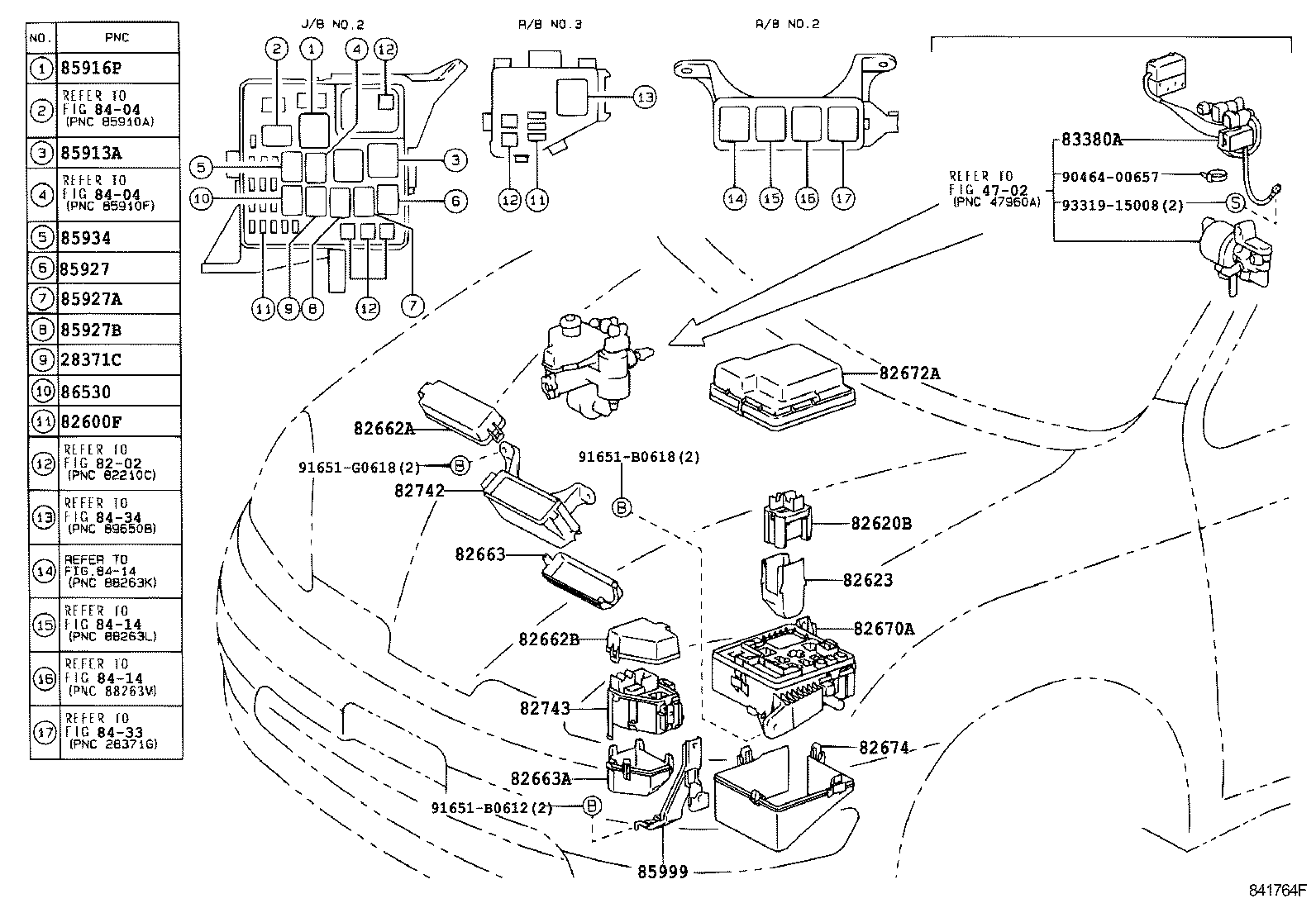

Exploded illustration 841764F 85916P — RELAY, HEADLAMP (1 parts) 9331915008 — not listed in this catalogue 85913A — RELAY, HEATER CONTROL (1 parts) 8414 — not listed in this catalogue 85934 — RELAY, MAGNET-CLUTCH (1 parts) 85927 — RELAY, COOLING FAN (1 parts) 85927A — RELAY, COOLING FAN, NO.2 (1 parts) 85927B — RELAY, COOLING FAN, NO.3 (1 parts) 28371C — RELAY, IGNITION, NO.2 (1 parts) 86530 — RELAY ASSY, HORN (1 parts) 82600F — FUSE, FUSE BLOCK (7 parts) 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (1 parts) 82742 — BLOCK, ENGINE ROOM RELAY, NO.2 (1 parts) 82663 — COVER, RELAY BLOCK, LOWER (1 parts) 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (2 parts) 82743 — BLOCK, ENGINE ROOM RELAY, NO.3 (2 parts) 82663A — COVER, RELAY BLOCK, LOWER, NO.2 (2 parts) 91651B0612 — not listed in this catalogue 91651B0618 — not listed in this catalogue 85999 — BRACKET, COMBINATION RELAY (2 parts) 82623 — COVER, FUSIBLE LINK, LOWER (1 parts) 82670A — BLOCK ASSY, JUNCTION, NO.1 (1 parts) 82674 — COVER, JUNCTION BLOCK LOWER (1 parts) 91651G0618 — not listed in this catalogue 82672A — COVER, JUNCTION BLOCK (2 parts) 82620B — BLOCK ASSY, FUSIBLE LINK (1 parts) 9046400657 — not listed in this catalogue 83380A — SWITCH ASSY, PRESSURE (1 parts) 8404 — not listed in this catalogue 8404 — not listed in this catalogue 8202 — not listed in this catalogue 8434 — not listed in this catalogue 8433 — not listed in this catalogue 8414 — not listed in this catalogue 4702 — not listed in this catalogue
841764F · 22 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
28371C — Relay, Ignition, NO.2
90987-02012 Relay, Ignition, NO.2
1997-12 → —
1NZFXE NHW1# ¥2,930
82600F — Fuse, Fuse Block
90982-09007 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥60
90982-09008 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥80
90982-09009 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥70
90982-09010 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥70
90982-09011 note Fuse, Fuse Block
1997-12 → 2000-05 ended
NHW10 ¥70
90982-09012 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥80
90982-09013 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥70
82620B — Block Assy, Fusible Link
82620-47010 Block Assy, Fusible Link
1997-12 → —
NHW1# ¥3,580
82623 — Cover, Fusible Link, Lower
82623-47010 Cover, Fusible Link, Lower
1997-12 → —
NHW1# ¥580
82662A — Cover, Relay Block, Upper, NO.1
82662-47010 Cover, Relay Block, Upper, NO.1
1997-12 → —
NHW1# ¥1,130
82662B — Cover, Relay Block, Upper, NO.2
82662-47020 Cover, Relay Block, Upper, NO.2
1997-12 → 2000-05 ended
NHW10 ¥1,120
82662-47030 Cover, Relay Block, Upper, NO.2
2000-05 → —
NHW11 ¥2,160
82663 — Cover, Relay Block, Lower
82663-47010 Cover, Relay Block, Lower
1997-12 → —
NHW1# ¥790
82663A — Cover, Relay Block, Lower, NO.2
82663-47020 Cover, Relay Block, Lower, NO.2
1997-12 → 2000-05 ended
NHW10 ¥750
82663-47030 Cover, Relay Block, Lower, NO.2
2000-05 → —
NHW11 ¥1,950
82670A — Block Assy, Junction, NO.1
82721-47010 Block Assy, Junction, NO.1
1997-12 → —
NHW1# ¥18,700
82672A — Cover, Junction Block
82672-47010 Cover, Junction Block
1997-12 → 2000-05 ended
NHW10 ¥2,390
82672-47040 Cover, Junction Block
2000-05 → —
NHW11 ¥2,390
82674 — Cover, Junction Block Lower
82674-47010 Cover, Junction Block Lower
1997-12 → —
NHW1# ¥3,170
82742 — Block, Engine Room Relay, NO.2
82742-47010 Block, Engine Room Relay, NO.2
1997-12 → —
NHW1# ¥4,510
82743 — Block, Engine Room Relay, NO.3
82743-47010 Block, Engine Room Relay, NO.3
1997-12 → 2000-05 ended
NHW10 ¥4,750
82743-47020 Block, Engine Room Relay, NO.3
2000-05 → —
NHW11 ¥7,800
83380A — Switch Assy, Pressure
83380-47010 Switch Assy, Pressure
1997-12 → —
NHW1# ¥26,800
85913A — Relay, Heater Control
90987-04002 Relay, Heater Control
1997-12 → —
NHW1# ¥2,430
85916P — Relay, Headlamp
90987-02006 Relay, Headlamp
1997-12 → —
NHW1# ¥2,560
85927 — Relay, Cooling Fan
90987-02012 Relay, Cooling Fan
1997-12 → —
NHW1# ¥2,930
85927A — Relay, Cooling Fan, NO.2
90987-04004 Relay, Cooling Fan, NO.2
1997-12 → —
NHW1# ¥2,810
85927B — Relay, Cooling Fan, NO.3
90987-02012 Relay, Cooling Fan, NO.3
1997-12 → —
NHW1# ¥2,930
85934 — Relay, Magnet-clutch
90987-02012 Relay, Magnet-clutch
1997-12 → —
NHW1# ¥2,930
85999 — Bracket, Combination Relay
85999-47010 Bracket, Combination Relay
1997-12 → 2000-05 ended
NHW10 ¥1,200
85999-47030 Bracket, Combination Relay
2000-05 → —
NHW11 ¥480
86530 — Relay Assy, Horn
90987-02012 Relay Assy, Horn
1997-12 → —
NHW1# ¥2,930
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
