Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

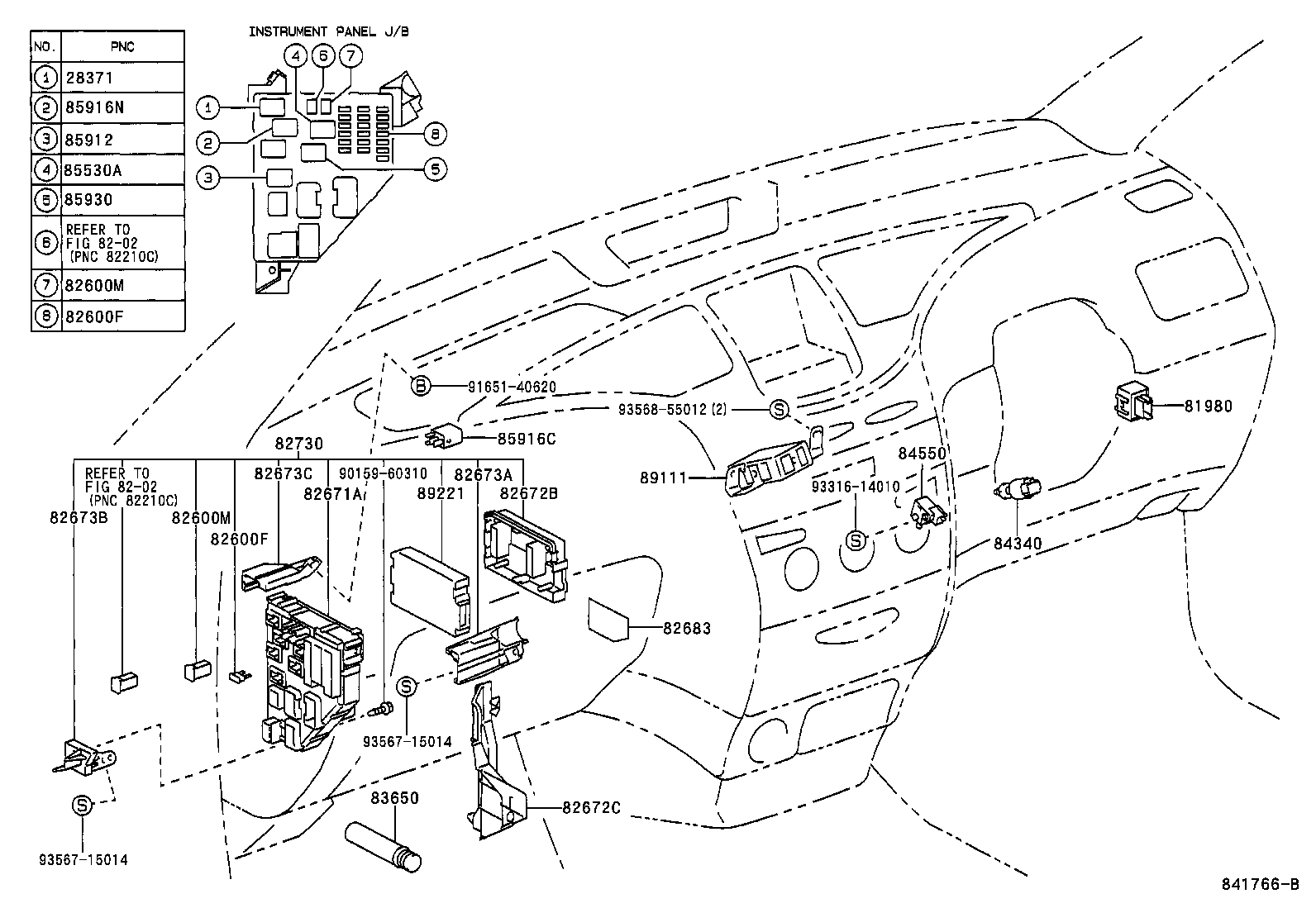

Exploded illustration 841766B 28371 — RELAY, IGNITION, NO.1 (2 parts) 85916N — RELAY, TAILLAMP (2 parts) 85912 — RELAY, DEFOGGER (3 parts) 85530A — RELAY, POWER OUTLET SOCKET (2 parts) 85930 — RELAY ASSY, POWER WINDOW (2 parts) 8202 — not listed in this catalogue 82600M — FUSE, MEDIUM CURRENT (1 parts) 82600F — FUSE, FUSE BLOCK (7 parts) 9165140620 — not listed in this catalogue 81980 — FLASHER ASSY, TURN SIGNAL (2 parts) 9356855012 — not listed in this catalogue 85916C — RELAY, BACK UP LAMP (2 parts) 82730 — BLOCK ASSY, INSTRUMENT PANEL JUNCTION (3 parts) 84550 — SWITCH ASSY, PARKING BRAKE (1 parts) 82673C — BRACKET, JUNCTION BLOCK (1 parts) 9015960310 — not listed in this catalogue 82673A — BRACKET, JUNCTION BLOCK, NO.1 (1 parts) 89111 — COMPUTER, NETWORK GATEWAY (1 parts) 8202 — not listed in this catalogue 9331614010 — not listed in this catalogue 89221 — COMPUTER, MULTIPLEX NETWORK BODY (2 parts) 82672B — COVER, JUNCTION BLOCK (1 parts) 82671A — BLOCK, JUNCTION (1 parts) 82673B — BRACKET, JUNCTION BLOCK, NO.2 (1 parts) 82600M — FUSE, MEDIUM CURRENT (1 parts) 82600F — FUSE, FUSE BLOCK (7 parts) 84340 — SWITCH ASSY, STOP LAMP (5 parts) 82683 — PLATE, FUSE BLOCK CAUTION (3 parts) 9356715014 — not listed in this catalogue 83650 — FUSEE (1 parts) 82672C — COVER, JUNCTION BLOCK (1 parts) 9356715014 — not listed in this catalogue
841766B · 24 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
45 parts on this figure
Part number Description Fitment Price
28371 — Relay, Ignition, NO.1
90987-02012 Relay, Ignition, NO.1
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥2,930
90987-02020 Relay, Ignition, NO.1
2000-05 → —
1NZFXE NHW11 ¥4,660
81980 — Flasher Assy, Turn Signal
81980-47010 note Flasher Assy, Turn Signal
1998-05 → —
NHW1# ¥7,600
81980-50020 note Flasher Assy, Turn Signal
1997-12 → 1998-05 ended
NHW10 ¥7,600
82600F — Fuse, Fuse Block
90982-09007 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥60
90982-09008 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥80
90982-09009 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥70
90982-09010 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥70
90982-09011 note Fuse, Fuse Block
1997-12 → 2000-05 ended
NHW10 ¥70
90982-09012 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥80
90982-09013 note Fuse, Fuse Block
1997-12 → —
NHW1# ¥70
82600M — Fuse, Medium Current
90982-10001 note Fuse, Medium Current
1997-12 → —
NHW1# ¥240
82671A — Block, Junction
82732-47010 Block, Junction
1997-12 → —
NHW1# ¥10,500
82672B — Cover, Junction Block
82672-47020 Cover, Junction Block
1997-12 → —
NHW1# ¥1,550
82672C — Cover, Junction Block
82672-47030 Cover, Junction Block
1997-12 → —
NHW1# ¥1,550
82673A — Bracket, Junction Block, NO.1
82673-47010 Bracket, Junction Block, NO.1
1997-12 → —
NHW1# ¥1,190
82673B — Bracket, Junction Block, NO.2
82673-47020 Bracket, Junction Block, NO.2
1997-12 → —
NHW1# ¥1,050
82673C — Bracket, Junction Block
82673-47030 Bracket, Junction Block
1997-12 → —
NHW1# ¥1,190
82683 — Plate, Fuse Block Caution
82683-47010 Plate, Fuse Block Caution
1997-12 → 2000-05 ended
NHW10 ¥270
82683-47020 Plate, Fuse Block Caution
2000-05 → 2001-08 ended
NHW11 ¥270
82683-47021 Plate, Fuse Block Caution
2001-08 → —
NHW11 ¥270
82730 — Block Assy, Instrument Panel Junction
82730-47010 Block Assy, Instrument Panel Junction
1997-12 → 2000-05 ended
NHW10 ¥57,600
82730-47050 Block Assy, Instrument Panel Junction
2000-05 → 2001-08 ended
NHW11 ¥76,500
82730-47051 Block Assy, Instrument Panel Junction
2001-08 → —
NHW11 ¥76,500
83650 — Fusee
90986-01005 Fusee
1997-12 → —
NHW1# —
84340 — Switch Assy, Stop Lamp
84340-20060 Switch Assy, Stop Lamp
2000-12 → —
NHW11 G ¥1,850
84340-20060 note Switch Assy, Stop Lamp
2000-12 → —
NHW11 S ¥1,850
84340-32050 Switch Assy, Stop Lamp
1997-12 → —
NHW1# N,S ¥2,240
84340-32070 Switch Assy, Stop Lamp
2000-05 → 2000-12 ended
NHW11 G ¥4,420
84340-32070 note Switch Assy, Stop Lamp
2000-05 → 2000-12 ended
NHW11 S ¥4,420
84550 — Switch Assy, Parking Brake
84550-16060 Switch Assy, Parking Brake
1997-12 → —
NHW1# ¥1,150
85530A — Relay, Power Outlet Socket
90987-02012 Relay, Power Outlet Socket
1997-12 → 2000-05 ended
NHW10 ¥2,930
90987-02020 Relay, Power Outlet Socket
2000-05 → —
NHW11 ¥4,660
85912 — Relay, Defogger
90987-02012 note Relay, Defogger
2002-01 → 2002-12 ended
NHW11 ¥2,930
90987-02012 Relay, Defogger
1997-12 → 2000-05 ended
NHW10 ¥2,930
90987-02020 Relay, Defogger
2000-05 → —
NHW11 ¥4,660
85916C — Relay, Back UP Lamp
90987-02012 Relay, Back UP Lamp
1997-12 → 2000-05 ended
NHW10 ¥2,930
90987-02020 Relay, Back UP Lamp
2000-05 → —
NHW11 ¥4,660
85916N — Relay, Taillamp
90987-02012 Relay, Taillamp
1997-12 → 2000-05 ended
NHW10 ¥2,930
90987-02020 Relay, Taillamp
2000-05 → —
NHW11 ¥4,660
85930 — Relay Assy, Power Window
90987-02012 Relay Assy, Power Window
1997-12 → 2000-05 ended
NHW10 ¥2,930
90987-02020 Relay Assy, Power Window
2000-05 → —
NHW11 ¥4,660
89111 — Computer, Network Gateway
89111-47010 Computer, Network Gateway
2000-05 → —
NHW11 ¥21,900
89221 — Computer, Multiplex Network Body
89221-47010 Computer, Multiplex Network Body
1997-12 → 2000-05 ended
NHW10 ¥33,800
89221-49015 Computer, Multiplex Network Body
2000-05 → —
NHW11 ¥52,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
