Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

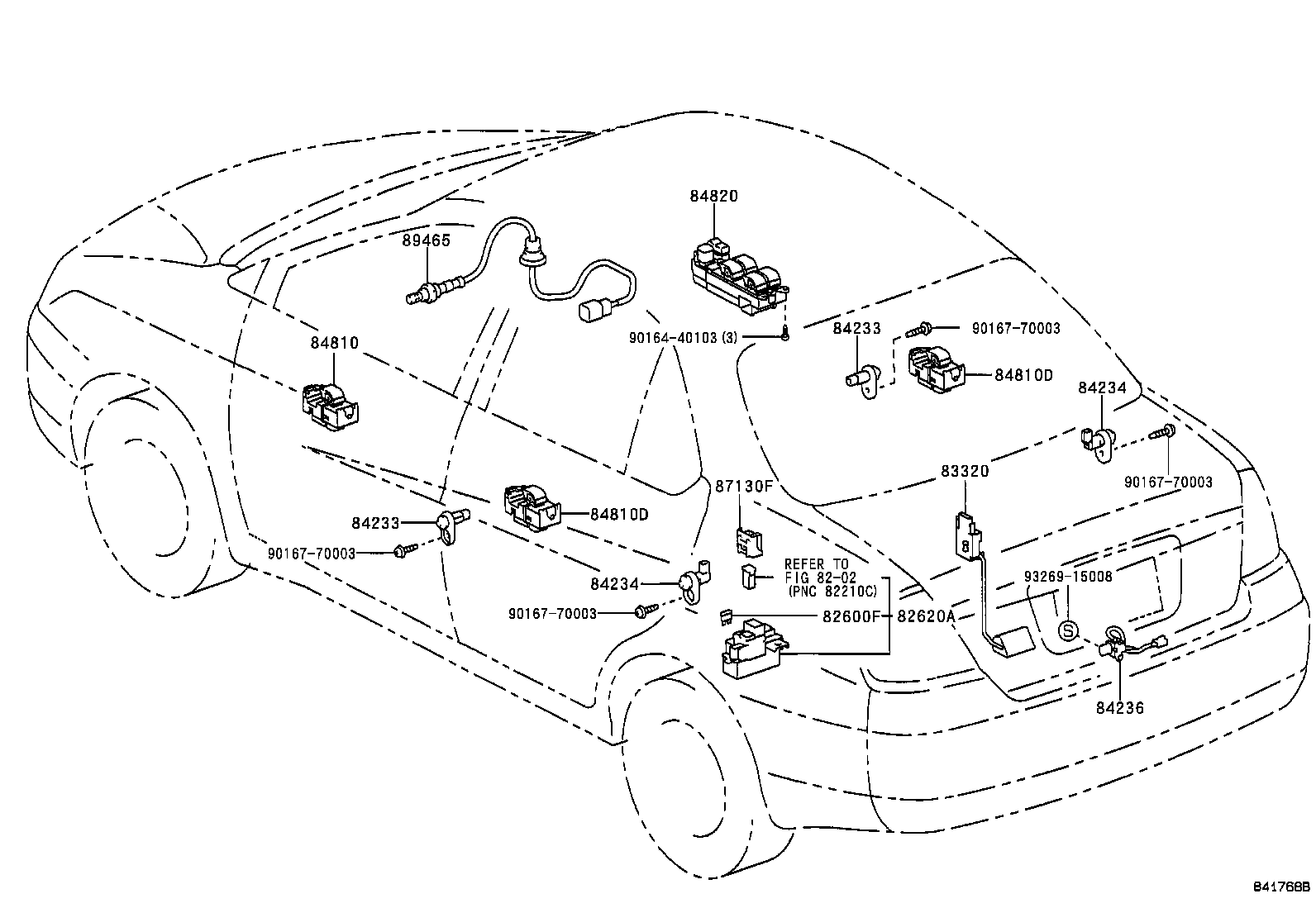

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82600F — Fuse, Fuse Block | ||||
| 90982-09007 note |
Fuse, Fuse Block
1997-12 → —
|
NHW1# | ¥60 | |
| 90982-09008 note |
Fuse, Fuse Block
1997-12 → —
|
NHW1# | ¥80 | |
| 90982-09009 note |
Fuse, Fuse Block
1997-12 → —
|
NHW1# | ¥70 | |
| 90982-09010 note |
Fuse, Fuse Block
1997-12 → —
|
NHW1# | ¥70 | |
| 90982-09011 note |
Fuse, Fuse Block
1997-12 → 2000-05
ended
|
NHW10 | ¥70 | |
| 90982-09012 note |
Fuse, Fuse Block
1997-12 → —
|
NHW1# | ¥80 | |
| 90982-09013 note |
Fuse, Fuse Block
1997-12 → —
|
NHW1# | ¥70 | |
| 82620A — Block Assy, Fusible Link | ||||
| 82620-47020 |
Block Assy, Fusible Link
1997-12 → 2000-05
ended
|
NHW10 | ¥5,200 | |
| 82620-47030 |
Block Assy, Fusible Link
2000-05 → —
|
NHW11 | ¥4,760 | |
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-47010 |
Gage Assy, Fuel Sender
1997-12 → —
|
NHW1# | ¥4,330 | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-46020 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1997-12 → 1999-06
ended
|
NHW10 | ¥1,070 | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1999-06 → —
|
NHW1# | ¥660 | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-33071 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1997-12 → 1999-06
ended
|
NHW10 | ¥1,070 | |
| 84231-53010 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1999-06 → —
|
NHW1# | ¥660 | |
| 84236 — Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84231-12130 |
Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1997-12 → —
|
NHW1# | ¥890 | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84030-47010 |
Switch Assy, Power Window Regulator
1997-12 → —
|
NHW1# | ¥5,300 | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84030-47010 |
Switch Assy, Power Window Regulator, Rear
1997-12 → —
|
NHW1# | ¥5,300 | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84040-47010 |
Master Switch Assy, Power Window Regulator
1997-12 → —
|
NHW1# | ¥24,700 | |
| 87130F — Relay, Battery Blower, NO.1 | ||||
| 90987-02012 |
Relay, Battery Blower, NO.1
1997-12 → 2001-02
ended
|
NHW1# | ¥2,930 | |
| 90987-02020 |
Relay, Battery Blower, NO.1
2001-02 → —
|
NHW11 | ¥4,660 | |
| 89465 — Sensor, Oxygen | ||||
| 89465-47010 note |
Sensor, Oxygen
1997-12 → 2000-05
ended
|
NHW10 | ¥9,000 | |
| 89465-47020 note |
Sensor, Oxygen
1997-12 → 2000-05
ended
|
NHW10 | ¥10,700 | |
| 89465-47030 note |
Sensor, Oxygen
2000-05 → —
|
NHW11 | ¥10,700 | |
| 89465-47040 note |
Sensor, Oxygen
2000-05 → —
|
NHW11 | ¥10,700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
