Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

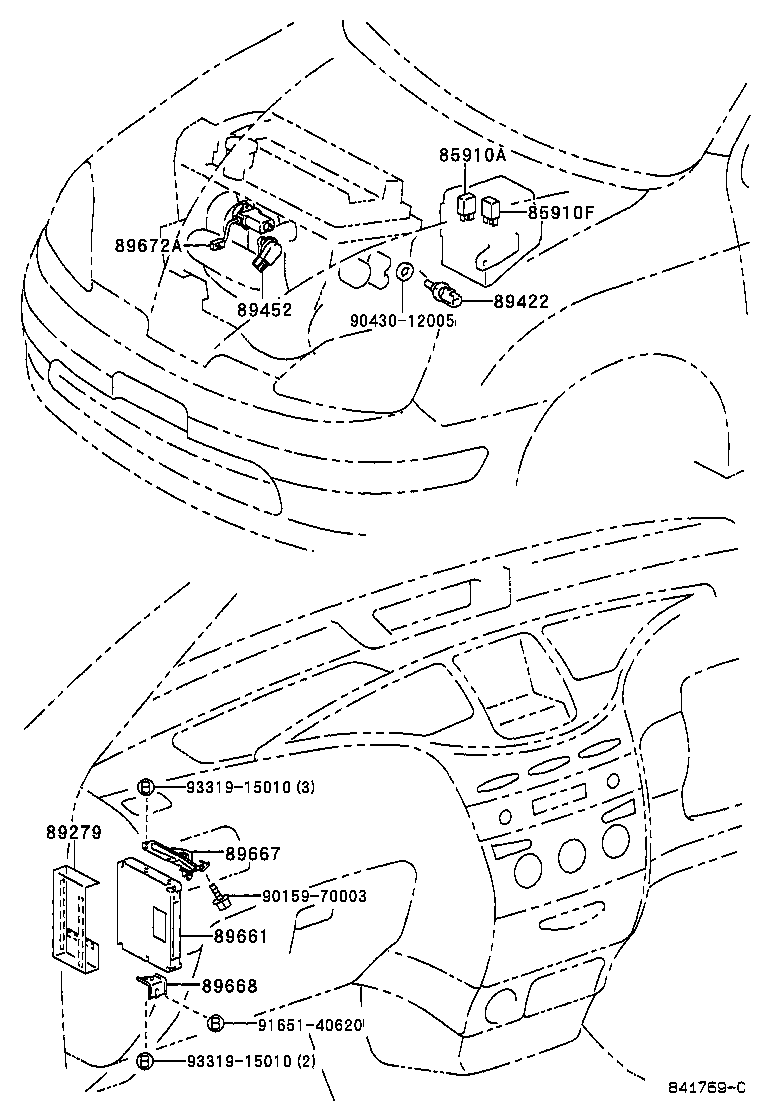

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85910A — Relay Assy, Circuit Opening (FOR EFI) | ||||
| 90987-02012 |
Relay Assy, Circuit Opening (FOR EFI)
1997-12 → —
|
NHW1# | ¥2,930 | |
| 85910F — Relay, Computer (FOR EFI) | ||||
| 90987-02012 |
Relay, Computer (FOR EFI)
1997-12 → —
|
NHW1# | ¥2,930 | |
| 89279 — Cover, Engine Control Computer | ||||
| 89279-47020 |
Cover, Engine Control Computer
1997-12 → 2000-05
ended
|
NHW10 | ¥0 | |
| 89279-47040 |
Cover, Engine Control Computer
2000-05 → —
|
NHW11 | ¥1,560 | |
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-35010 |
Sensor, Water Temperature (FOR E.F.I.)
1997-12 → —
|
NHW1# | ¥2,670 | |
| 89452 — Sensor, Throttle Position (FOR E.F.I.) | ||||
| 89452-30140 |
Sensor, Throttle Position (FOR E.F.I.)
1997-12 → 2000-05
ended
|
NHW10 | ¥13,400 | |
| 89452-30150 |
Sensor, Throttle Position (FOR E.F.I.)
2000-05 → —
|
NHW11 | ¥13,400 | |
| 89661 — Computer, Engine Control | ||||
| 89661-47010 note |
Computer, Engine Control
1997-12 → 2000-05
ended
|
NHW10 | ¥102,000 | |
| 89661-47020 note |
Computer, Engine Control
2000-05 → —
|
NHW11 | ¥108,000 | |
| 89667 — Bracket, Engine Control Computer | ||||
| 89667-47010 |
Bracket, Engine Control Computer
1997-12 → —
|
NHW1# | ¥750 | |
| 89668 — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-47010 |
Bracket, Engine Control Computer, NO.2
1997-12 → —
|
NHW1# | ¥510 | |
| 89672A — Motor, Throttle Control | ||||
| 89672-47010 |
Motor, Throttle Control
1997-12 → 2000-05
ended
|
NHW10 | ¥22,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
