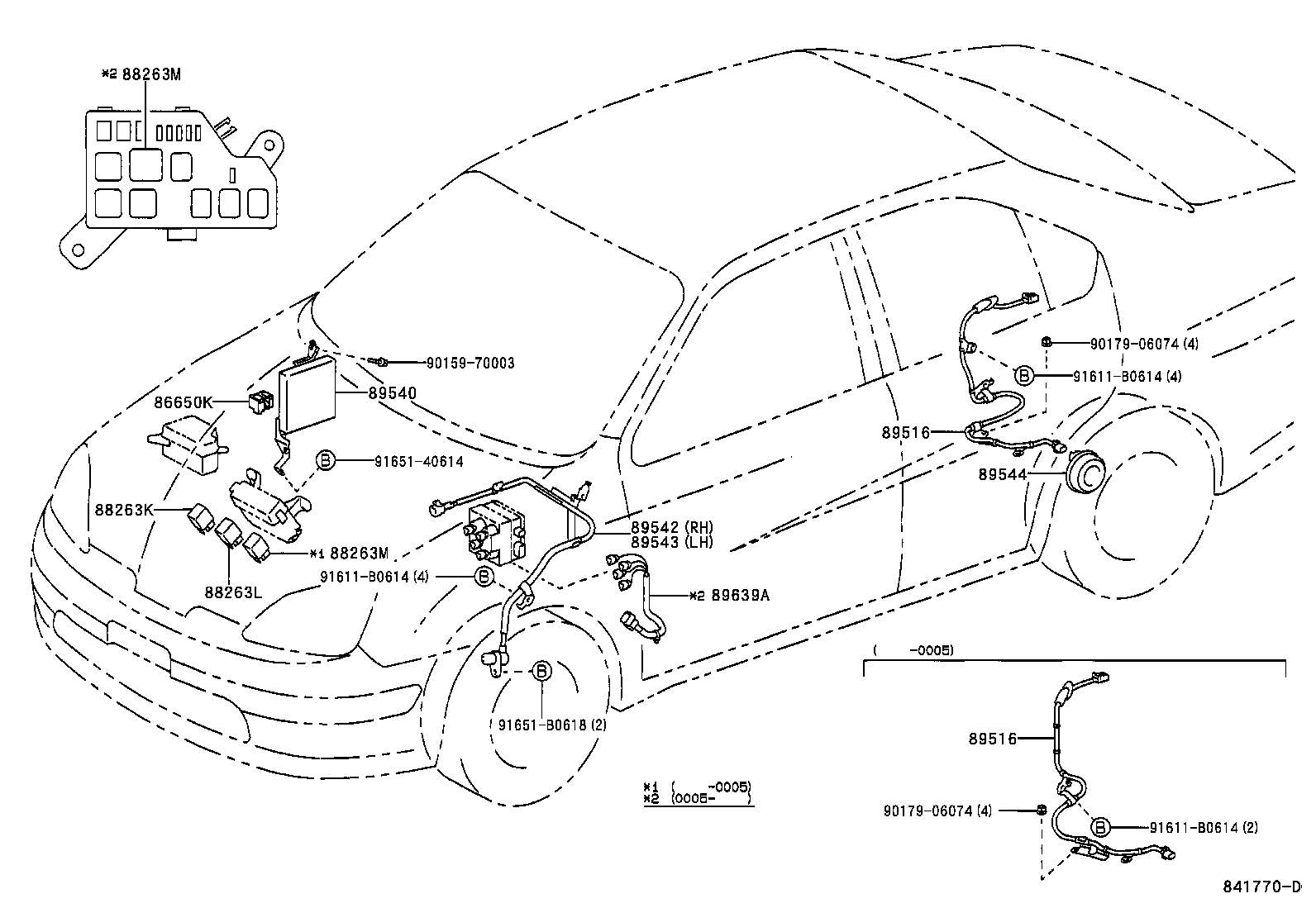

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

17 parts on this figure

Part number	Description	Fitment	Price
86650K — Buzzer Assy, Skid Control
86650-30180	Buzzer Assy, Skid Control 1997-12 → —	NHW1#	¥2,930
88263K — Relay, Hydro Motor, NO.1
89633-24010	Relay, Hydro Motor, NO.1 1997-12 → —	NHW1#	¥3,870
88263L — Relay, Hydro Motor, NO.2
88263-24020	Relay, Hydro Motor, NO.2 1997-12 → —	NHW1#	¥3,890
88263M — Relay, Abs Solenoid
88263-24030	Relay, Abs Solenoid 1997-12 → —	NHW1#	¥3,890
89516 — Wire, Skid Control Sensor
89516-47010 note	Wire, Skid Control Sensor 1997-12 → 2000-05 ended	NHW10	¥3,480
89516-47020 note	Wire, Skid Control Sensor 1997-12 → 2000-05 ended	NHW10	¥3,480
89516-47030 note	Wire, Skid Control Sensor 2000-05 → —	NHW11	¥4,270
89516-47040 note	Wire, Skid Control Sensor 2000-05 → —	NHW11	¥4,270
89540 — Computer Assy, Skid Control
89540-47010	Computer Assy, Skid Control 1997-12 → 2000-04 ended	NHW10	¥60,000
89540-47011	Computer Assy, Skid Control 2000-04 → 2000-05 ended	NHW10	¥60,000
89540-47020 note	Computer Assy, Skid Control 2001-08 → —	NHW11	¥103,000
89540-47040 note	Computer Assy, Skid Control 2000-05 → —	NHW11	¥103,000
89542 — Sensor, Speed, Front RH
89542-47010	Sensor, Speed, Front RH 1997-12 → —	NHW1#	¥21,700
89543 — Sensor, Speed, Front LH
89543-47010	Sensor, Speed, Front LH 1997-12 → —	NHW1#	¥21,700
89544 — Sensor, Skid Control
89544-47010	Sensor, Skid Control 1997-12 → 2000-05 ended	NHW10	¥13,500
89544-52020	Sensor, Skid Control 2000-05 → —	NHW11	¥13,500
89639A — Wire, Brake Control
89639-47030	Wire, Brake Control 2000-05 → —	NHW11	¥2,860

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
