Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

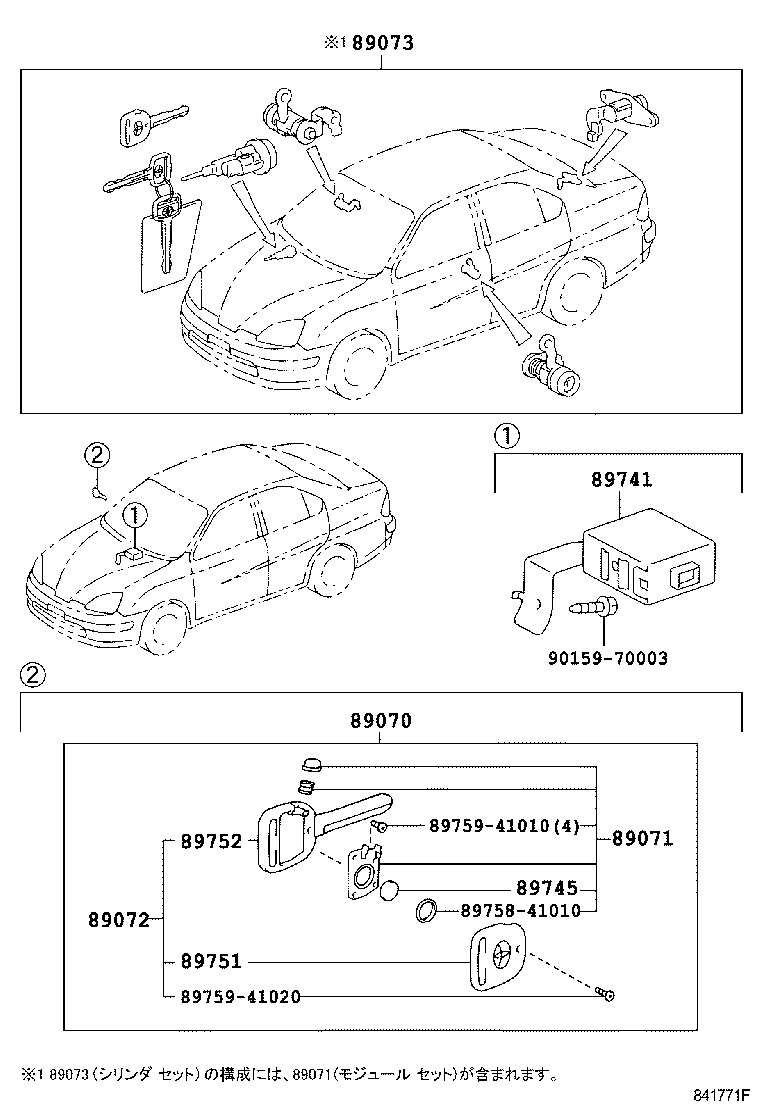

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

15 parts on this figure

Part number	Description	Fitment	Price
89070 — Transmitter Assy, Door Control
89070-47020	Transmitter Assy, Door Control 1997-12 → 2000-05 ended	NHW10	¥16,000
89070-47090	Transmitter Assy, Door Control 2000-05 → —	NHW11	¥16,000
89071 — Module Set, Transmitter Sub-assy, Door Control
89071-47010	Module Set, Transmitter Sub-assy, Door Control 1997-12 → 2000-05 ended	NHW10	¥13,000
89071-52010	Module Set, Transmitter Sub-assy, Door Control 2000-05 → —	NHW11	¥13,000
89072 — Housing Set, Door Control Transmitter
89072-47020	Housing Set, Door Control Transmitter 1997-12 → 2000-05 ended	NHW10	¥3,690
89072-47020	Housing Set, Door Control Transmitter 2000-05 → —	NHW11	¥3,690
89073 — Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073-47010	Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) 1997-12 → 2000-05 ended	NHW10	¥31,700
89073-47070	Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) 2000-05 → —	NHW11	¥20,600
89741 — Receiver, Door Control
89741-47010	Receiver, Door Control 1997-12 → 2000-05 ended	NHW10	¥34,700
89741-47030	Receiver, Door Control 2000-05 → —	NHW11	¥34,700
89745 — Battery, Transmitter
89745-41010	Battery, Transmitter 1997-12 → —	NHW1#	¥440
89751 — Cover, Transmitter Housing
89751-44010	Cover, Transmitter Housing 1997-12 → 2000-05 ended	NHW10	¥940
89751-44010	Cover, Transmitter Housing 2000-05 → —	NHW11	¥940
89752 — Case, Transmitter Housing
89752-46020	Case, Transmitter Housing 1997-12 → 2000-05 ended	NHW10	¥2,760
89752-46020	Case, Transmitter Housing 2000-05 → —	NHW11	¥2,760

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
