Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

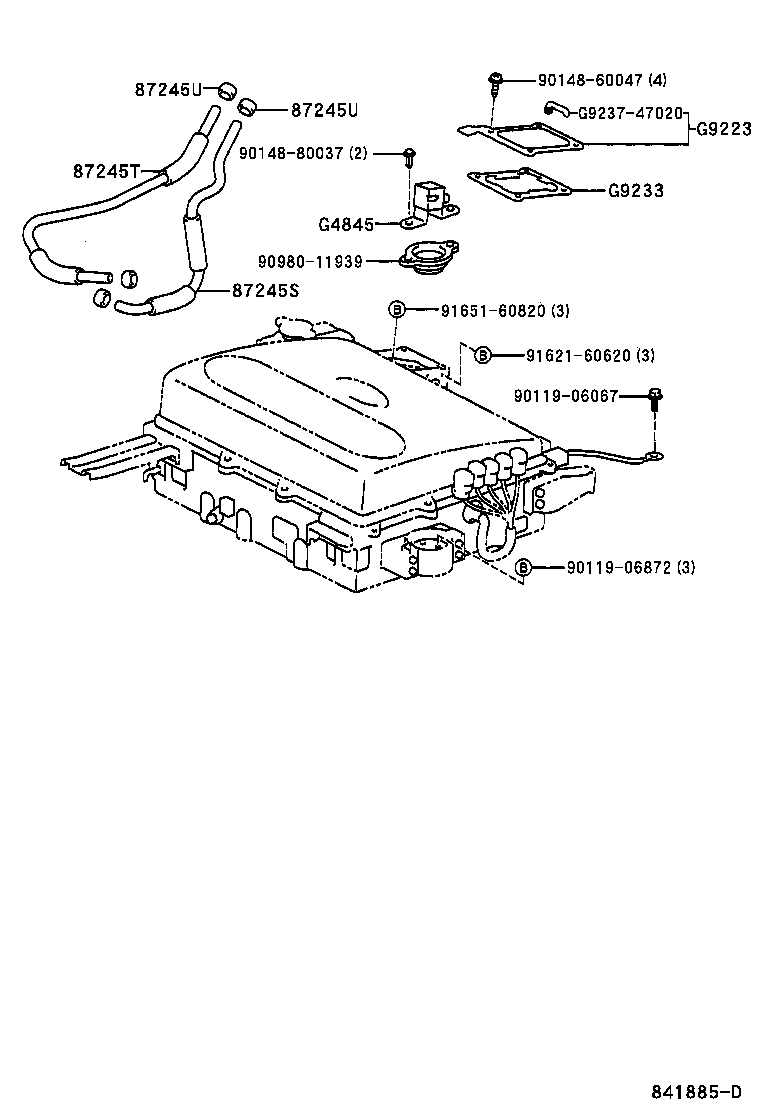

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87245S — Hose, Inverter Water, NO.1 | ||||
| 87245-47060 |
Hose, Inverter Water, NO.1
1997-12 → 2000-05
ended
|
NHW10 | ¥880 | |
| 87245-47160 |
Hose, Inverter Water, NO.1
2000-05 → —
|
NHW11 | ¥910 | |
| 87245T — Hose, Inverter Water, NO.2 | ||||
| 87245-47070 |
Hose, Inverter Water, NO.2
1997-12 → 2000-05
ended
|
NHW10 | ¥810 | |
| 87245-47170 |
Hose, Inverter Water, NO.2
2000-05 → —
|
NHW11 | ¥390 | |
| 87245U — Clamp OR Clip (FOR WATER HOSE) | ||||
| 90467-11009 |
Clamp OR Clip (FOR WATER HOSE)
1997-12 → 2002-04
ended
|
NHW1# | ¥260 | |
| 96135-51100 |
Clamp OR Clip (FOR WATER HOSE)
2002-04 → —
|
NHW11 | ¥130 | |
| G4845 — Sensor, Circuit Breaker, NO.1 | ||||
| G4845-47010 |
Sensor, Circuit Breaker, NO.1
1997-12 → —
|
NHW1# | ¥9,900 | |
| G9223 — Cover, Inverter Terminal | ||||
| G9203-47010 |
Cover, Inverter Terminal
1997-12 → 2000-05
ended
|
NHW10 | ¥2,230 | |
| G9203-47020 |
Cover, Inverter Terminal
2000-05 → —
|
NHW11 | ¥2,230 | |
| G9233 — Gasket, Inverter Terminal | ||||
| G9233-47010 |
Gasket, Inverter Terminal
1997-12 → 2000-05
ended
|
NHW10 | ¥400 | |
| G9233-47020 |
Gasket, Inverter Terminal
2000-05 → —
|
NHW11 | ¥400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
