Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

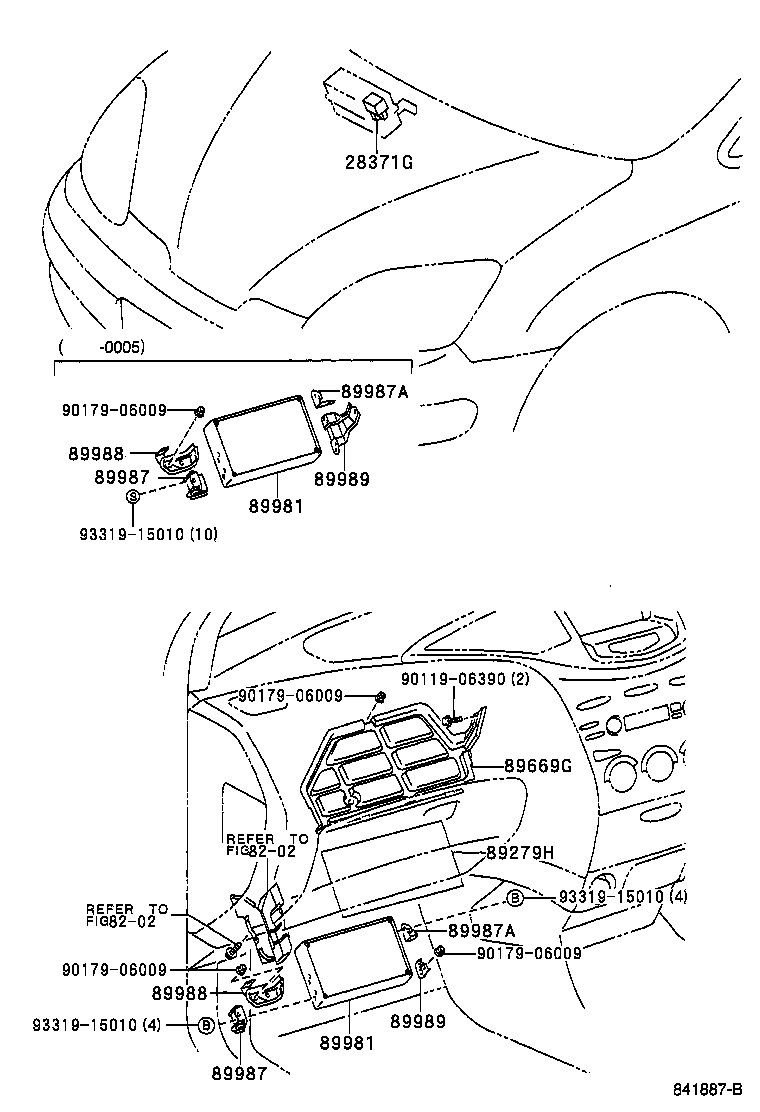

Exploded illustration 841887B 28371G — RELAY, IGNITION CONTACT (1 parts) 89987A — BRACKET, COMPUTER (3 parts) 9017906009 — not listed in this catalogue 89988 — BRACKET, COMPUTER, NO.2 (2 parts) 89987 — BRACKET, COMPUTER, NO.1 (2 parts) 89989 — BRACKET, COMPUTER, NO.3 (2 parts) 89981 — COMPUTER, HYBRID VEHICLE CONTROL (4 parts) 9331915010 — not listed in this catalogue 9011906390 — not listed in this catalogue 9017906009 — not listed in this catalogue 89669G — BRACKET, HYBRID VEHICLE CONTROL (1 parts) 8202 — not listed in this catalogue 89279H — COVER, COMPUTER (2 parts) 9331915010 — not listed in this catalogue 8202 — not listed in this catalogue 89987A — BRACKET, COMPUTER (3 parts) 9017906009 — not listed in this catalogue 9017906009 — not listed in this catalogue 89988 — BRACKET, COMPUTER, NO.2 (2 parts) 89989 — BRACKET, COMPUTER, NO.3 (2 parts) 9331915010 — not listed in this catalogue 89981 — COMPUTER, HYBRID VEHICLE CONTROL (4 parts) 89987 — BRACKET, COMPUTER, NO.1 (2 parts)
841887B · 13 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
28371G — Relay, Ignition Contact
90987-02012 Relay, Ignition Contact
1997-12 → —
1NZFXE NHW1# ¥2,930
89279H — Cover, Computer
89279-47010 Cover, Computer
1997-12 → 2000-05 ended
NHW10 ¥790
89279-47030 Cover, Computer
2000-05 → —
NHW11 ¥1,410
89669G — Bracket, Hybrid Vehicle Control
89669-47010 Bracket, Hybrid Vehicle Control
1997-12 → —
NHW1# ¥6,800
89981 — Computer, Hybrid Vehicle Control
89981-47010 Computer, Hybrid Vehicle Control
1997-12 → 2000-05 ended
NHW10 ¥211,000
89981-47020 Computer, Hybrid Vehicle Control
2000-05 → 2001-08 ended
NHW11 ¥187,000
89981-47021 Computer, Hybrid Vehicle Control
2001-08 → 2002-08 ended
NHW11 ¥187,000
89981-47022 Computer, Hybrid Vehicle Control
2002-08 → —
NHW11 ¥187,000
89987 — Bracket, Computer, NO.1
89987-47010 Bracket, Computer, NO.1
1997-12 → 2000-05 ended
NHW10 ¥740
89987-47030 Bracket, Computer, NO.1
2000-05 → —
NHW11 ¥540
89987A — Bracket, Computer
89987-47020 Bracket, Computer
1997-12 → 1999-05 ended
NHW10 ¥340
89987-47021 Bracket, Computer
1999-05 → 2000-05 ended
NHW10 ¥340
89987-47050 Bracket, Computer
2000-05 → —
NHW11 ¥350
89988 — Bracket, Computer, NO.2
89988-47010 Bracket, Computer, NO.2
1997-12 → 2000-05 ended
NHW10 ¥910
89988-47020 Bracket, Computer, NO.2
2000-05 → —
NHW11 ¥880
89989 — Bracket, Computer, NO.3
89989-47010 Bracket, Computer, NO.3
1997-12 → 2000-05 ended
NHW10 ¥1,090
89989-47020 Bracket, Computer, NO.3
2000-05 → —
NHW11 ¥380
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
