Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

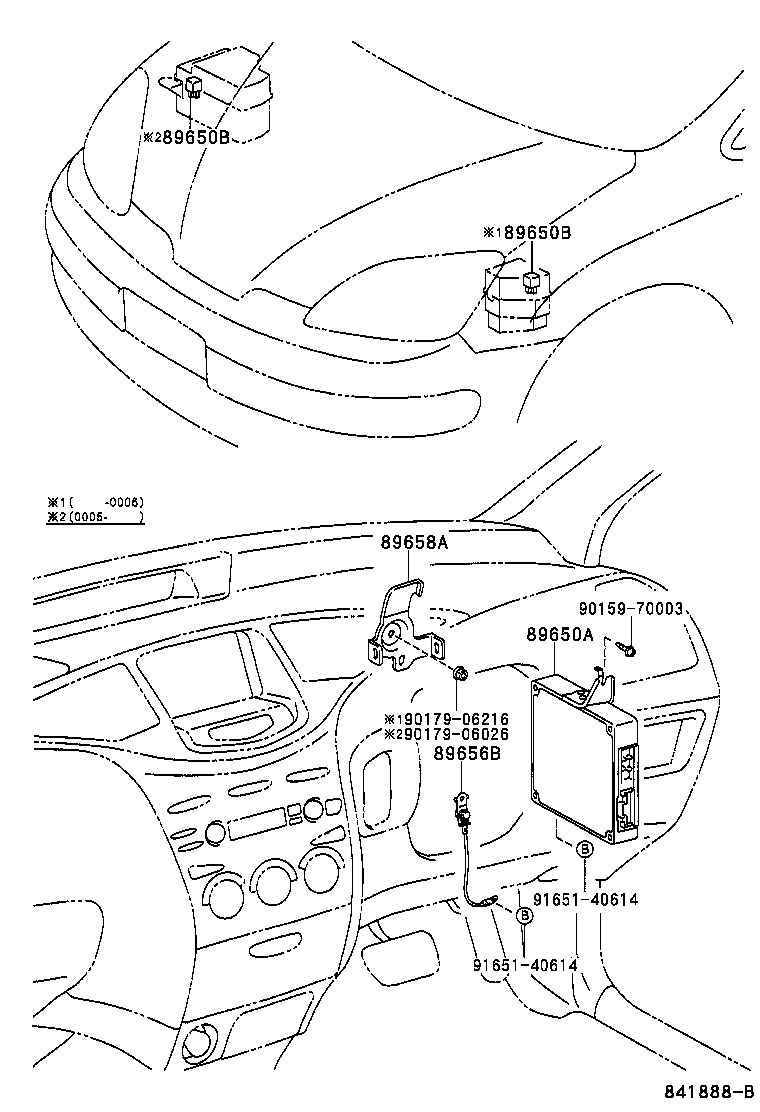

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89650A — Computer Assy, Power Steering | ||||
| 89650-47010 |
Computer Assy, Power Steering
1997-12 → 1999-05
ended
|
NHW10 | ¥49,200 | |
| 89650-47011 |
Computer Assy, Power Steering
1999-05 → 2000-05
ended
|
NHW10 | ¥49,200 | |
| 89650-47020 |
Computer Assy, Power Steering
2000-05 → 2000-09
ended
|
NHW11 | ¥49,200 | |
| 89650-47021 |
Computer Assy, Power Steering
2000-09 → 2001-09
ended
|
NHW11 | ¥49,200 | |
| 89650-47022 |
Computer Assy, Power Steering
2001-09 → 2003-02
ended
|
NHW11 | ¥49,200 | |
| 89650-47023 |
Computer Assy, Power Steering
2003-02 → —
|
NHW11 | ¥49,200 | |
| 89650B — Relay, Power Steering | ||||
| 90987-02006 |
Relay, Power Steering
1997-12 → 2000-05
ended
|
NHW10 | ¥2,560 | |
| 90987-02016 |
Relay, Power Steering
2000-05 → —
|
NHW11 | ¥4,670 | |
| 89656B — Wire, Power Steering Earth | ||||
| 89656-47010 |
Wire, Power Steering Earth
1997-12 → —
|
NHW1# | ¥920 | |
| 89658A — Bracket, Power Steering Computer | ||||
| 89658-47010 |
Bracket, Power Steering Computer
1997-12 → —
|
NHW1# | ¥910 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
