Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

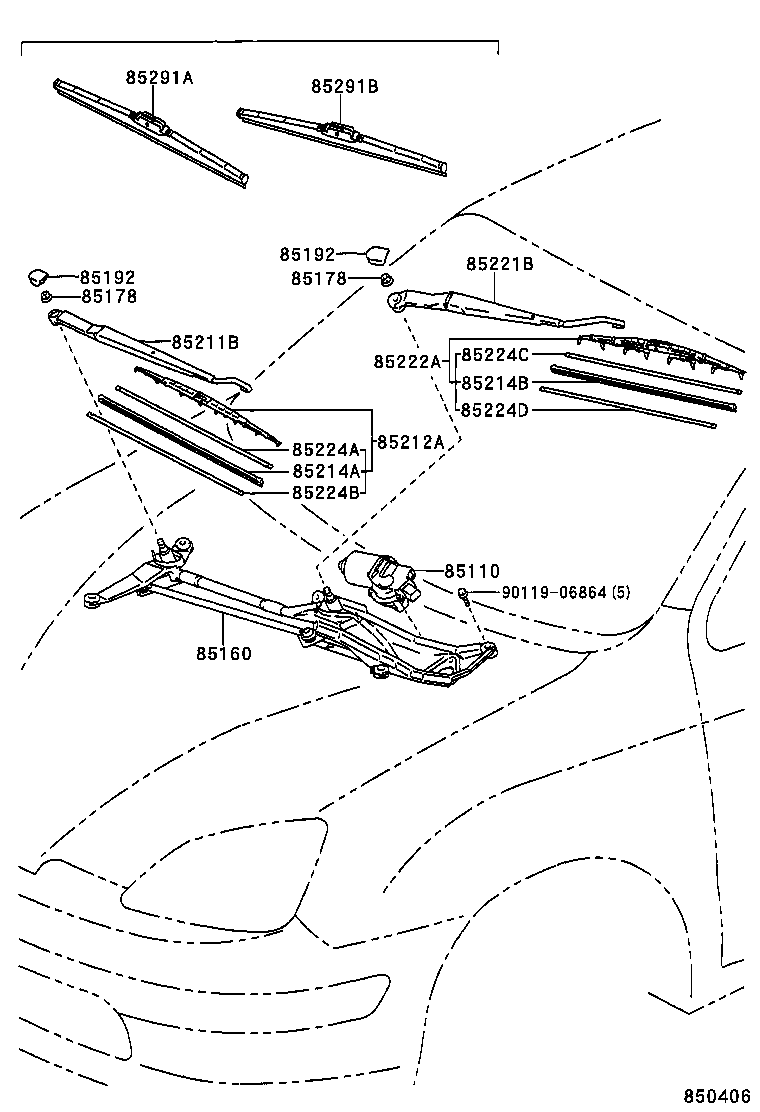

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-47010 |
Motor Assy, Windshield Wiper
1997-12 → —
|
NHW1# | ¥30,300 | |
| 85110-47020 note |
Motor Assy, Windshield Wiper
1997-12 → —
|
NHW1# | ¥30,500 | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85150-47010 |
Link Assy, Windshield Wiper
1997-12 → —
|
NHW1# | ¥11,300 | |
| 85150-47020 note |
Link Assy, Windshield Wiper
1998-08 → —
|
NHW1# | ¥11,300 | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-10223 |
Nut (FOR FRONT WIPER ARM SETTING)
1997-12 → —
|
NHW1# | ¥100 | |
| 85192 — Cover, Windshield Wiper Arm | ||||
| 85292-13010 |
Cover, Windshield Wiper Arm
1997-12 → —
|
NHW1# | ¥250 | |
| 85211B — Arm, Front Wiper, RH | ||||
| 85211-47010 |
Arm, Front Wiper, RH
1997-12 → —
|
NHW1# | ¥5,300 | |
| 85212A — Blade, FR Wiper, RH | ||||
| 85212-13010 |
Blade, FR Wiper, RH
2002-07 → —
|
NHW11 | ¥4,260 | |
| 85212-44010 |
Blade, FR Wiper, RH
1997-12 → 2002-07
ended
|
NHW1# | ¥4,260 | |
| 85214A — Rubber, Wiper, RH | ||||
| 85214-44010 |
Rubber, Wiper, RH
1997-12 → 2001-06
ended
|
NHW1# | ¥960 | |
| 85214-50120 |
Rubber, Wiper, RH
2001-06 → —
|
NHW11 | ¥1,090 | |
| 85214B — Rubber, Wiper, LH | ||||
| 85214-44020 |
Rubber, Wiper, LH
1997-12 → 2001-06
ended
|
NHW1# | ¥830 | |
| 85214-50130 |
Rubber, Wiper, LH
2001-06 → —
|
NHW11 | ¥960 | |
| 85221B — Arm, Front Wiper, LH | ||||
| 85221-47010 |
Arm, Front Wiper, LH
1997-12 → —
|
NHW1# | ¥6,000 | |
| 85222A — Blade, FR Wiper, LH | ||||
| 85222-44010 |
Blade, FR Wiper, LH
1997-12 → 2002-07
ended
|
NHW1# | ¥2,090 | |
| 85222-50070 |
Blade, FR Wiper, LH
2002-07 → —
|
NHW11 | ¥2,090 | |
| 85224A — Plate, Wiper Rubber Backing, NO.1 | ||||
| 85224-44010 |
Plate, Wiper Rubber Backing, NO.1
1997-12 → —
|
NHW1# | ¥480 | |
| 85224B — Plate, Wiper Rubber Backing, NO.2 | ||||
| 85224-44010 |
Plate, Wiper Rubber Backing, NO.2
1997-12 → —
|
NHW1# | ¥480 | |
| 85224C — Plate, Wiper Rubber Backing, NO.3 | ||||
| 85224-44020 |
Plate, Wiper Rubber Backing, NO.3
1997-12 → —
|
NHW1# | ¥220 | |
| 85224D — Plate, Wiper Rubber Backing, NO.4 | ||||
| 85224-44020 |
Plate, Wiper Rubber Backing, NO.4
1997-12 → —
|
NHW1# | ¥220 | |
| 85291A — Blade, Front Wiper, Winter, RH | ||||
| 85291-13030 note |
Blade, Front Wiper, Winter, RH
1997-12 → —
|
NHW1# | ¥7,300 | |
| 85291-13040 note |
Blade, Front Wiper, Winter, RH
1997-12 → —
|
NHW1# | ¥8,800 | |
| 85291B — Blade, Front Wiper, Winter, LH | ||||
| 85291-60060 |
Blade, Front Wiper, Winter, LH
1997-12 → —
|
NHW1# | ¥3,960 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
