Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

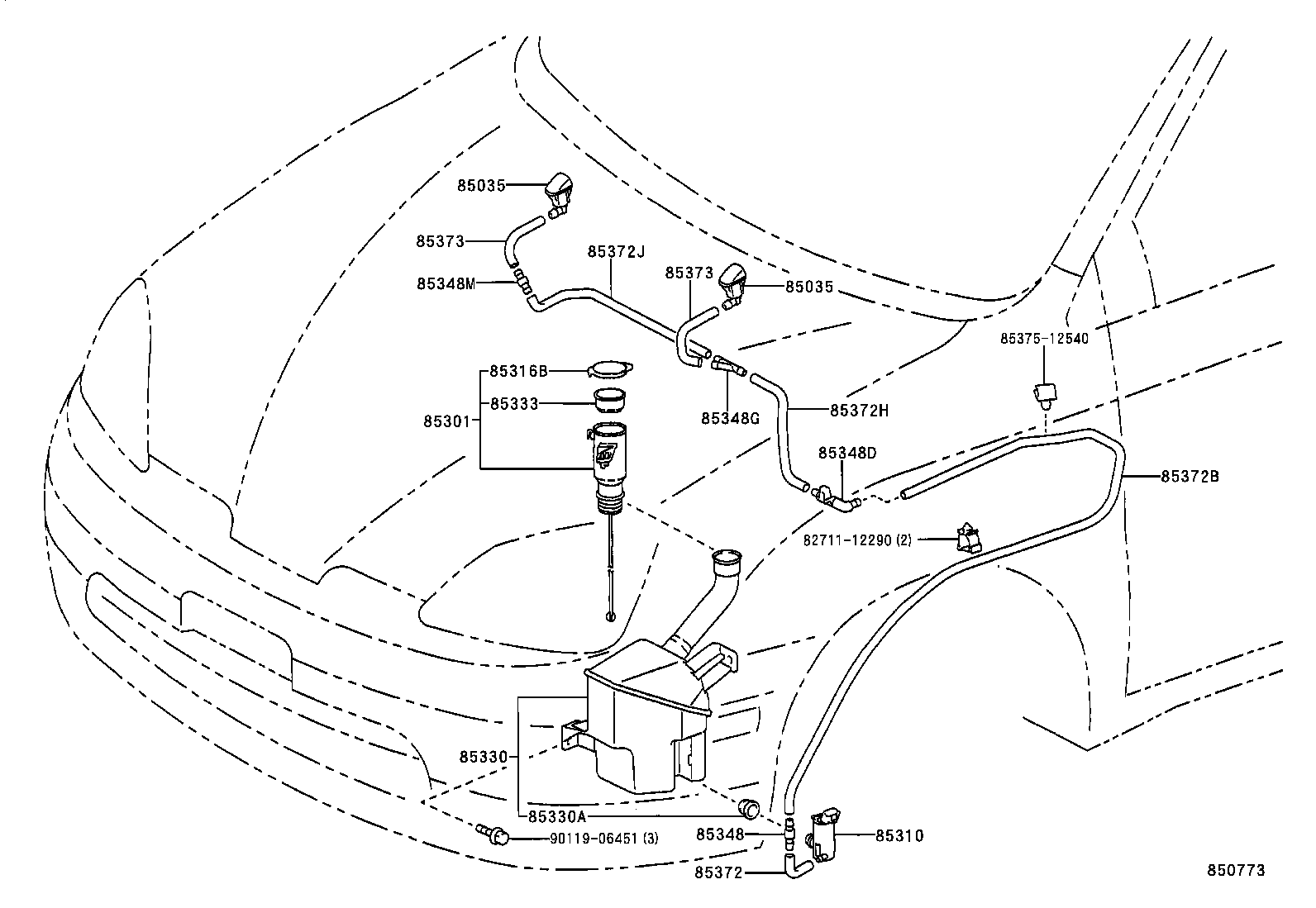

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85035 — Nozzle Sub-assy, Washer | ||||
| 85381-47010 |
Nozzle Sub-assy, Washer
2000-05 → —
|
NHW11 | — | |
| 85385-47010 |
Nozzle Sub-assy, Washer
1997-12 → 2000-05
ended
|
NHW10 | — | |
| 85301 — Inlet Sub-assy, Washer | ||||
| 85301-47020 |
Inlet Sub-assy, Washer
2000-05 → —
|
NHW11 | — | |
| 85310 — Motor And Pump Assy, Windshield Washer | ||||
| 85330-10280 |
Motor And Pump Assy, Windshield Washer
1997-12 → —
|
NHW1# | ¥0 | |
| 85316B — Cap, Washer, Inlet | ||||
| 85316-42011 |
Cap, Washer, Inlet
2000-05 → —
|
NHW11 | — | |
| 85330 — Jar Assy, Windshield Washer | ||||
| 85315-47010 |
Jar Assy, Windshield Washer
1997-12 → 2000-05
ended
|
NHW10 | — | |
| 85315-47030 |
Jar Assy, Windshield Washer
2000-05 → —
|
NHW11 | — | |
| 85330A — Bush, Windshield Washer Jar | ||||
| 90099-32089 |
Bush, Windshield Washer Jar
1997-12 → —
|
NHW1# | — | |
| 85333 — Filter, Windshield Washer Jar | ||||
| 85312-47010 |
Filter, Windshield Washer Jar
2000-05 → —
|
NHW11 | — | |
| 85348 — Joint, Windshield Washer Hose, NO.1 | ||||
| 85349-89122 |
Joint, Windshield Washer Hose, NO.1
1997-12 → —
|
NHW1# | — | |
| 85348D — Joint, Windshield Washer Elbow, NO.1 | ||||
| 85375-16160 |
Joint, Windshield Washer Elbow, NO.1
2000-05 → —
|
NHW11 | ¥0 | |
| 85378-12480 |
Joint, Windshield Washer Elbow, NO.1
1997-12 → 2000-05
ended
|
NHW10 | — | |
| 85348G — Joint, Windshield Washer Hose, NO.2 | ||||
| 85348-12250 |
Joint, Windshield Washer Hose, NO.2
1997-12 → 2000-05
ended
|
NHW10 | — | |
| 85378-60350 |
Joint, Windshield Washer Hose, NO.2
2000-05 → —
|
NHW11 | ¥300 | |
| 85348M — Joint, Windshield Washer Hose, NO.3 | ||||
| 85349-89122 |
Joint, Windshield Washer Hose, NO.3
1997-12 → —
|
NHW1# | — | |
| 85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2000-05 → —
|
NHW11 | — | |
| 90446-07001 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1997-12 → 2000-05
ended
|
NHW10 | — | |
| 85372B — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-07001 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1997-12 → 2000-05
ended
|
NHW10 | — | |
| 90446-07001 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
2000-05 → —
|
NHW11 | — | |
| 85372H — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
2000-05 → —
|
NHW11 | — | |
| 90446-07004 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
1997-12 → 2000-05
ended
|
NHW10 | — | |
| 85372J — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
2000-05 → —
|
NHW11 | — | |
| 85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 note |
Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1997-12 → —
|
NHW1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
