Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

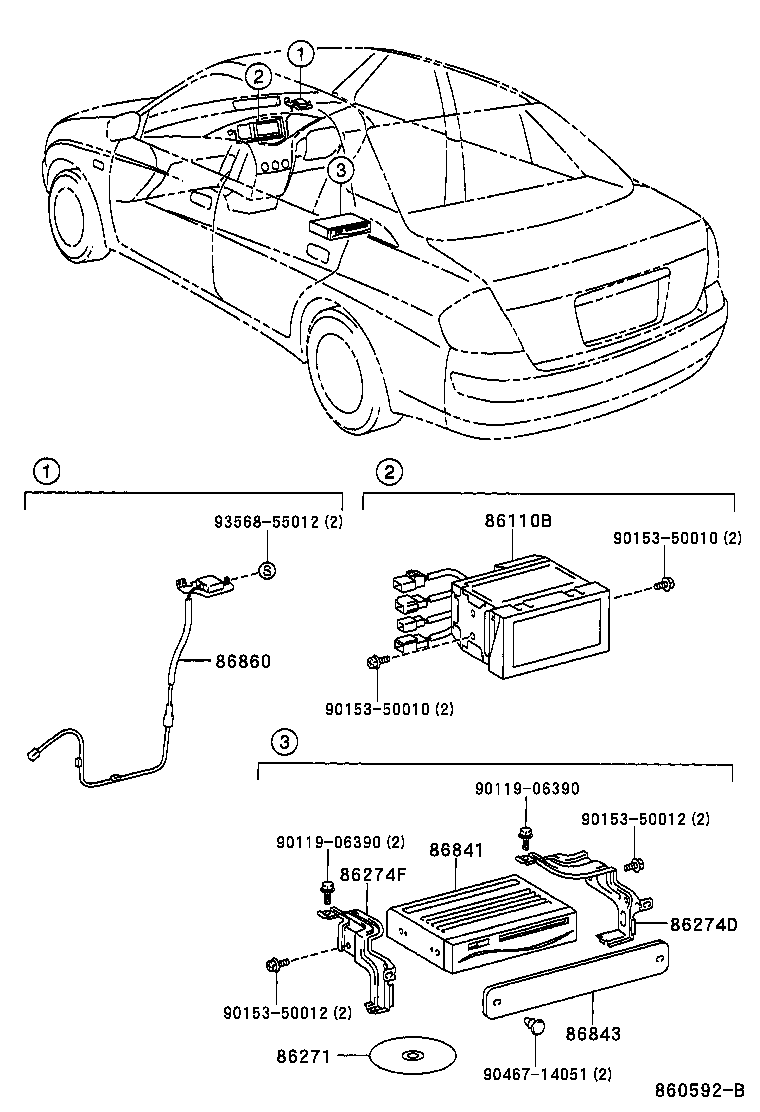

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86110B — Multi-display Assy | ||||
| 86110-47010 note |
Multi-display Assy
1997-12 → 2000-05
ended
|
NHW10 | ¥182,000 | |
| 86110-47020 note |
Multi-display Assy
2000-05 → —
|
NHW11 | ¥249,000 | |
| 86271 — Disc, Disc Player | ||||
| 86271-30470 |
Disc, Disc Player
2000-05 → 2001-08
ended
|
NHW11 | ¥25,000 | |
| 86271-33011 |
Disc, Disc Player
1997-12 → 2000-05
ended
|
NHW10 | ¥23,900 | |
| 86271-44020 |
Disc, Disc Player
2001-08 → —
|
NHW11 | ¥25,000 | |
| 86274D — Bracket, Disc Player | ||||
| 86274-47010 |
Bracket, Disc Player
1997-12 → 2000-05
ended
|
NHW10 | ¥3,320 | |
| 86274-47030 |
Bracket, Disc Player
2000-05 → —
|
NHW11 | ¥1,020 | |
| 86274F — Bracket, Disc Player, NO.2 | ||||
| 86274-47020 |
Bracket, Disc Player, NO.2
1997-12 → 2000-05
ended
|
NHW10 | ¥1,960 | |
| 86274-47040 |
Bracket, Disc Player, NO.2
2000-05 → —
|
NHW11 | ¥930 | |
| 86841 — Computer, Navigation | ||||
| 86841-30081 |
Computer, Navigation
2000-05 → 2001-08
ended
|
NHW11 | ¥249,000 | |
| 86841-44010 |
Computer, Navigation
2001-08 → —
|
NHW11 | ¥309,000 | |
| 86841-47010 |
Computer, Navigation
1997-12 → 2000-05
ended
|
NHW10 | ¥309,000 | |
| 86843 — Cover, Navigation Computer | ||||
| 86843-47010 |
Cover, Navigation Computer
1997-12 → —
|
NHW1# | ¥1,650 | |
| 86860 — Antenna Assy, Navigation | ||||
| 86860-47010 |
Antenna Assy, Navigation
1997-12 → 2000-05
ended
|
NHW10 | ¥37,300 | |
| 86860-47020 |
Antenna Assy, Navigation
2000-05 → 2001-08
ended
|
NHW11 | ¥37,300 | |
| 86860-47040 |
Antenna Assy, Navigation
2001-08 → —
|
NHW11 | ¥37,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
