Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

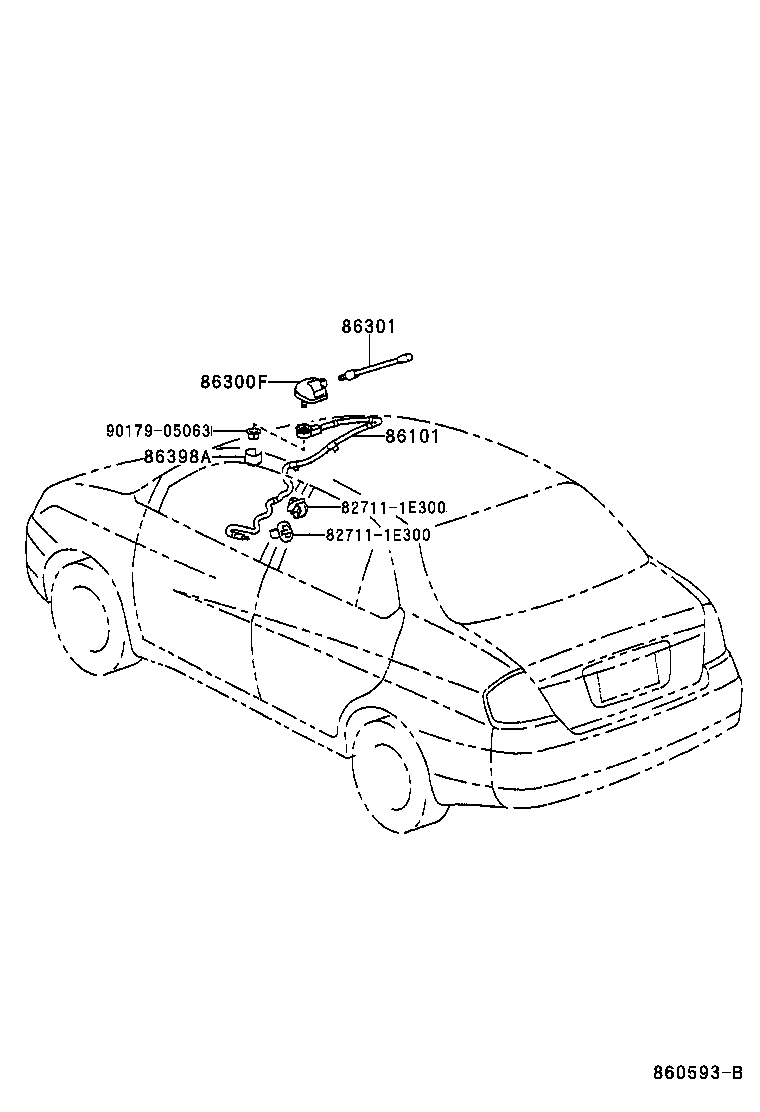

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-47010 |
Cord Sub-assy, Antenna
1997-12 → —
|
NHW1# | ¥3,640 | |
| 86300F — Holder Assy, Antenna (CORD/POLE SEPARATE TYPE) | ||||
| 86300-47010 |
Holder Assy, Antenna (CORD/POLE SEPARATE TYPE)
1997-12 → —
|
NHW1# | ¥4,910 | |
| 86301 — Pole Sub-assy, Antenna | ||||
| 86309-12130 |
Pole Sub-assy, Antenna
1997-12 → —
|
NHW1# | ¥3,250 | |
| 86398A — Cap, Antenna Shield | ||||
| 86398-12010 |
Cap, Antenna Shield
1997-12 → —
|
NHW1# | ¥130 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
